SLT12 User Manual
138

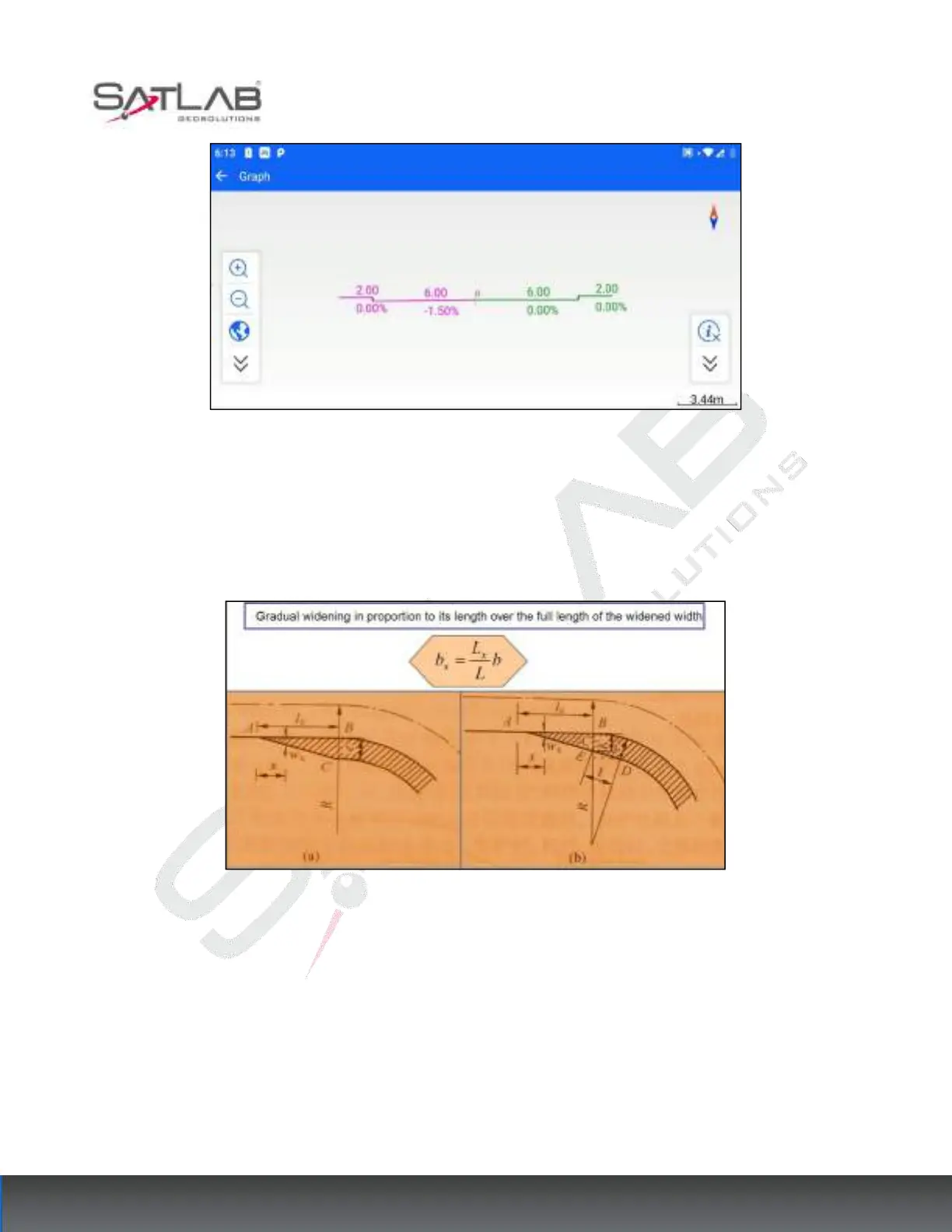

Figure 11- 27
WidePlus
To transition the pavement from the normal width to the curve, a widened width is set so that a widening
mitigation section is required. On the widening mitigation section, the pavement has a gradually changing width.
The setting of widening transition can be used in different ways according to the nature and grade of the road.
Figure 11- 28
In the [WidePlus] section, you can enter the widening change point information according to the design
drawings.
Select the cross-sectional plate that corresponds to the widening effect, and take the motorway widening as an
example here.
The widening is located in the "right-hand motor vehicle" section, entered as follows.
