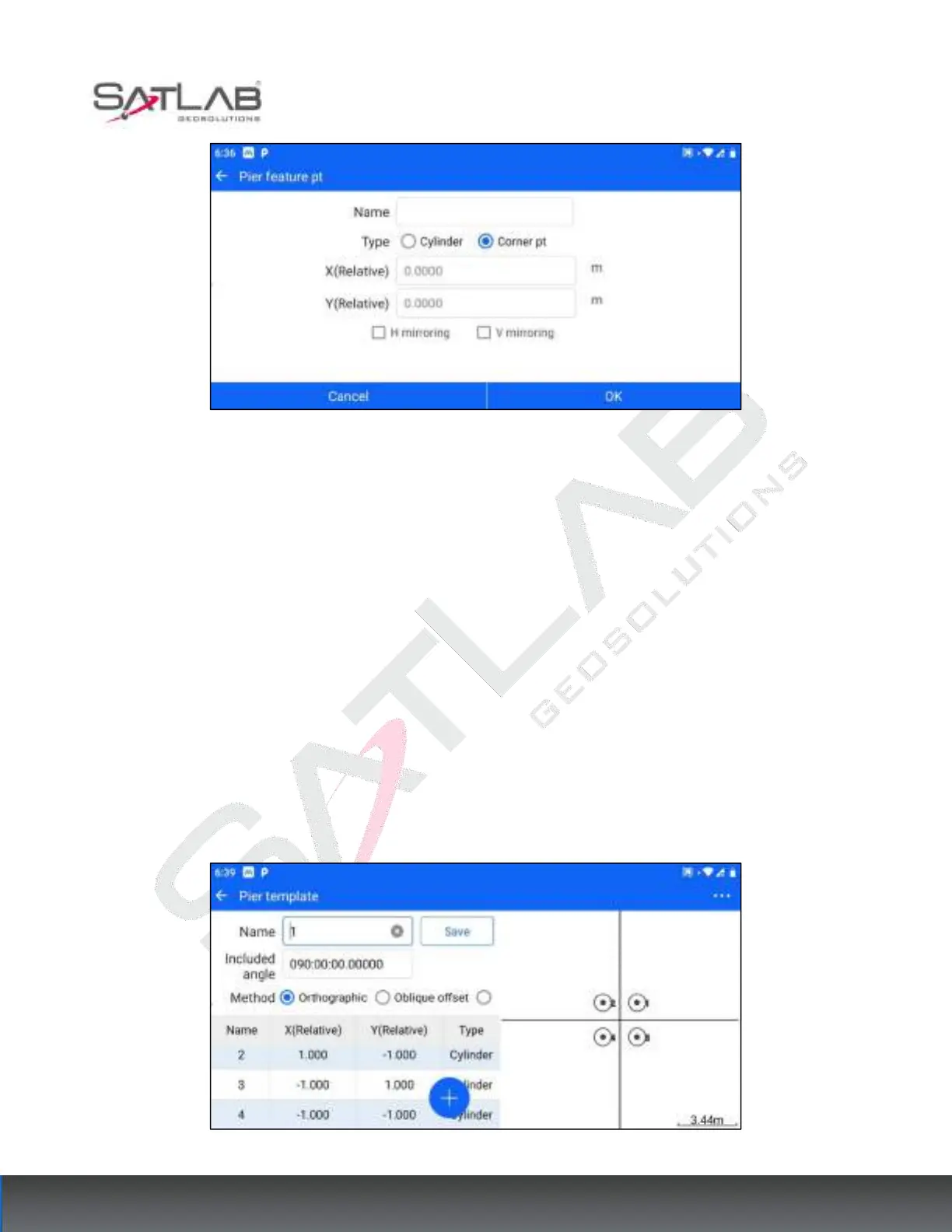

Figure 12- 4
If the feature point type is selected as a corner point, the parameters to be set are point name, vertical coordinate,
and horizontal coordinate.
Only check the "V mirroring": the cross-axis determined by the pier angle as the reference for longitudinal
mirroring to calculate the mirror point.
Only check the "H mirroring": the vertical axis of the horizontal axis determined by the angle with the pier as the
reference, the horizontal mirror to calculate the mirror point.
Simultaneously check the "H mirroring", and "V mirroring": respectively, the horizontal and vertical axis
determined by the pier angle as the reference, calculate the horizontal mirror, vertical mirror, and horizontal and
vertical mirror points, that is, a total of three mirror points.
5. After the completion of the feature point settings, click "OK" to return to the pier template design interface,
the right side will correspond to the relative position of the feature point and the horizontal and vertical axes,
which point to the arrow above indicates the direction of the road forward.
Figure 12- 5
