SLT12 User Manual
159

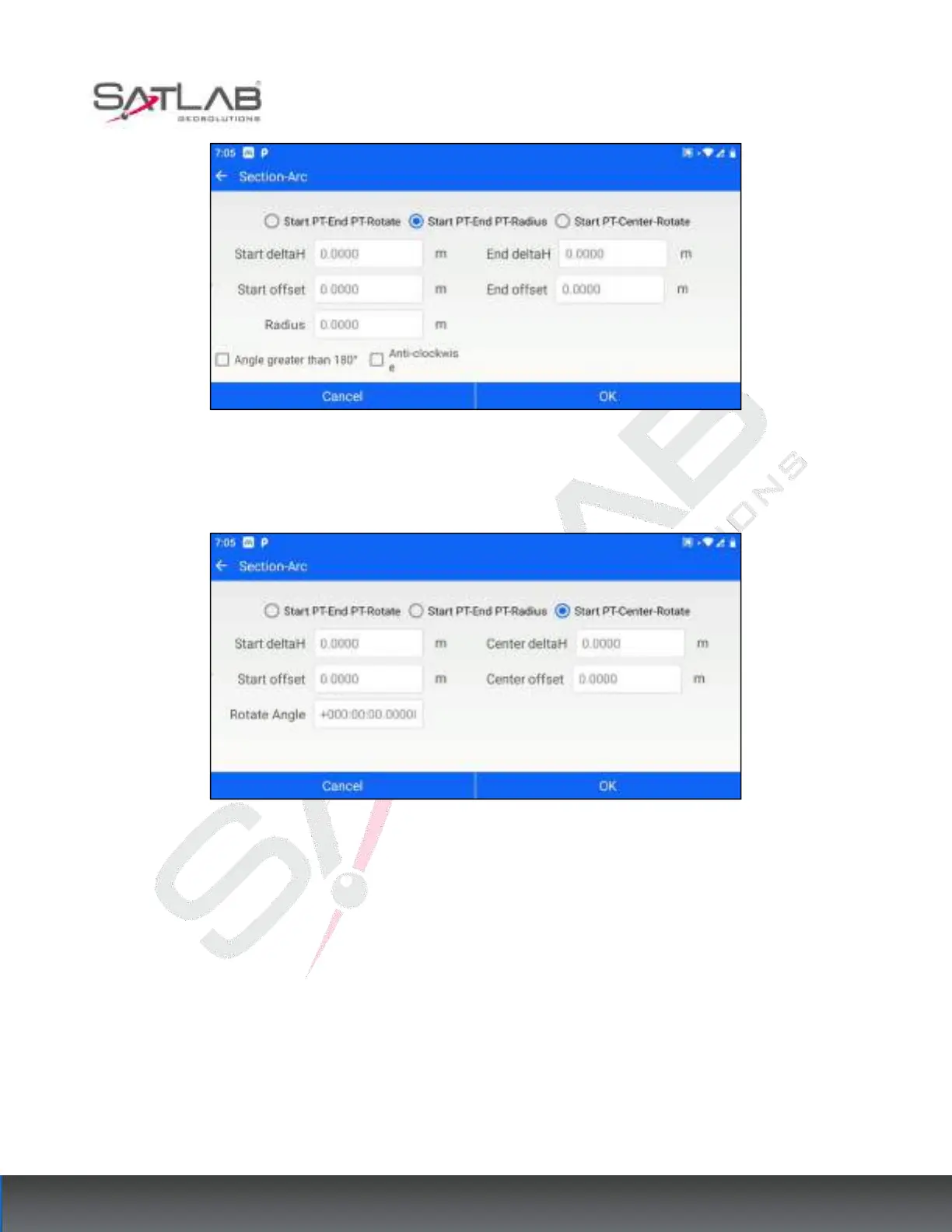

Figure 13- 6
③
"Start point-circle center-rotation angle": the parameters to be set are start elevation difference, start Offset,
circle center elevation difference, circle center Offset, and rotation angle (cannot be 0).
Figure 13- 7
If the section line element type is selected as the circle, the parameters to be set are circle center elevation
difference, circle center offset, and radius (cannot be 0).
