Figure 13- 4

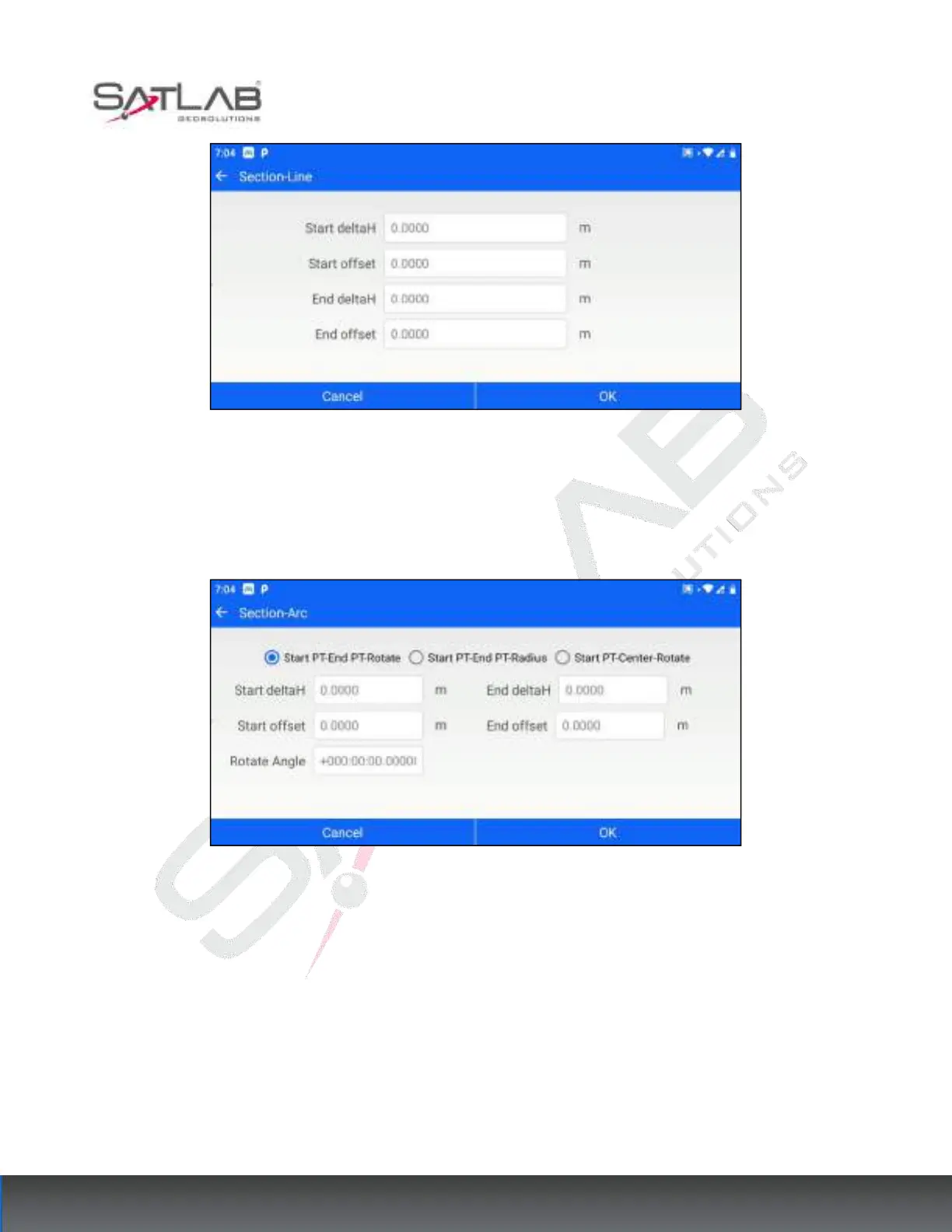

If you select the section line element type as arc, you have the following three options to add.
①"Start point - End point - Turning angle": the parameters to be set start elevation difference, start offset, end
elevation difference, end offset, and rotation angle (cannot be 0).
Figure 13- 5
②
"Start - End - Radius": the parameters to be set start elevation difference, start offset, end elevation difference,
end offset, radius (cannot be less than half of the start and end distance), □ turning angle greater than 180° and □
counterclockwise.
