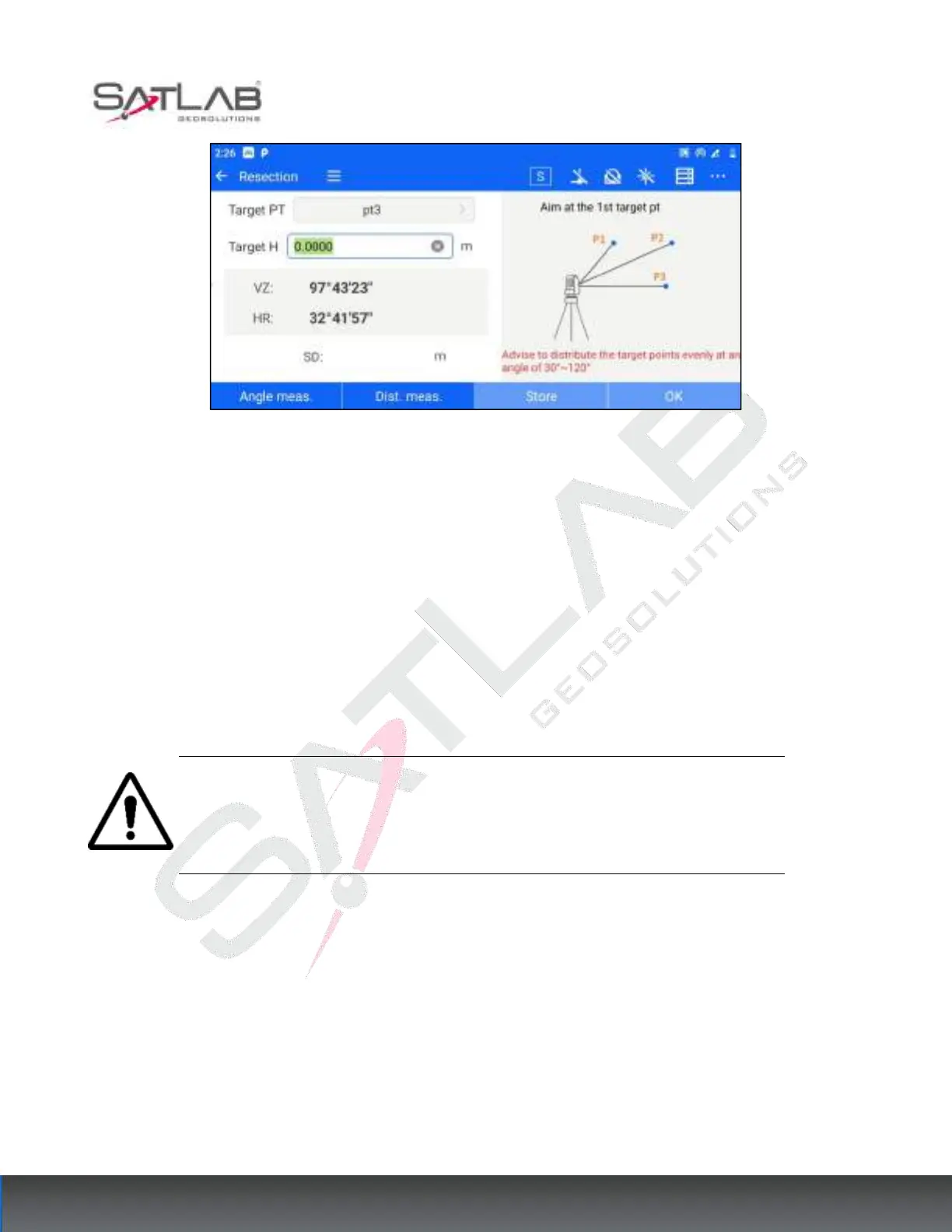

Figure 6- 14
[Angle meas.]: Click on the angle meas. when aiming at the target point, and get the angle data from the
measurement station to the target point.
[Dist.meas.]: Click dist.meas. when aiming at the target point to get the slant distance from the measuring station
to the target point.
[Store]: After measuring the target point, click "store" to return to the point list and store the distance point/angle
point in the measurement point library.
[OK]: After you have measured the target points, click "OK" to return to the point list.
Note: 1. Distance measurement requires at least 2 points, and an angle of 30°~120°
for every two points is preferred.
2. At least 3 points are required for angle measurement, and the point to be
determined needs to be inside the triangle formed by the 3 observation points.
4. The Resection point list interface shows all the points that have been measured currently. At the bottom, you
can set "IH". Click on the corresponding data to "delete" the operation.
