SICK DL100 Pro

Mounting
28 © SICK AG • Subject to change without notice • 8024484/2019-06-06
6.4 Arrangement of multiple distance measuring devices
Multiple distance measuring
devices
To mount multiple distance measuring devices, you will need to maintain
a minimum distance between the devices when they are mounted. The
minimum distance is proportional to the maximum scanning range of the
distance measuring device.
Formula a≥100mm+0.01xs
max
[mm]
Example • Distance measuring device: DL100–21xxxx01
• Measuring range: 0.15–100 m
• Maximum measured value: 60 m
• s
max
= 60 m
Calculation
a≥100mm+0.01x60,000mm→ 100 mm +600 mm → 700 mm
Result
a≥700mm
Light beams in the same direction
s
m
a
x
.
a




S
et
E
s
c
<
<
S
et
E
s
c
<
<

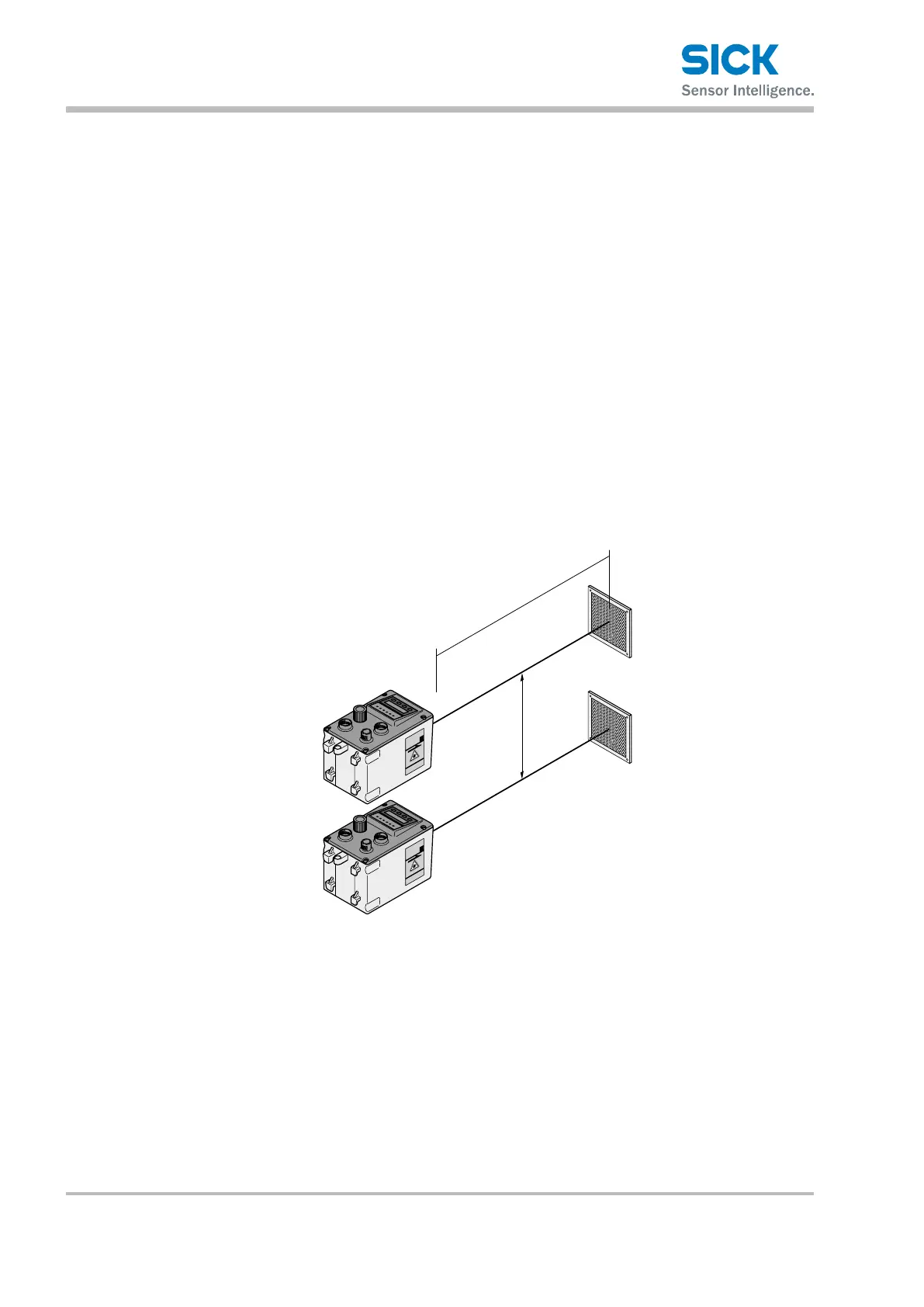

Fig. 9: Placement of two distance measuring devices’ with light beams in the
same direction
1 DL100 Pro distance measuring device
2 Reector
a Minimum distance
s
max
Maximum scanning range
