Mounting
6.5.2 Assignment to ISD400-7xxx (ISD400 Pro)
DL100-2xxA2213 The following applies for the assignment and the minimum distance of
theDL100Prowithoutintegratedspectrallter(DL100-2xxA2213) to the
ISD400-7xxx:
a
d




a > d x 0,0083

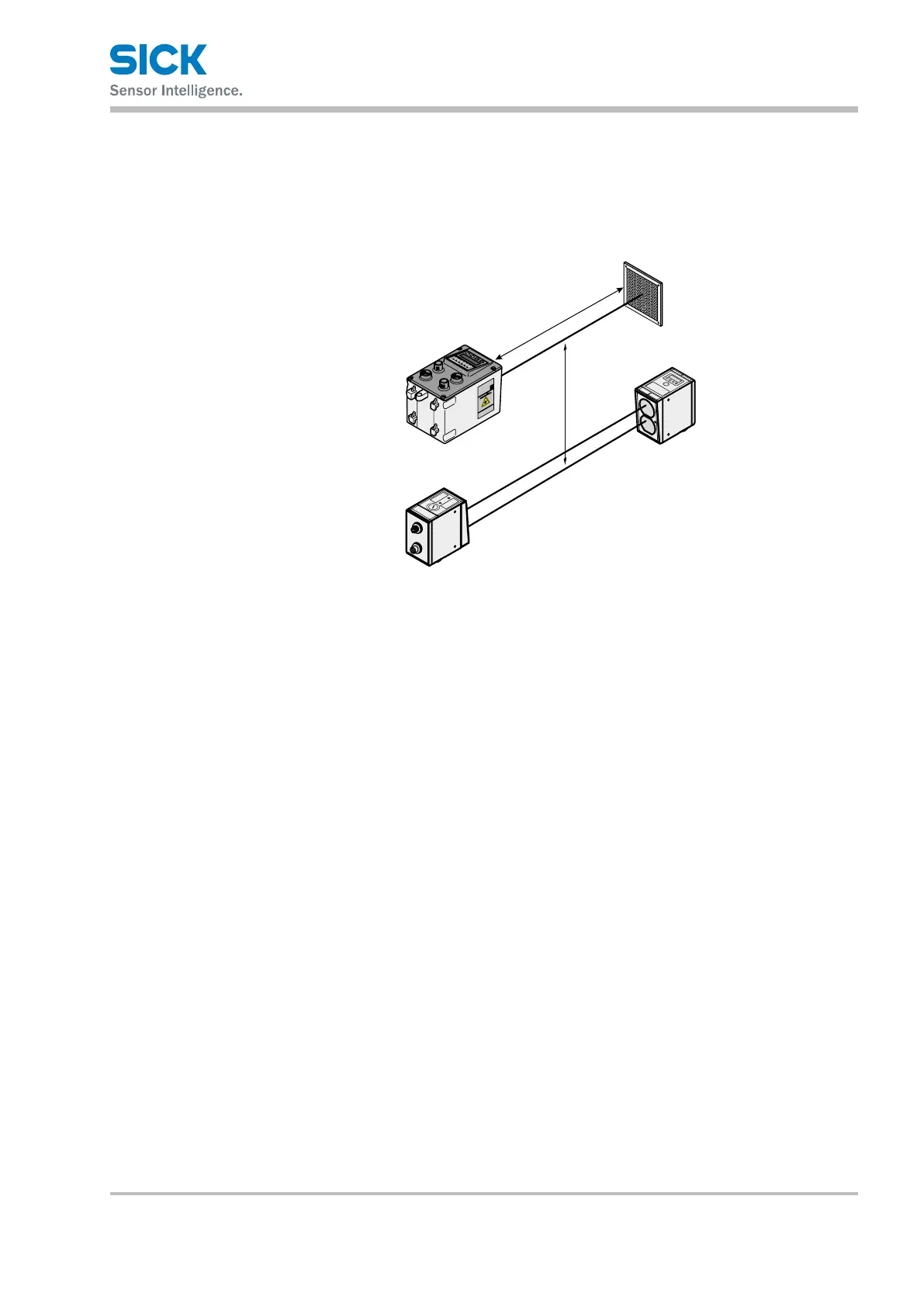

Fig. 12: Arrangement of IDS400 Pro and a DL100 Pro distance measuring device
1 DL100-2xxA2213 distance measuring device
2 Reector
3 ISD400-7xx1, red
4 ISD400-7xx2, infrared
a Minimum distance
Formula a > d x 0.0083
Example d (measuring distance): 100 m
Calculation
a > 100 m x 0.0083
Minimum distance result
a > 0.83 m
DL100-2xxB2213 The following applies for the assignment and the minimum distance of
theDL100Prowithintegratedspectrallter(DL100-2xxB2213) to the
ISD400-7xxx:
A minimum distance is not required
