Mounting
6.8 Aligning the distance measuring device using the alignment bracket
Align the distance measuring device using the alignment bracket according
tothefollowinggures.Thelightspotofthesensormustcontinuetohitthe
centerofthereector.
Alignment in the X-direction
Set
Esc
<
<
X
1

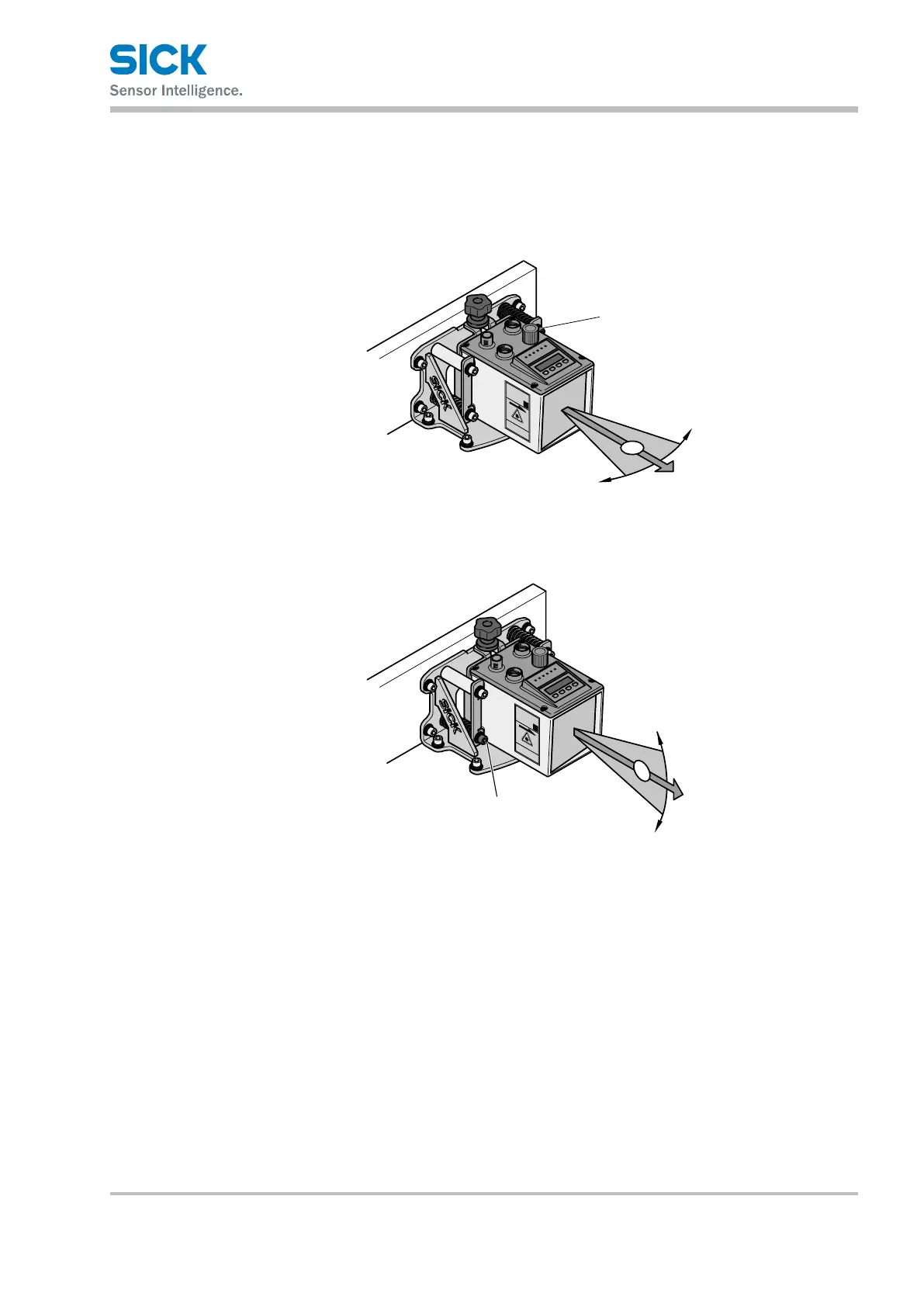

Fig. 16: Aligning the distance measuring device in the X-direction using the
alignment bracket
1 Set screw for aligning the distance measuring device in the X-direction
Alignment in the Y-direction
Set
Esc
<
<
Y

Fig. 17: Aligning the distance measuring device in the Y-direction using the
alignment bracket
1 Set screw for aligning the distance measuring device in the Y-direction
