6.5.8
Electronics cover

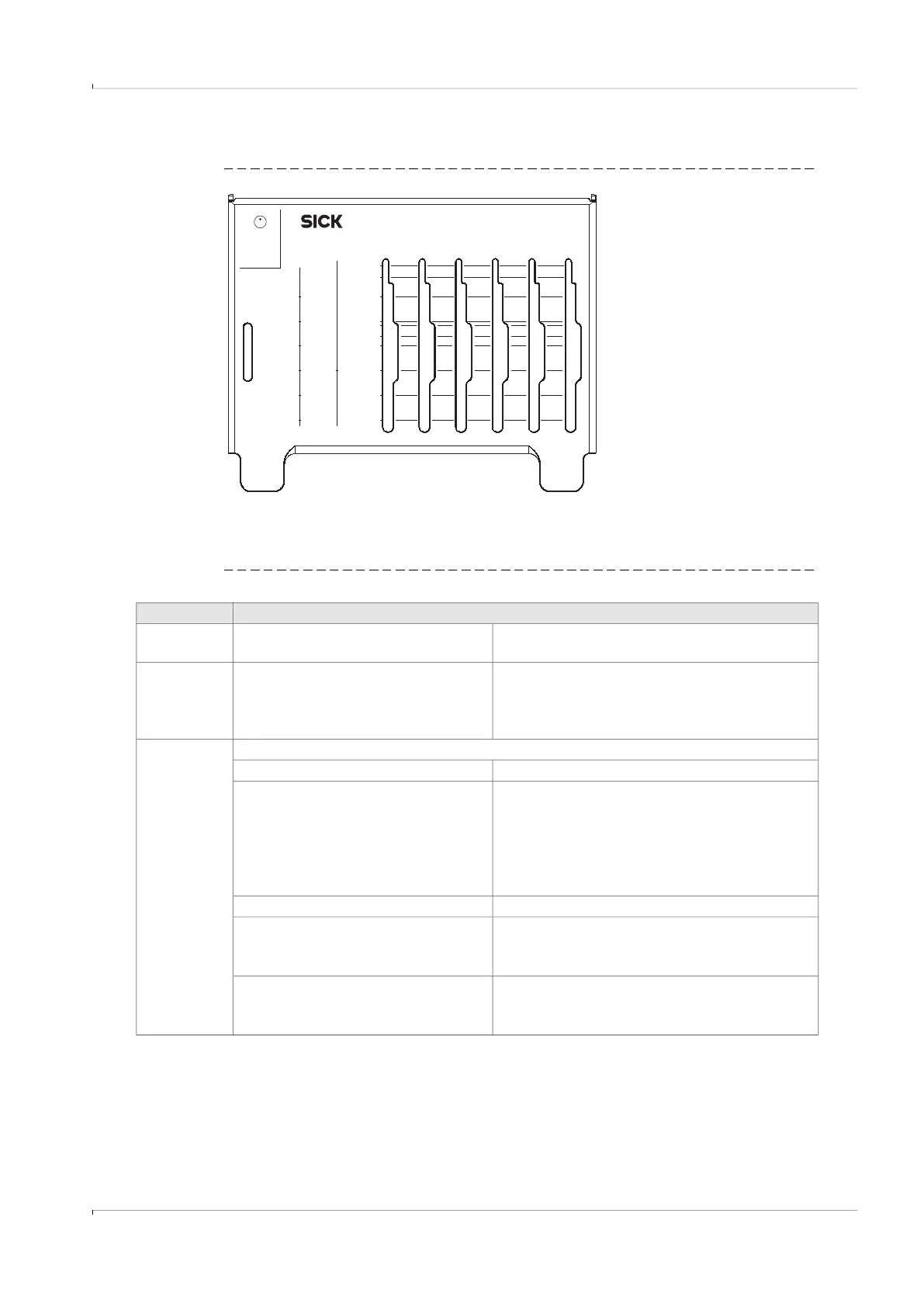

Fig. 68 Electronics cover
The electronics cover serves to protect the internal electronics from contamination.
The labeling on the electronics cover refers to the module slots.
Fig. 69 Electronics cover labeling
RTC BATTERY
BAT 1
use only type:
PANASONIC
BR 2032
BATTERY
SWITCH LED
DIGITAL
(2DI / 6DO)
FF
Module Com
Module Status
FF Power
FF Tx
FF Rx
D01
NAMUR
OC
Simulate
disable
enable
MODULE 1
MODULE 2
MODULE 3
MODULE 4
MODULE 5
MODULE 6
PULL PULL
D02
NAMUR
OC
D04
NAMUR
OC
D03
NAMUR
OC
D05
NAMUR
OC
D06
NAMUR
OC
Labeling Description
Digital
Switch for NAMUR/OC changeover, for
digital modules
Switching between Open Collector and Namur,
see  p. 116, §6.5.9.
FF
Simulate switch,
only for FOUNDATION Fieldbus
● Disable: Measured and process values
available via FOUNDATION Fieldbus
● Enable: Simulated values available via
FOUNDATION Fieldbus
LED
Mobile communication signaling
Module COM Communication via backplane bus active
Module Status
● Flashing: I/O module synchronization (once
per I/O cycle, e.g. 500 ms)
● Blinking: Short-term I/O or communication
error; check I/O module status
● Static on: Permanent I/O or communication
error; check I/O module status
FF Power Bus line via FOUNDATION Fieldbus H1 available
FF Tx
● Flashing/blinking: Internal communication
response of the I/O module
1)
● Static on: No communication
1)
Independent of external communication via FOUNDATION Fieldbus H1
FF Rx
● Flashing/blinking: Internal communication
response of the I/O module
1)
● Static on: No communication
