Technical data
FLOWSIC100 Flare-XT · Operating Instructions · 8023761/V 1-0/2020-10 · © SICK Engineering GmbH 169
12.8.2

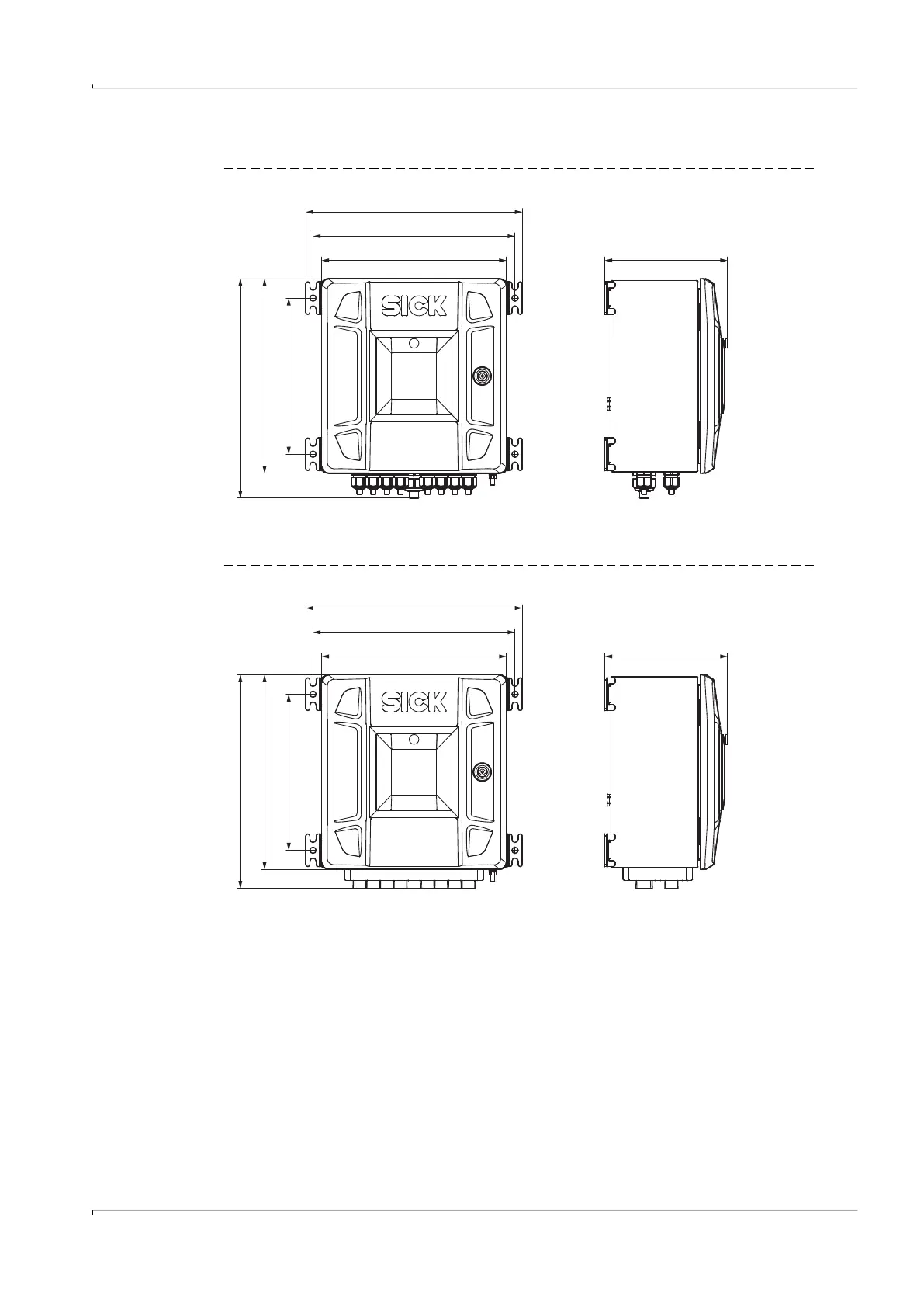

Dimension drawings Interface Unit
Fig. 109 Interface Unit Zone 2 (dimensions in mm (in))
Fig. 110 Interface Unit Cl. 1 Div. 2 (dimensions in mm (in))
358
(14.09)
334
(13.15)
306
(12.05)
203
(7.99)
363
(14.29)
322
(12.68)
258
(10.16)
358
(14.09)
334
(13.15)
306
(12.05)
203
(7.99)
352
(13.86)
322
(12.68)
258
(10.16)
