52 FLOWSIC100 Flare-XT · Operating Instructions · 8023761/V 1-0/2020-10 · © SICK Engineering GmbH
Installation FLSE100-XT
5.6.6.3
Nozzle installation tool
The installation tool serves to align and weld the nozzle on the pipeline. SICK offers various
nozzle installation tools depending on the nominal pipe diameter and path configuration.
The nozzle installation tool contains, per nozzle
● Welding aid M16 75 °(1),
● Centering plate 2” (2),
● Threaded rod M16 length 290 mm (3),
● Centering 2” (4),
● Assembly material
● Installation paper strip as tool to determine the exact nozzle position on the pipeline.

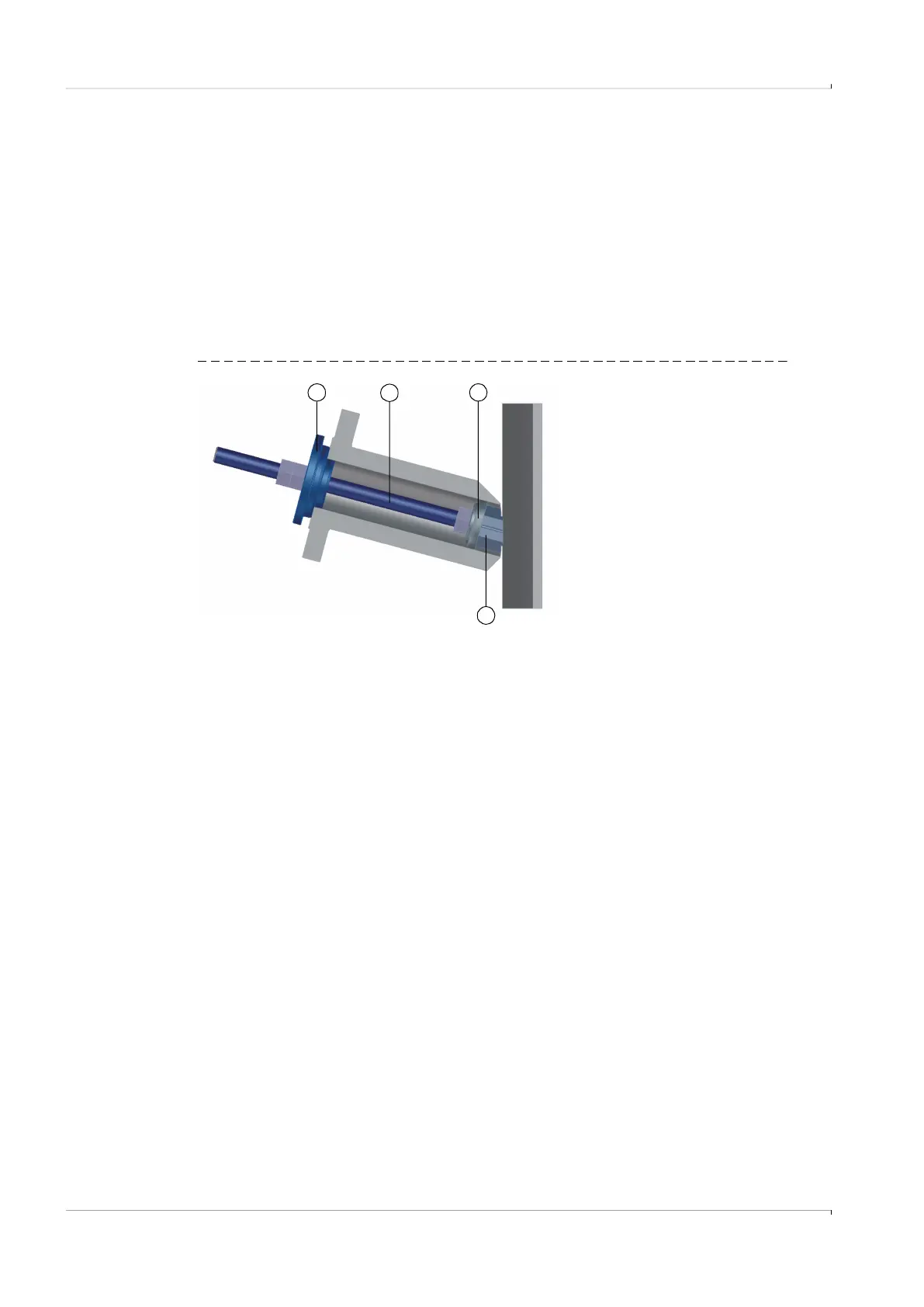

Fig. 21 Nozzle installation tool
4
3
2
1
