Installation Interface Unit
FLOWSIC100 Flare-XT · Operating Instructions · 8023761/V 1-0/2020-10 · © SICK Engineering GmbH 119
6.6

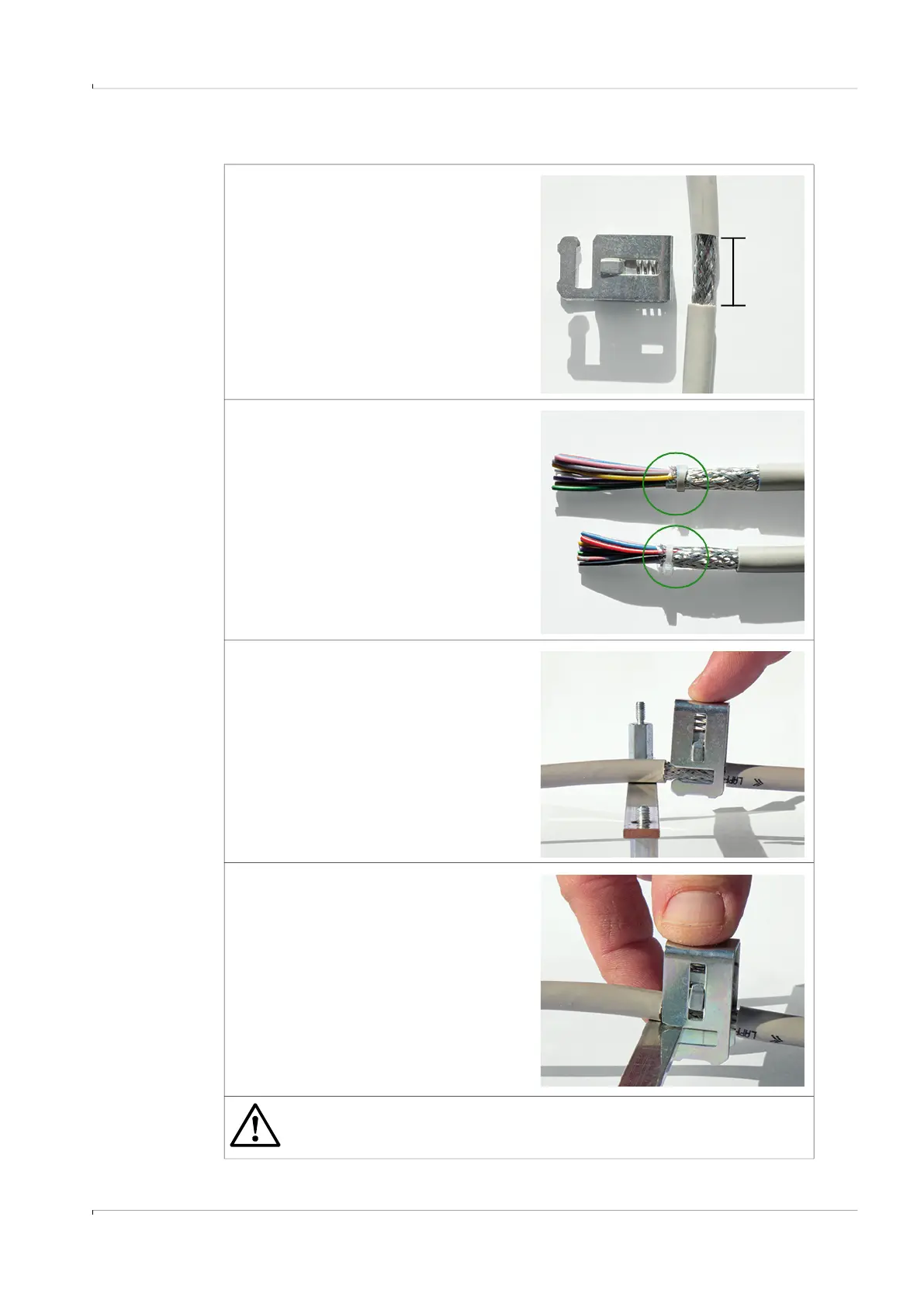

Connecting shielding terminals
1 Strip the cable > 22 mm.
2 Leave a piece of the sheath in place to
hold the wires together. As an alternative,
use a cable strap.
3 Before securing the cable with the
terminal, attach the associated plug-in
connector.
Then connect the terminal to the shield.
4 Press the terminal down and slide it onto
the rail to secure the cable.
WARNING: Danger due to incorrect use of the shielding terminal
The insulation of the cable must not be clamped under the shielding terminal.
Otherwise there is no electrical contact and shielding is not guaranteed.
> 22 mm
