Installation Interface Unit
FLOWSIC100 Flare-XT · Operating Instructions · 8023761/V 1-0/2020-10 · © SICK Engineering GmbH 101
Fig. 57 Fitting the Interface Unit on the weatherproof cover
6.4.5.2 Weatherproof cover for Interface Unit for fitting on a 2-inch pipe
The weatherproof cover for fitting on a 2-inch pipe (Part No. 2109217) is delivered as a set
comprising the following components:
● Mounting plate
● Weatherproof cover
● Fastening material (round steel bow, screws, washers, nuts)
Fitting the weatherproof cover
1 The installation plate for the Interface Unit is screwed with the weatherproof cover for
transport. For fitting on the 2-inch pipe, first dismount the mounting plate from the
weatherproof cover.
2 Fasten the installation plate to the 2-inch pipe according to
p. 98, §6.4.4.2 and
→ Fig. 53.
3 Screw the weatherproof cover with the supplied fastening material through the four
holes marked on the mounting plate, → Fig. 58.

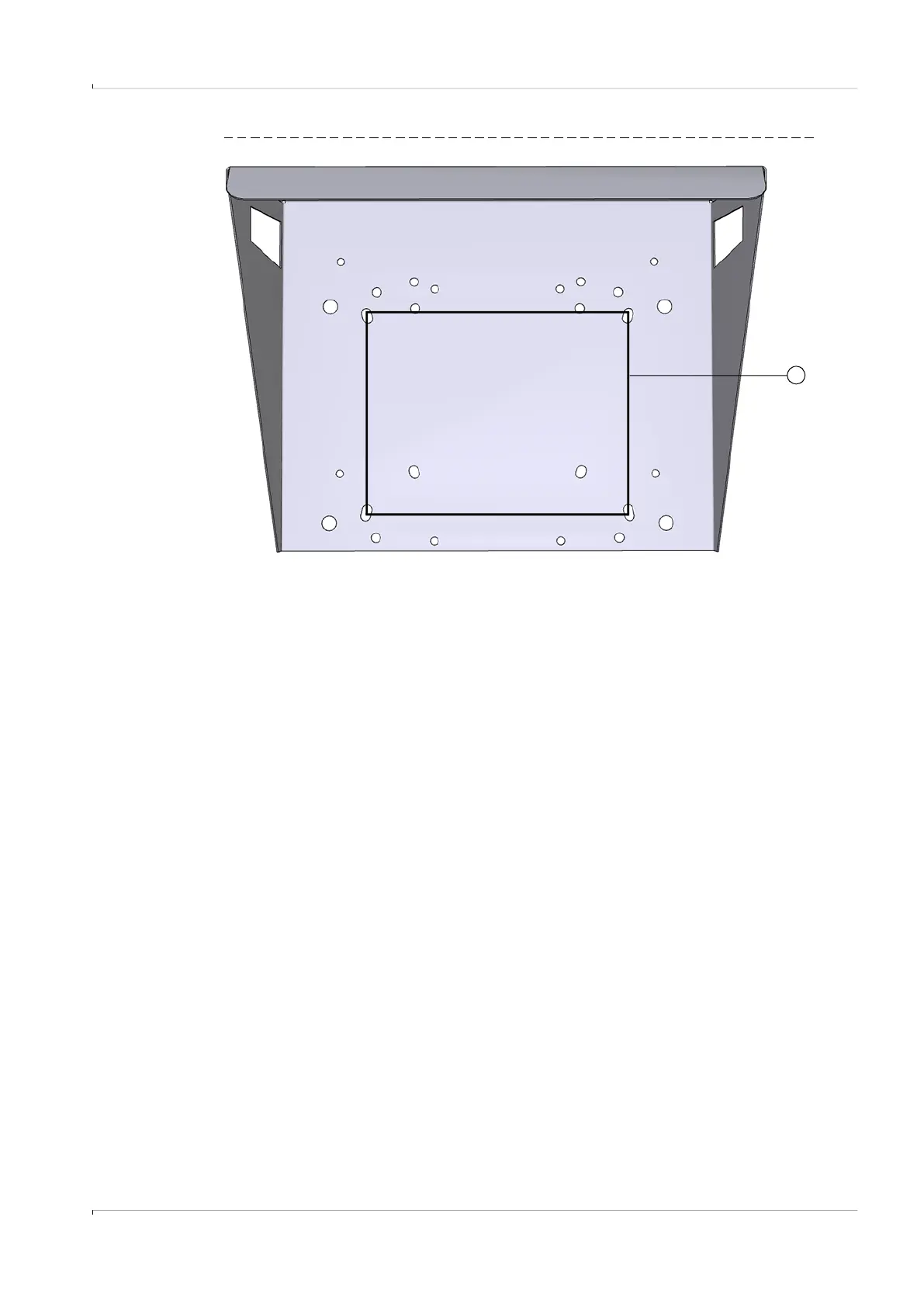

1
1 Holes for fitting the Interface Unit Zone 2
