46 FLOWSIC100 Flare-XT · Operating Instructions · 8023761/V 1-0/2020-10 · © SICK Engineering GmbH
Installation FLSE100-XT
5. 6
Installation
5.6.1 Safety information

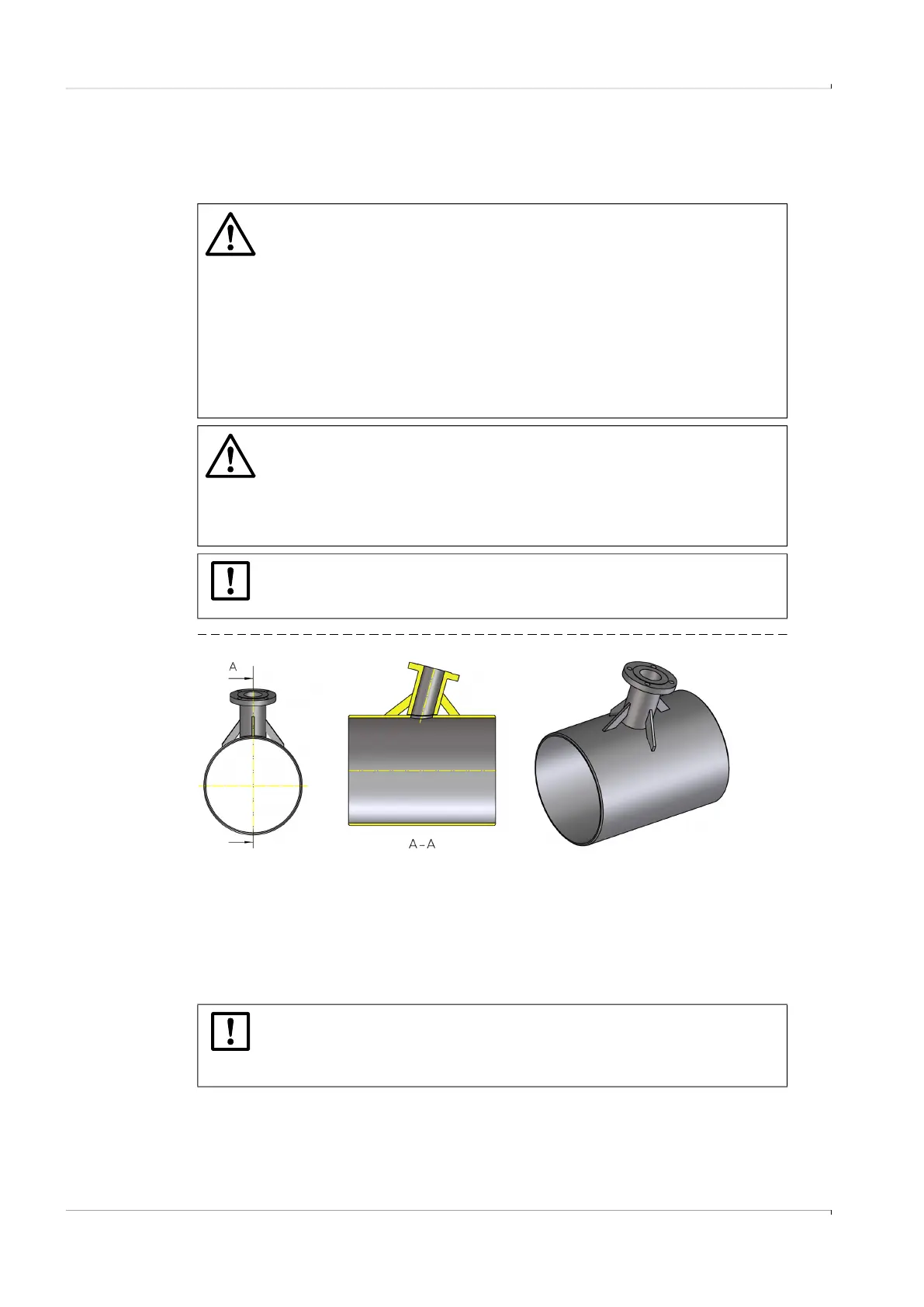

Fig. 18 Option mechanical support for nozzle ”gusset plates”
5.6.2
Scope of delivery
▸
Check that delivery includes all ordered parts.
▸
Check parts for possible transport damage. Pay particular attention to transducer
surfaces, sealing surfaces on the flanges and, if delivered, the interior of the spool
piece.
▸
Immediately document and report damage to the manufacturer.
WARNING: Risks during installation
▸
Observe the relevant safety regulations as well as the safety notices on
p. 13, §2 during all installation work.
▸
Carry out assembly work on equipment with hazard potential (hot or
aggressive gases, higher internal pipeline pressure) only when the
equipment is at a standstill.
Fitting when the equipment is running is only possible using the “hot
tapping method”. Such work may only be carried out by a specialized
contractor authorized by the plant operator.
▸
Take suitable protection measures against possible local hazards or
hazards arising from the equipment.
WARNING: Mechanical burden
The static load moment of all parts to be installed on the pipeline can be up to
approx. 600 Nm. Strong pipe vibrations can cause damage and can lead to
dangerous situations.
▸
Use a mechanical support for the nozzles welded to the pipeline, e.g.
”gusset plates”.
NOTICE:
The plant operator is responsible for the safety of the system under mechanical
load.
NOTICE:
To ensure safe and reliable operation of the measuring devices, ensure that
the current operating conditions on the system correspond to the
specifications on the type plates of the sender/receiver units.
