98 FLOWSIC100 Flare-XT · Operating Instructions · 8023761/V 1-0/2020-10 · © SICK Engineering GmbH
Installation Interface Unit
6.4.4.2
Option “Mounting kit 2-inch pipe mounting”
▸ Use two round steel bows (1), nuts (2) and washers (3) to fasten installation plate (4)
2-inch pipe (Order No. 2109763), → Fig. 53.
▸ Use nuts (5), washers (6) and screws (7) to fasten the Interface Unit on the installation
plate through the 4 marked openings, → Fig. 54.

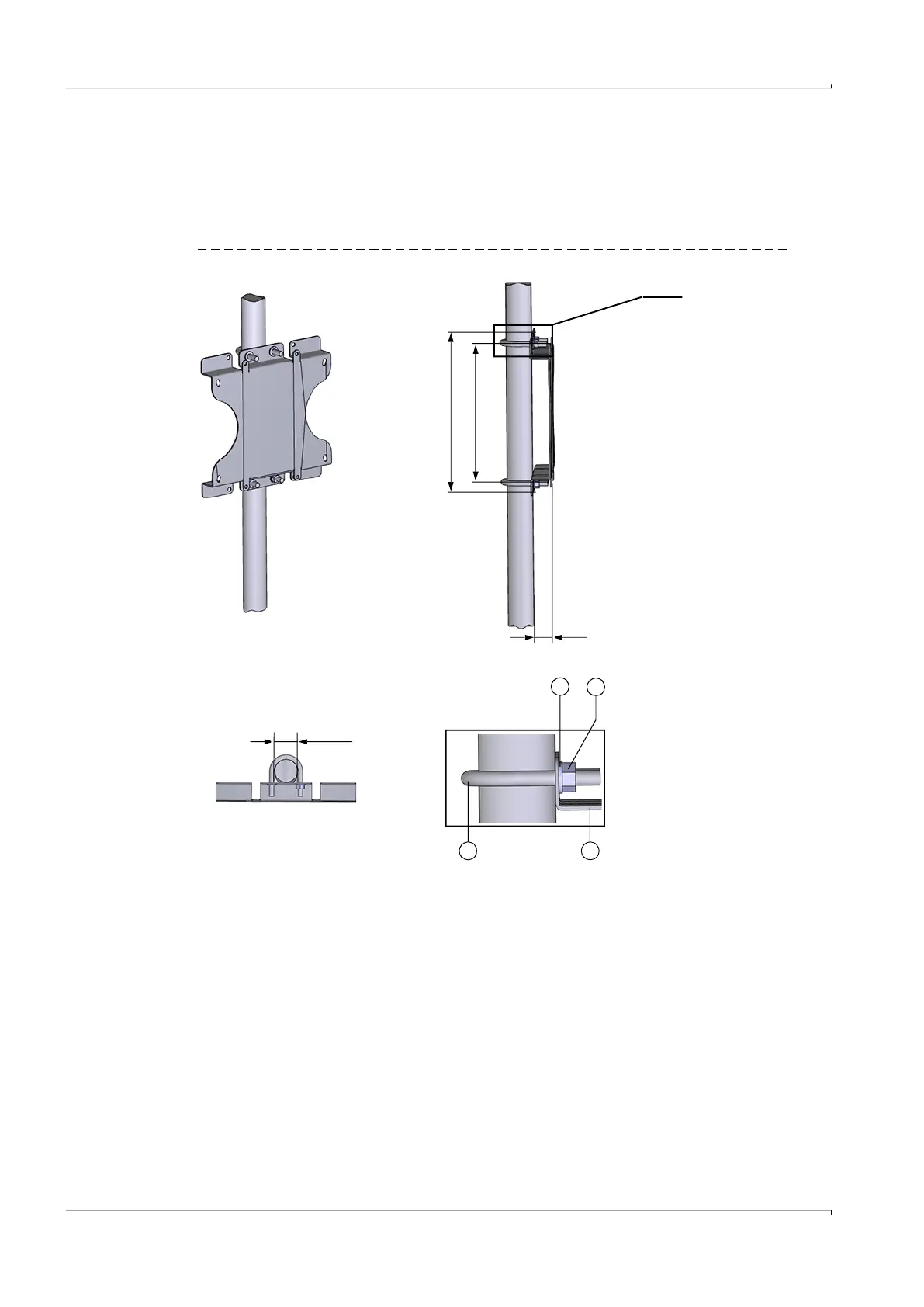

Fig. 53 Fitting the installation plate on the 2-inch pipe (dimensions in mm)
Detail 1
1 Round steel bow DIN3570
2 Washer A13 -A4
3 Nut M12 -A4
4 Installation plate
45
365
330
Detail 1
1 4
2
3
Ø 60.3
