SICK FLOWSIC100 Flare-XT

Installation Interface Unit
FLOWSIC100 Flare-XT · Operating Instructions · 8023761/V 1-0/2020-10 · © SICK Engineering GmbH 99

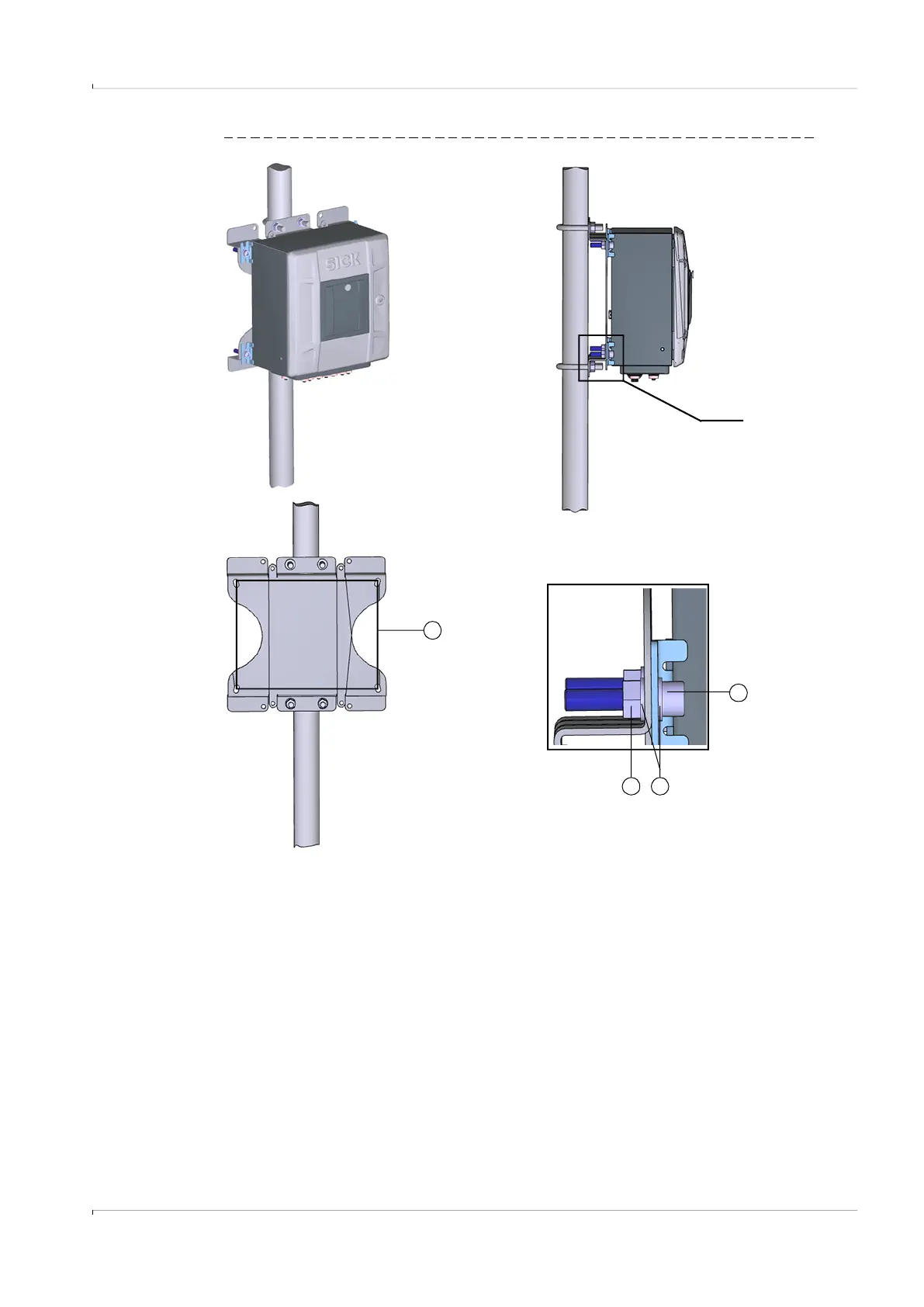

Fig. 54 Fitting the Interface Unit on the installation plate
Detail 2
Detail 2
5 Nut M10 DIN934
6 Washer B10.5 DIN125
7 Screw M10 DIN912
8 Holes for fitting the Interface Unit Zone 2
7
65
8
