Technical data
FLOWSIC100 Flare-XT · Operating Instructions · 8023761/V 1-0/2020-10 · © SICK Engineering GmbH 167
12 .8

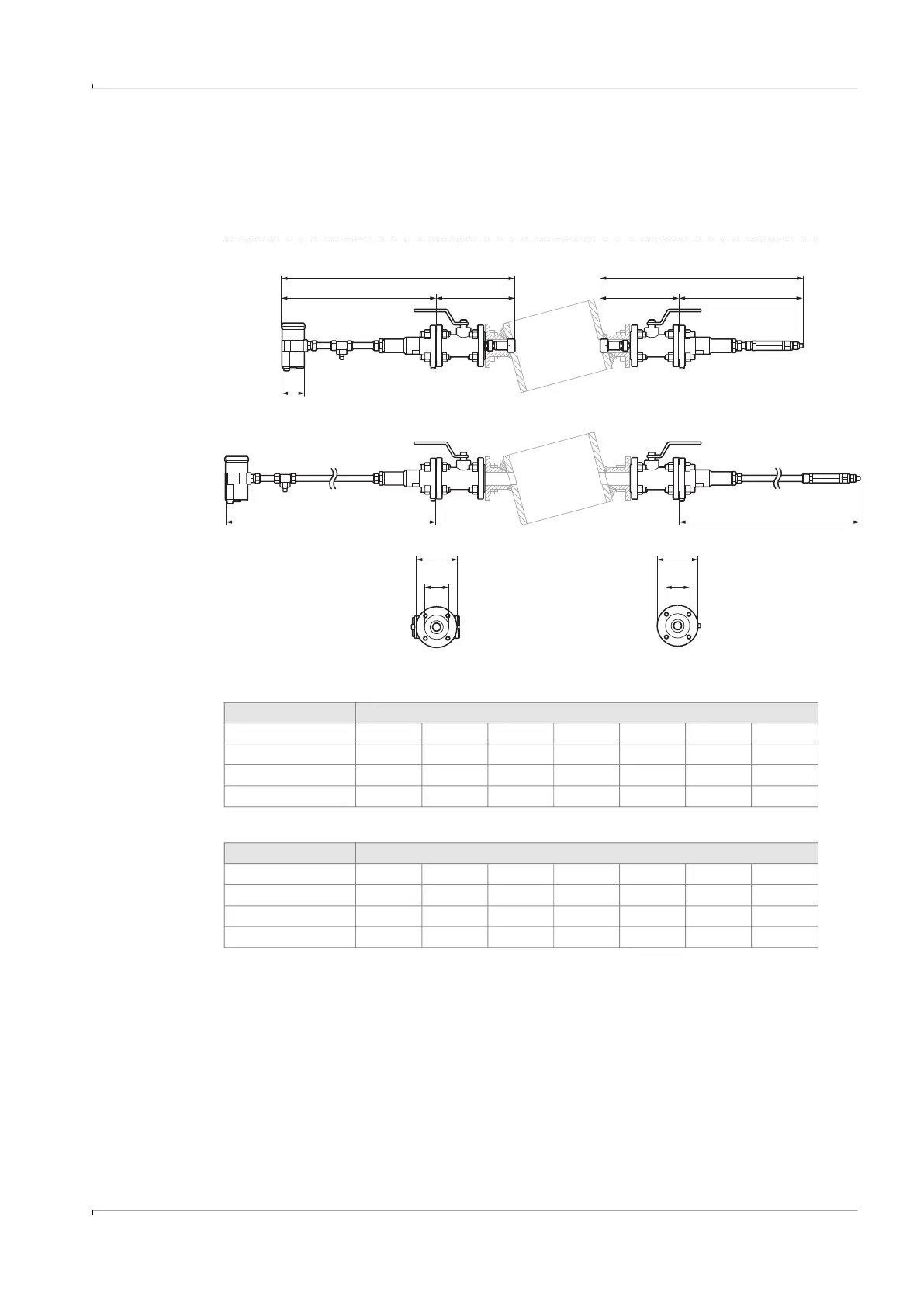

Dimension drawings
12.8.1 Dimension drawings of FLSE100-XT sender/receiver units
Dimensions for F1F-S/-M/-H CL150, 2"
Fig. 107 F1F-S/-M/-H
Table 29 Extended version
Table 30 Compact version
A
BC
CE
D
90
F G
150 150
92 92
Inserted position
Retracted position
FLSE100-XT Dimensions of extended version
A B C D E F G
F1F-S 983 583 400 871 471 1055.5 944
F1F-M 980 582 398 869 471 984 873
F1F-H 846 448 398 919 518 851 917
FLSE100-XT Dimensions of compact version
A B C D E F G
F1F-S 883 583 300 771 471 955.5 844
F1F-M 880 582 298 769 471 884 773
F1F-H 746 448 298 819 518 751 817
