Installation FLSE100-XT
FLOWSIC100 Flare-XT · Operating Instructions · 8023761/V 1-0/2020-10 · © SICK Engineering GmbH 77
5.6.11
Fitting the weatherproof cover for the sender/receiver unit
The weatherproof cover (Order No. 2105581) serves to shield the electronics of the
sender/receiver unit from sunlight and weather influences.
5.6.11.1 Overview

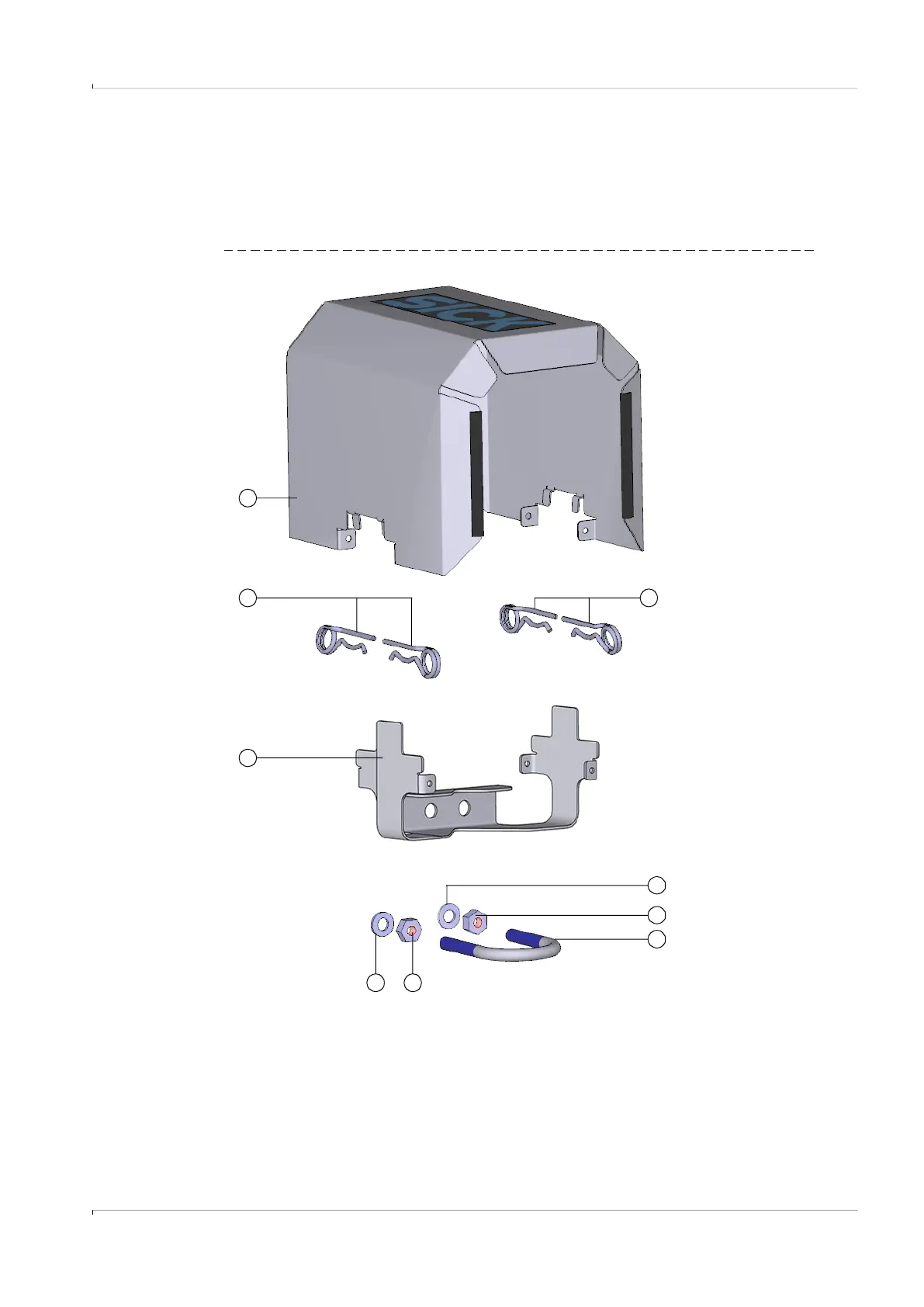

Fig. 41 Weatherproof cover overview
1
2
6
3
5
2
4
4 5
1 Holder
2 Safety splints
3 Weatherproof cover
4 Washers
5 Hexagon nuts
6 Round steel bow
