Installation FLSE100-XT
FLOWSIC100 Flare-XT · Operating Instructions · 8023761/V 1-0/2020-10 · © SICK Engineering GmbH 63
Using the centering sleeves
The mounting kit for the sender/receiver units includes centering sleeves.
The centering sleeves serve to ensure the centering of the process flanges of the sender/
receiver units.

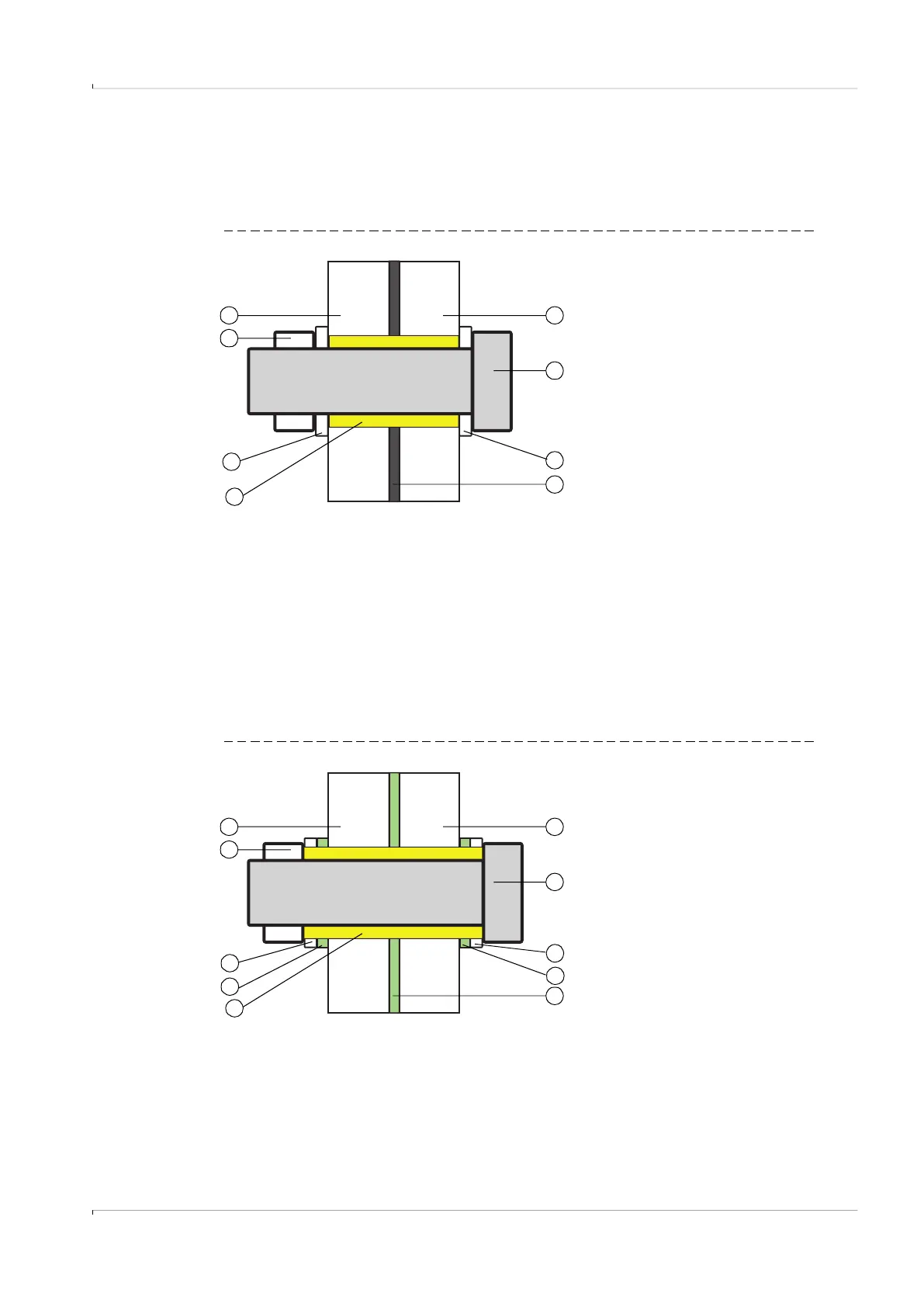

Fig. 31 Using the centering sleeves
Using the nozzle insulation set (accessory)
To prevent galvanic corrosion of the LTCS nozzles and stainless steel ball valves, a nozzle
insulation set is available as an option (Part No. 2057569). The sleeves included in the
nozzle insulation set replace the standard centering sleeves. In this case, dispose of the
centering sleeves and use the longer insulation sleeves instead.
Fig. 32 Using the nozzle insulation set
1 Centering sleeve 4 Flange
2 Washer 5 Fastening screw
3 Nut 6 Gasket
4
6
2
5
3
2
1
4
1 Insulation sleeve 5 Flange
2 Washer 6 Fastening screw
3 Insulating disc 7 Gasket
4 Nut
5
7
3
6
4
2
1
5
3
2
