7SR11 & 7SR12 Installation Guide
ยฉ2017 Siemens Protection Devices Limited Chapter 5 Page 11 of 32
Section 4: Rear Terminal Drawings
4.1 Case

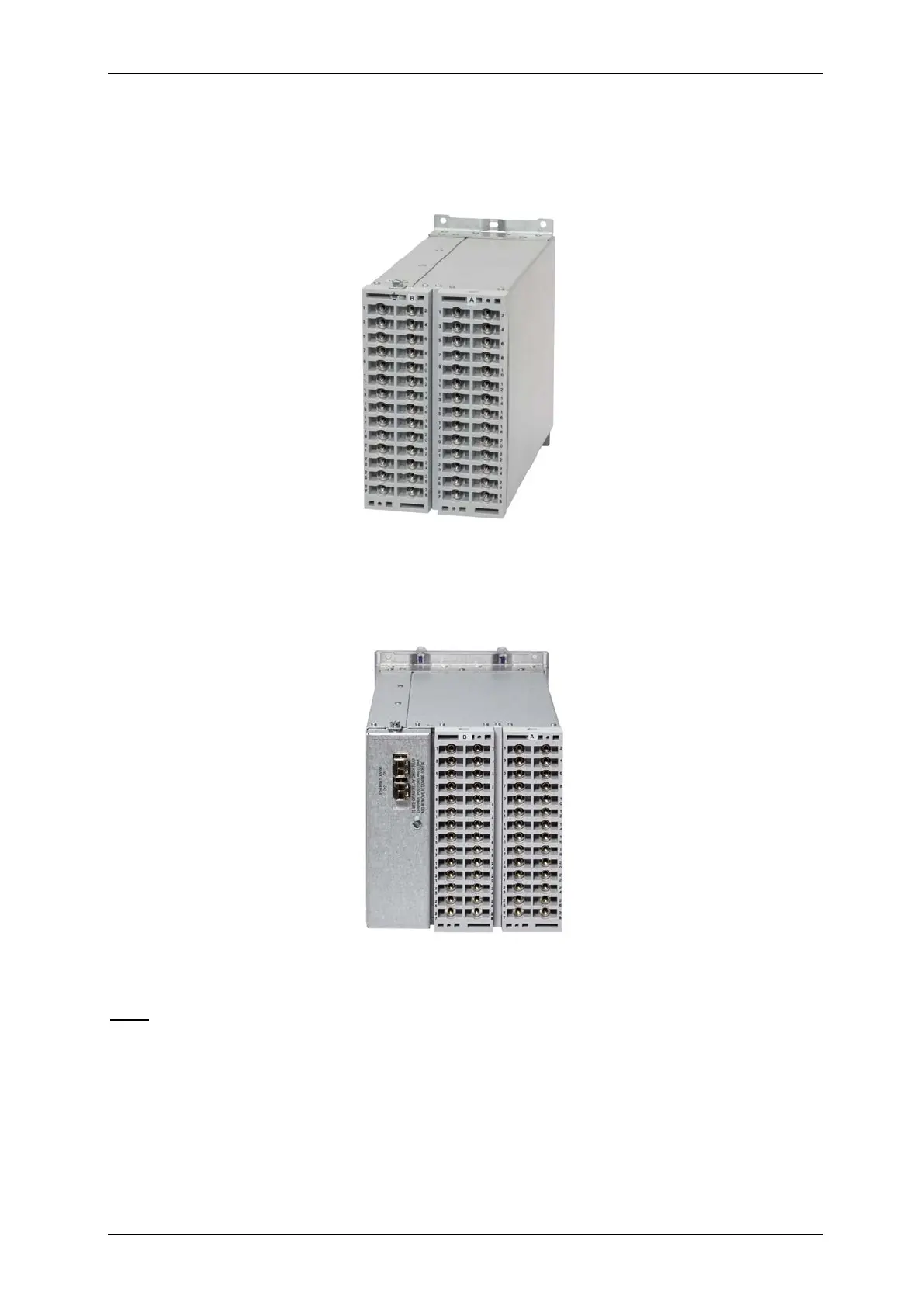

Figure: 4.1-1 E4 Case viewed from rear
Figure: 4.1-2 E6 Case viewed from rear
Notes
1) Recommended terminations are pre-insulated and must be crimped using approved tooling.
2) RS485 (Block โ€Bโ€ Terms 14, 16, 18, 20) connection to this communication facility is by screened, twisted pair
cable. On site when wiring other facilities ensure that these terminals are not obscured by other wiring runs.
Cable should be RS485 compliant.
