Siemens 7SR12 Argus User Manual

7SR11 & 7SR12 Commissioning and Maintenance Guide
©2017 Siemens Protection Devices Limited Chapter 6 Page 23 of 72
2.5 Arc Flash Detection (50AFD)
7SR12
46
BC
46
NPS
(x2)
37
(x2)
49
50
BF
51V
V
L1
(V
A
)
V
L2
(V
B
)
V
L3
(V
C
)
I
L1
(I
A
)
81
HBL
2
37
(x2)
49
50
BF
51V
I
L2
(I
B
)
81
HBL
2
37
(x2)
49
50
BF
51V
I
L3
(I
C
)
81
HBL
2
I
4
(I
G
)
74
T/
CCS
NOTE: The use of some
functions are mutually exclusive
67/
50
(x4)
67/
51
(x4)
67/
50N
(x4)
67/
50
(x4)
67/
50
(x4)
67/
51
(x4)
67/
51
(x4)
67/
51N
(x4)
67/
50 G/
SEF
67/
51 G/
SEF
27
59
(x4)
27
59
(x4)
27
59
(x4)
47
(x2)
79
Optional
59N
(x2)
Note:
Example shows
Voltage Config =
Van, Vbn, Vcn
60
CTS
60
VTS
50BF
51c
51c
51c
64H
81
(x4)
32
(x2)
32
(x2)
32
(x2)
50
AFD
(x2)
50
AFD
(x2)
50
AFD
(x2)
32S
55
(x2)
55
(x2)
55
(x2)

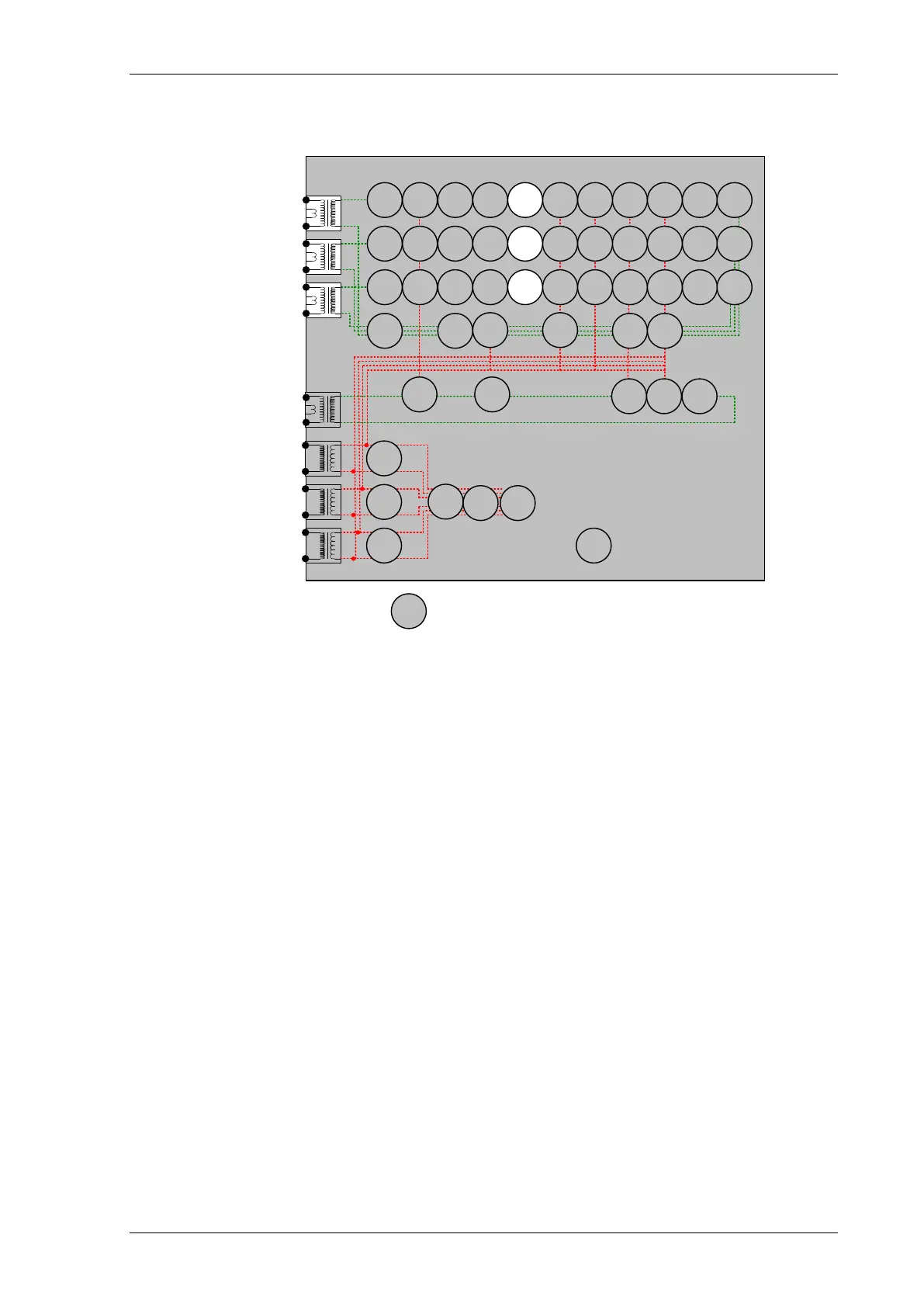

Figure 2-6 Arc Flash Detection
Voltage Inputs: N/A
Current Inputs: I
L1
(I
A
), I
L2
(I
B
), I
L3
(I
C
),
Disable: 49, 50, 51
Map Pickup LED: 50AFD Zone-n Flash - Hand Reset, 50AFD Zone-n – Hand/self Reset
The overcurrent level can be tested without an arc flash by separately energising or inverting the arc detector
binary input continuously for the duration of the test for the zone being tested.
If the current setting is low, gradually increase current until element operates.
If the current level required is greater than the thermal limit of the relay, apply 0.9x setting, check for no operation,
apply 1.1x setting, check operation.
Optical sensors such as 7XG31 can be tested by application of a suitable light source. Relay instrumentation can
be used to indicate binary input pickup or by the 50AFD Zone-n Flash outputs.
The 7XG31 devices will typically require 10000 lx light level for 1.25ms to trigger. A high powered photographic
flash is the most convenient means of initiating positive sensor operation.
Note that mobile phone or small compact camera flashes may not have sufficient power to cause sensor
operation but may be suitable if held directly against the sensor.
Check correct indication, trip output, alarm contacts, waveform record.
