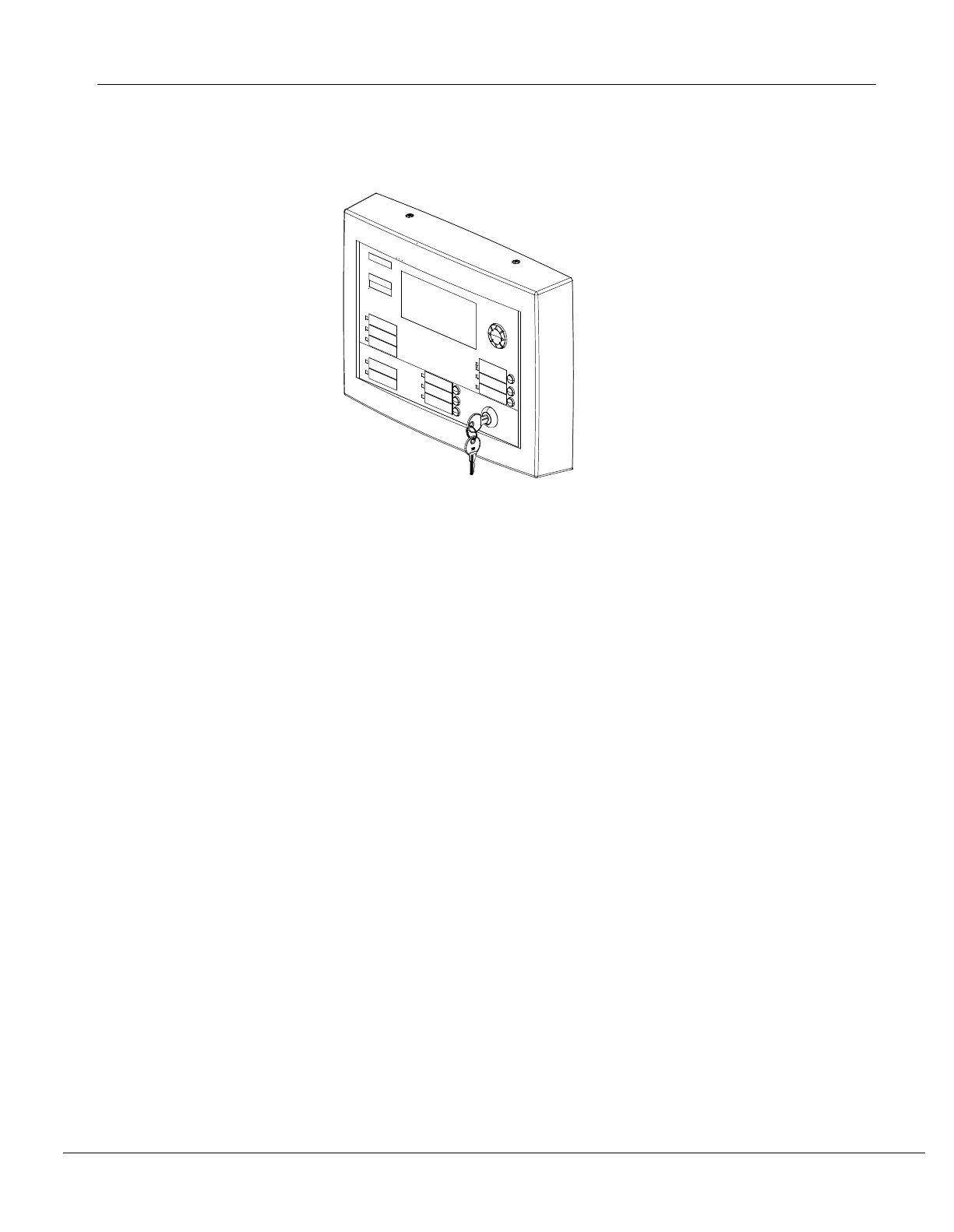

Remote terminal FT2015
19.1 Description
Remote terminal Display FT20xx Series is synchronized with Fs20 FACP of the
configured visibility and display the same event texts. The device is connected to the
control panel via the RS-485 circuit. The remote terminal is available in the either
red
or black.
Common Features
 Connection to the RS-485 circuit as a class B circuit or class A circuit
 Power supply from the associated fire control panel
 External supply possible
 Operation enabled by key switch (FT2015-xx only)
 8-line display each with 40 characters per line and backlight
 Buzzer
 Indication of alarms and troubles
 Bypass for installed buzzer
 Three LEDs configurable with the Engineering tool set.
 Inscription strips for sliding in
Additional Features
 Acknowledgement and resetting of alarms and troubles (F2015-xx only)
 Three buttons configurable with the Engineering tool set.
Document references
The templates for the inscription strips and the operating instructions with button and
LED designations are located in the Appendix on page: 136.
