13 FCA2015-U1 Digital Alarm Communicator
Transmitter (DACT)
The FCA2015-U1 Digital Alarm Communicator Transmitter (DACT) board is an optional
module for FS20 Fire Alarm System Control Panels. The DACT provides telephone line
connections for communication with a Digital Alarm Communicator Receiver (DACR). The

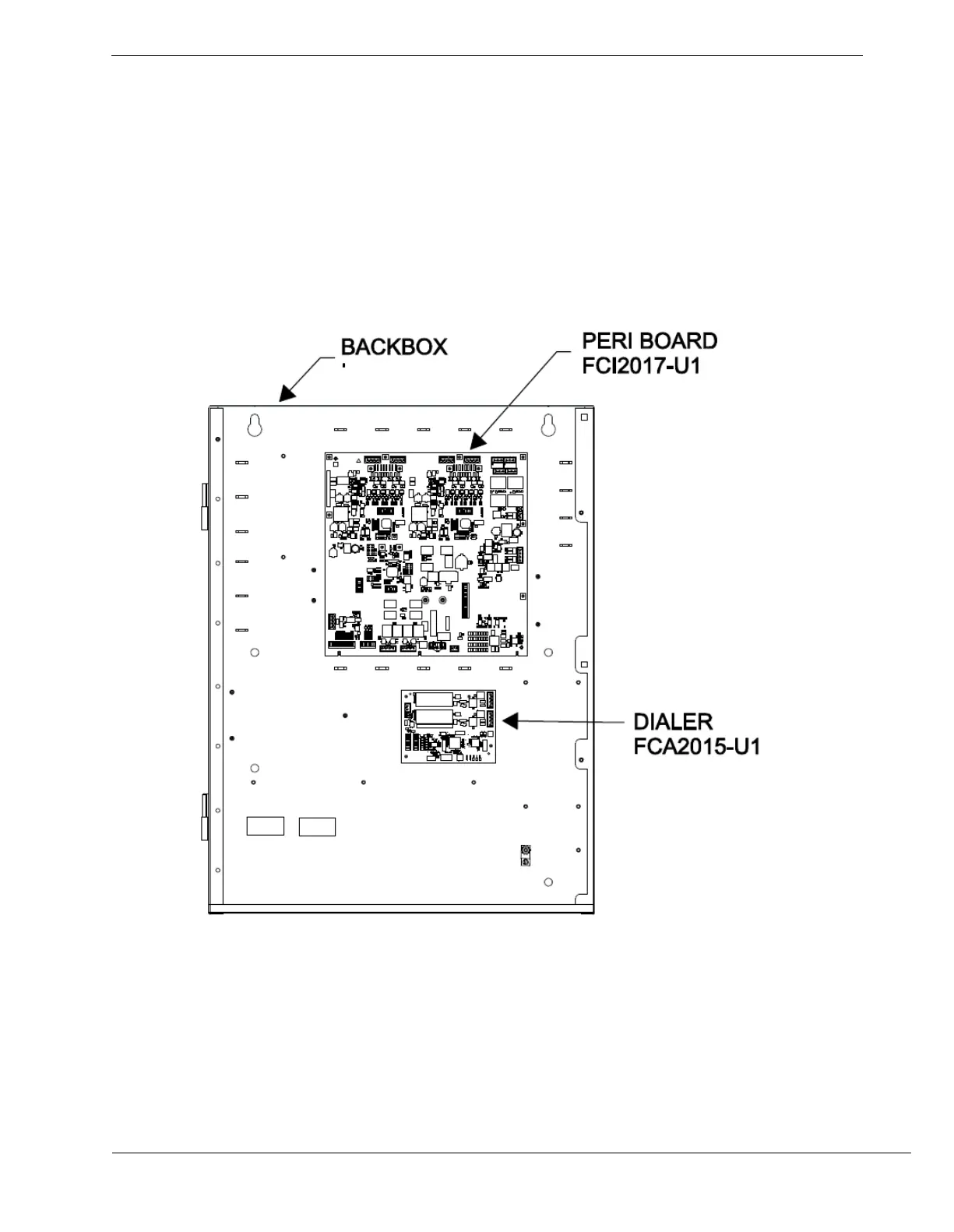

DACT board is mounted on the FS20 Cabinet Main board. The DACT Board option is set
through the control panel programming sequence.
The FC2015-U1 module are supplied with the following parts:
1 DACT Board (Dialer)
4 Screws
1 Serial Communication Cable
4 1 x1/4Hex Male to Female Standoff
1 Installation Instruction
