FS20 Marine Fire Detection Control Panel
Siemens Industry, Inc. A6V10519176_enUS_b
Building Technologies Division

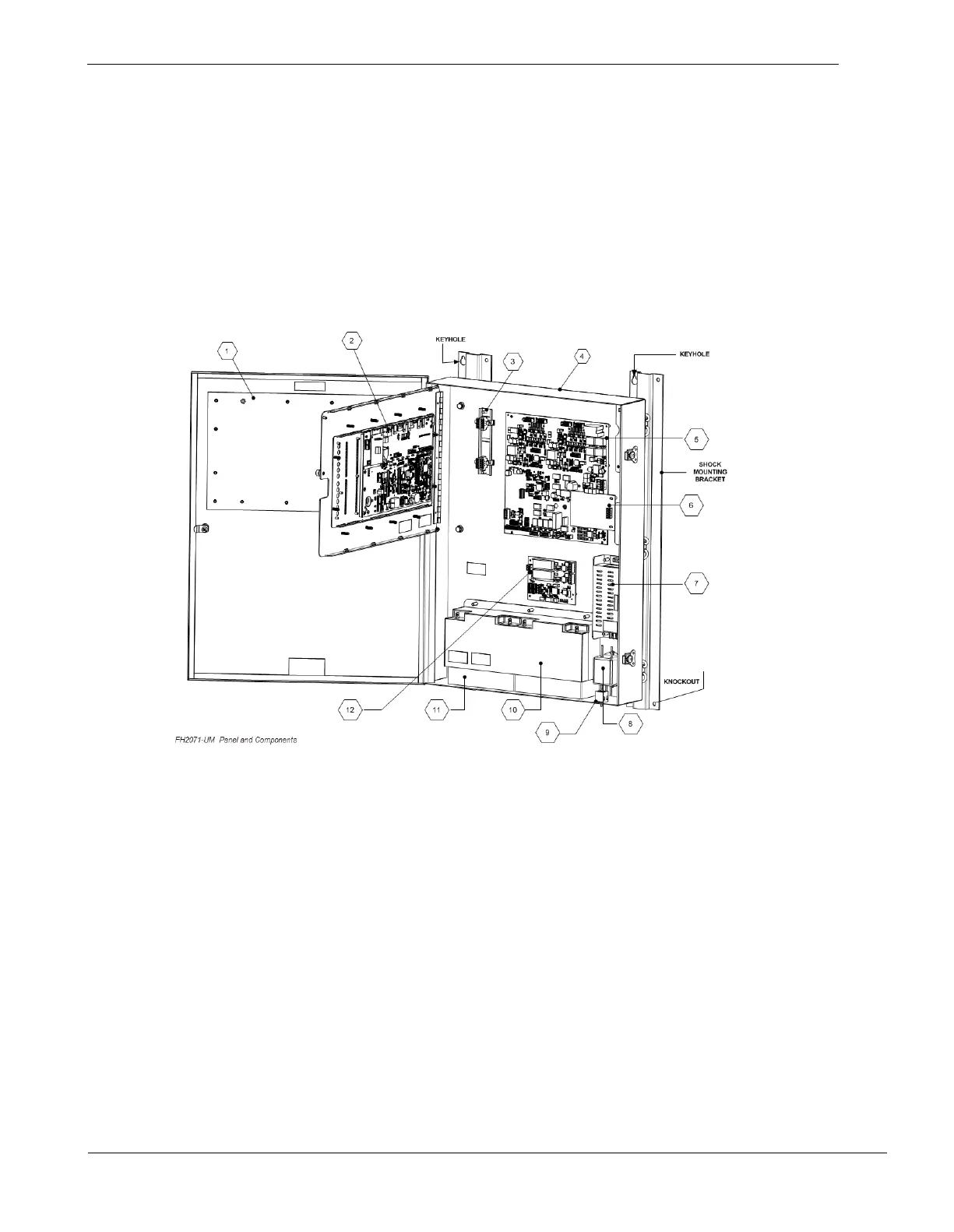

5 Standard Structure of FS20 Panel
This section describes a typical view of the FS20 FACP for Marine Application.
The model FH2071-UM enclosure is used to house all system modules that are approved by the U.S. Coast Guard.
The enclosure is shipped with shock mounting brackets already in place. A US Coast Guard approval nameplate is
positioned on the front door of the enclosure for authentication at the time of installation.
1 FH2071-UM Outer Door 3 FHA2031-U1 DIN Rail
2 FCM2018-U2 Standard Operating Unit
(Desigo)
FCM2018-U3 Standard Operating Unit
(Cerberus Pro)
FCM2019-U2 Standard Operating Unit
(Desigo)
FCM2019-U3 Standard Operating Unit
(Cerberus Pro)
FCM2035-U2 Standard Operating Unit
(Desigo)
FCM2035-U3 Standard Operating Unit
(Cerberus Pro)
4
5
6
7
8
9
10
11
12
FH2071-UM Backbox enclosure
FCI2016-U1 / FCI2017-U1 Periboard
XCI-2001-U1 Releasing Module
FP2011-U1 Power Supply 170W
EMI Filter
AC Power Terminal Block
Battery Bracket
BP62 Battery*
FCA2015-U1 DACT module
* Marine panels must use the BP62 battery to with stand high temperatures of 195°F.
