FS20 Marine Fire Detection Control Panel
Siemens Industry, Inc. A6V10519176_enUS_b
Building Technologies Division
12 Periboard Installation, Wiring and Jumpers
Set-Up
12.1 Installation of the Periphery Board
The chapter describes how to install periphery board FCI2016-U1/ FCI2017-U1 in the
fire control panel.

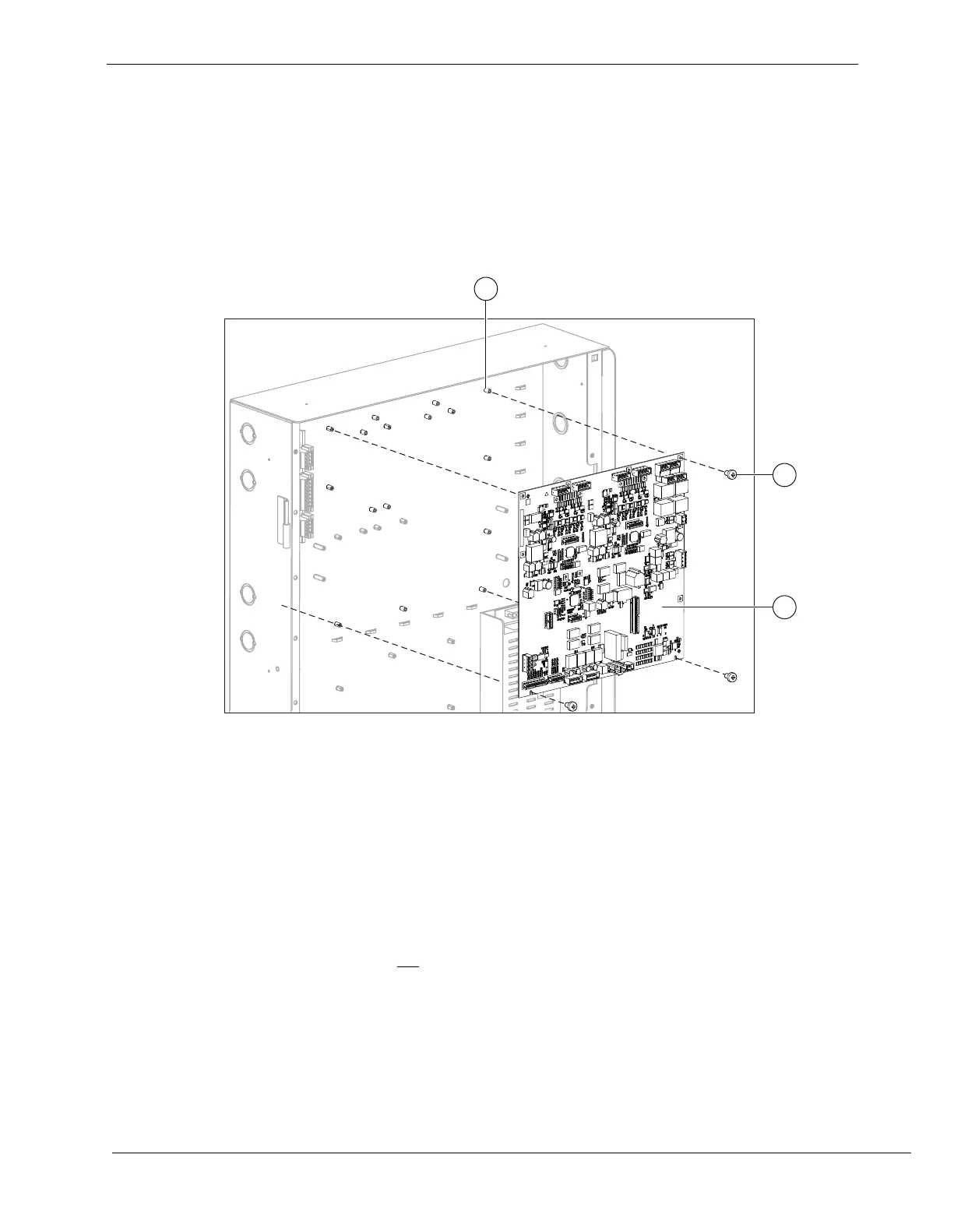

Installing the periphery board
1 Threaded sleeves on back box
2 13x fixing screw
3 Periphery board
The Back Box is installed.
The openings for passing through cables have been drilled.
The mains cable is fed through and is disconnected from the power supply.
The batteries are not installed or connected.
1. Install the periphery board (3) on the threaded sleeves (1) of the back box with the
13 fixing screws (1).
2. Wire the periphery board according to the following pin assignment.
3. Set the jumpers
4. Re-install any module that you may have had to remove.
