FS20 Marine Fire Detection Control Panel
Siemens Industry, Inc. A6V10519176_enUS_b
Building Technologies Division
5.2 Installation
The Enclosure kit model FH2071-UM for use in ‘Coast Guard’ installation is shipped as a complete
package. When mounting the enclosure, consider the following:
Mounting height for visual and manual access to the keyboard/annunciator
Weight and size of enclosure (48 lbs, 22” W x 6
5
/
16
D x 30
5
/
8
H)
Local mounting access

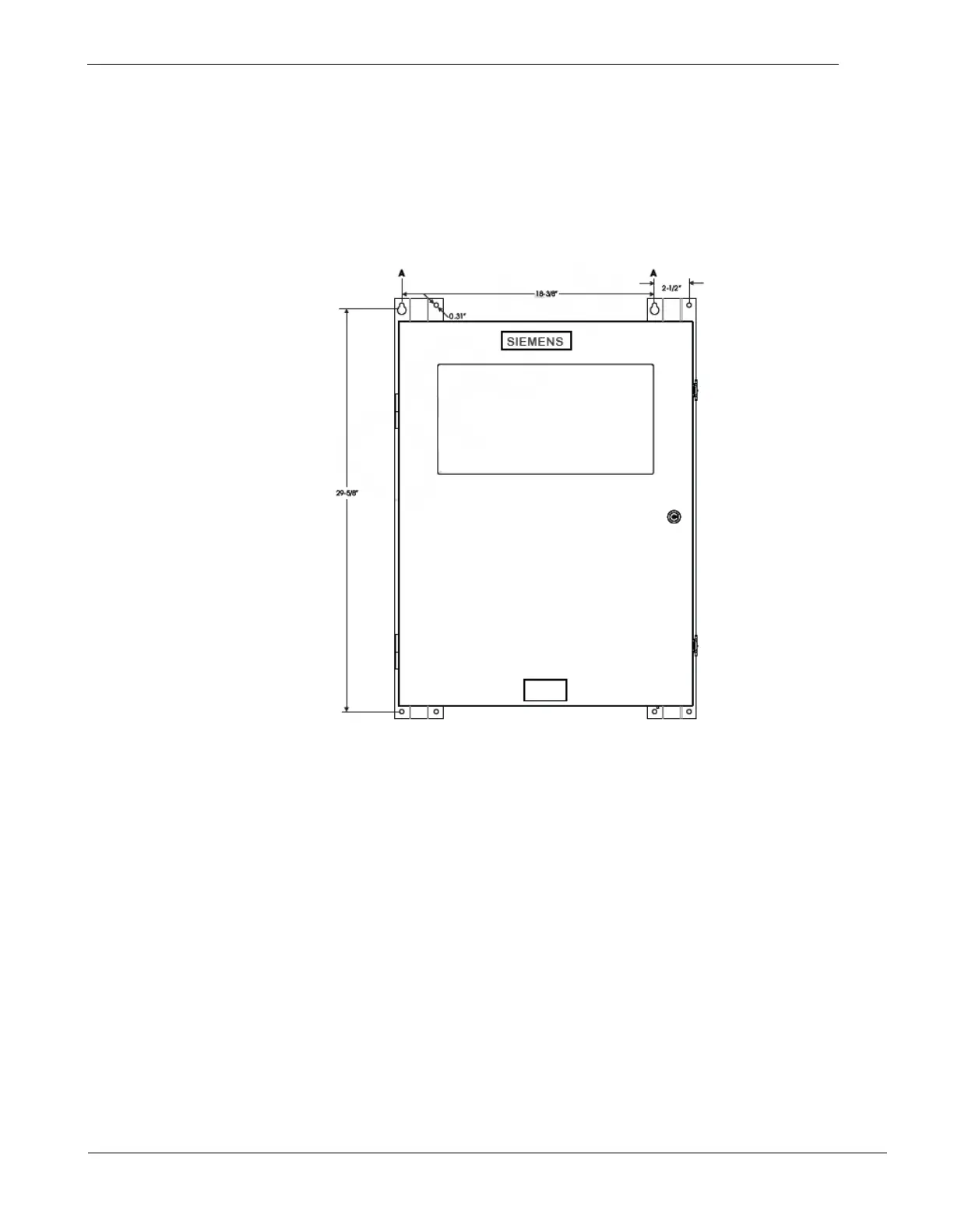

FH2071-UM Enclosure
1. Hold the empty enclosure against the wall at a height that provides easy access.
2. Mark drill points on the wall in the center of the two keyholes slots (mark A in
FH2071-UM
Enclosure
image) on the upper rail that are attached to the enclosure.
3. Drill the two holes. Screw in the top bolts (user supplied), leaving a small gap between the
wall and each top bolt.
4. Mount the enclosure/rail assembled on the two bolts.
5. Mark drill points on the wall for remaining six holes in the rails. Drill the holes.
6. Install bolts in the remaining two holes in the top rail and four holes in the bottom rails.
Tighten all bolts securely.
7. Install the BP62 battery set in the enclosure; first remove the 16Ah battery bracket (FHA2032-
U1) from the bottom left hand corner of the enclosure by removing the three nuts and
washers. Place the nuts and washers on the side. Install the battery. Replace the battery
bracket and secure it in place with the three nuts and washers. For further details on installing
the batteries, refer to page 44, ‘Batteries FHA2042’.
