Siemens FC924 User Manual

FS20 Marine Fire Detection Panel Control Panel
34
Siemens Industry, Inc. A6V10519176_enUS_b
Building Technologies Division

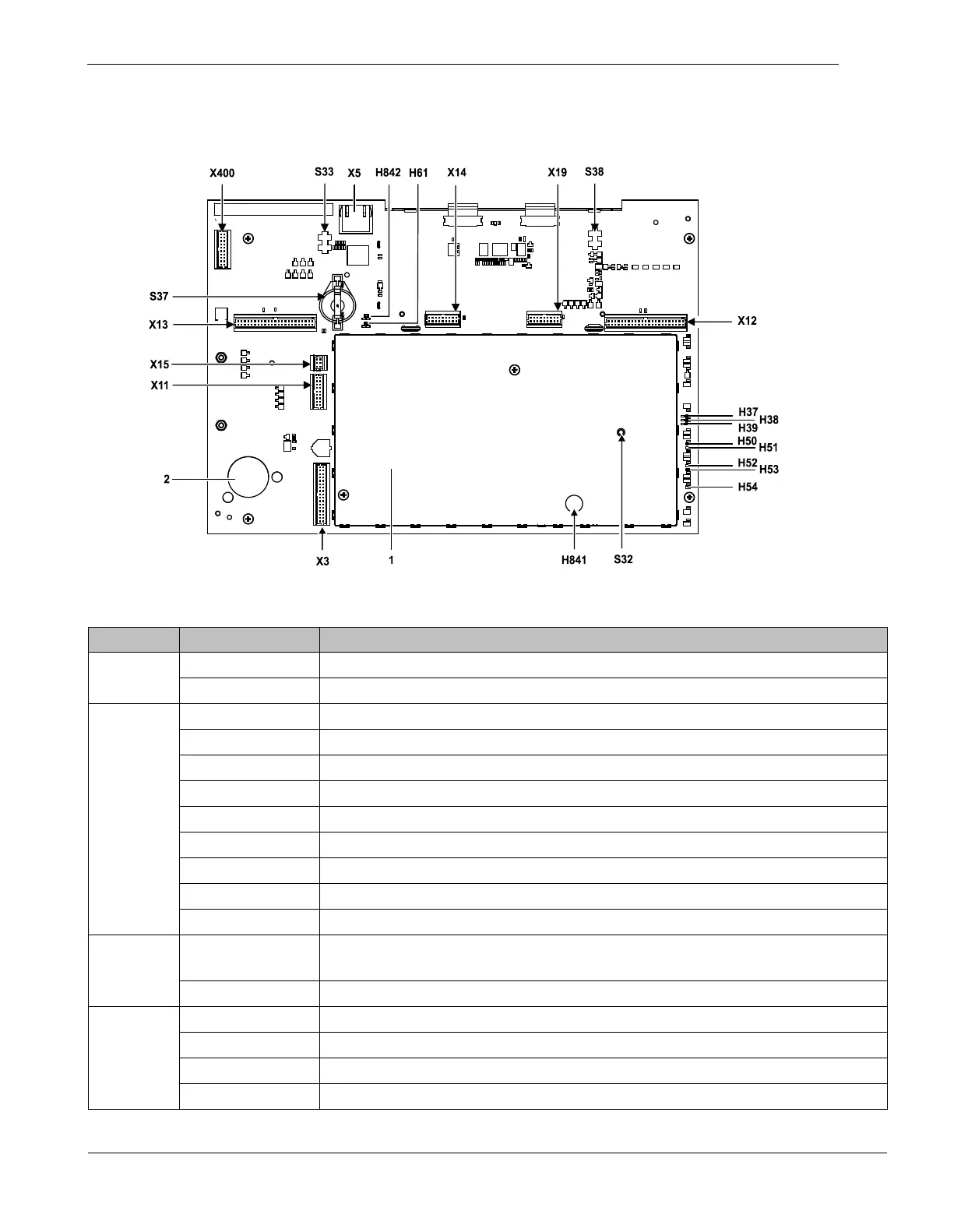

6.6 View of Operating Unit & Main Board
Equipment for Operating Unit & Mainboard FCM2027
Element
Des.
Function
Position 1 Shield plate
2 Space for key switch (T45)
Plug
connections
X3 Connection for periphery board or fire terminal board (supply and data signals)
X5 Ethernet connection
X11 Not used
X12 Not Used
X13 Slot for network module (SAFEDLINK) FN2001-U1
X14 Slot for RS-485 class A module (isolated) FCA2016-U1
X15 Not used
X19 Slot for RS-485 class A module (isolated) FCA2016-U1
X400 Connection for peripheral data bus
Indicators H37-H39, H50-H54,
H61 &H842
LED indicators
H841 Buzzer
Switch, keys S32 Reset key
S33 Switch for ground fault supervision of the Ethernet connection
S37 Support for license key
S38 Switch for ground fault supervision of the system supply
