FS20 Marine Fire Detection Control Panel
Siemens Industry, Inc. A6V10519176_enUS_b
Building Technologies Division
6 FCM2018-U2 / FCM2019-U2 / FCM2018-U3 /
FCM2019-U3 / FCM2035-U2 / FCM2035-U3,
Operating Units
View of FCM2018 operating unit
The operating unit is Person Machine Interface (PMI) of the FS20 Panel. It is installed on upper
portion of the cabinet.

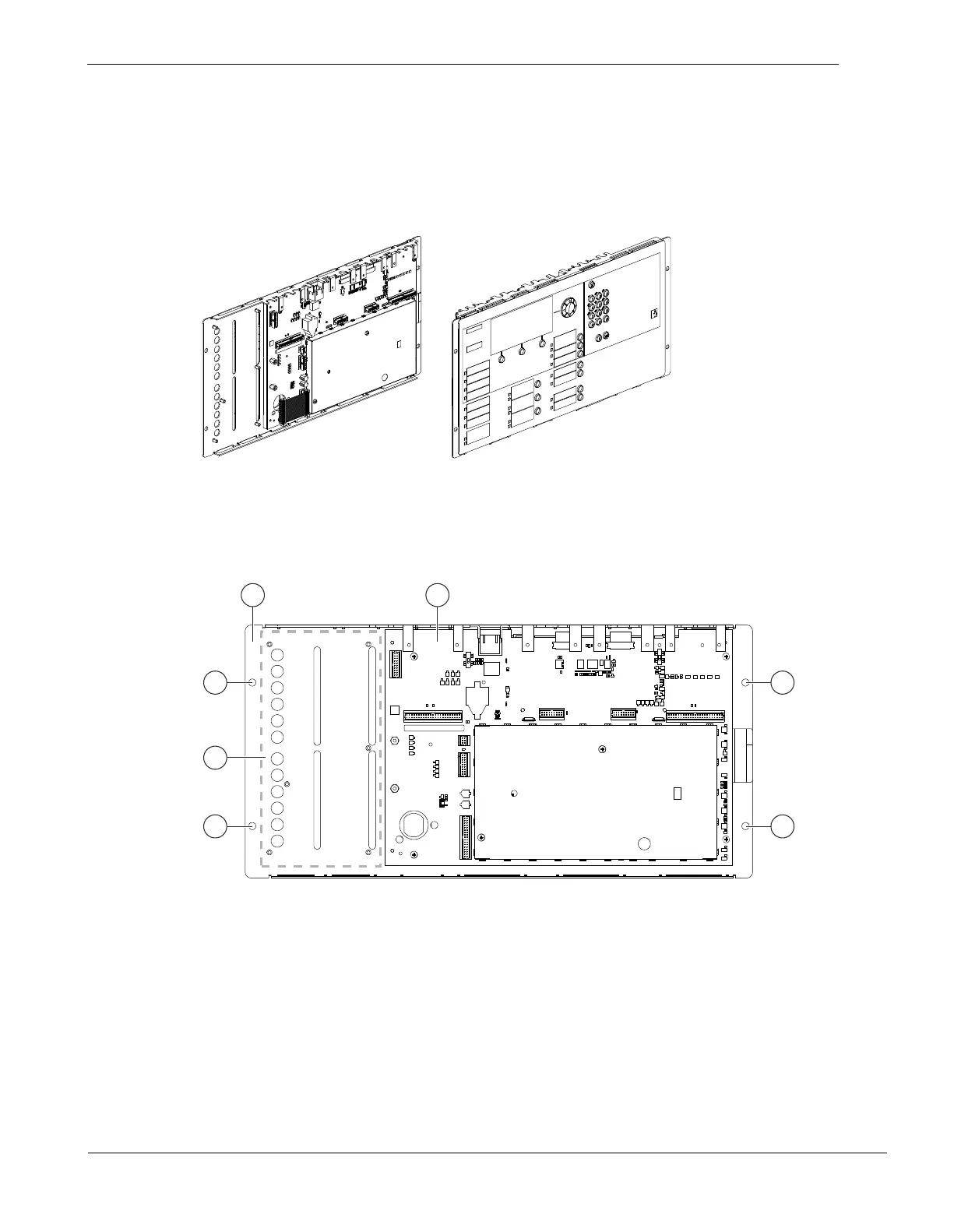

Rear view of operating unit FCM2018 with Operating Unit & its Mainboard FCM2027
1 Operating unit carrier plate
2 System Operating Units & Mainboard FCM2027
3 Mounting holes for installing on the inner door
4 Space for LED module for operating unit (+LED) FCM2019-U2
