FS20 Marine Fire Detection Control Panel
Siemens Industry, Inc. A6V10519176_enUS_b
Building Technologies Division
8.1 Laying and Connecting the Mains Cable for the Power
Supply (170 W)

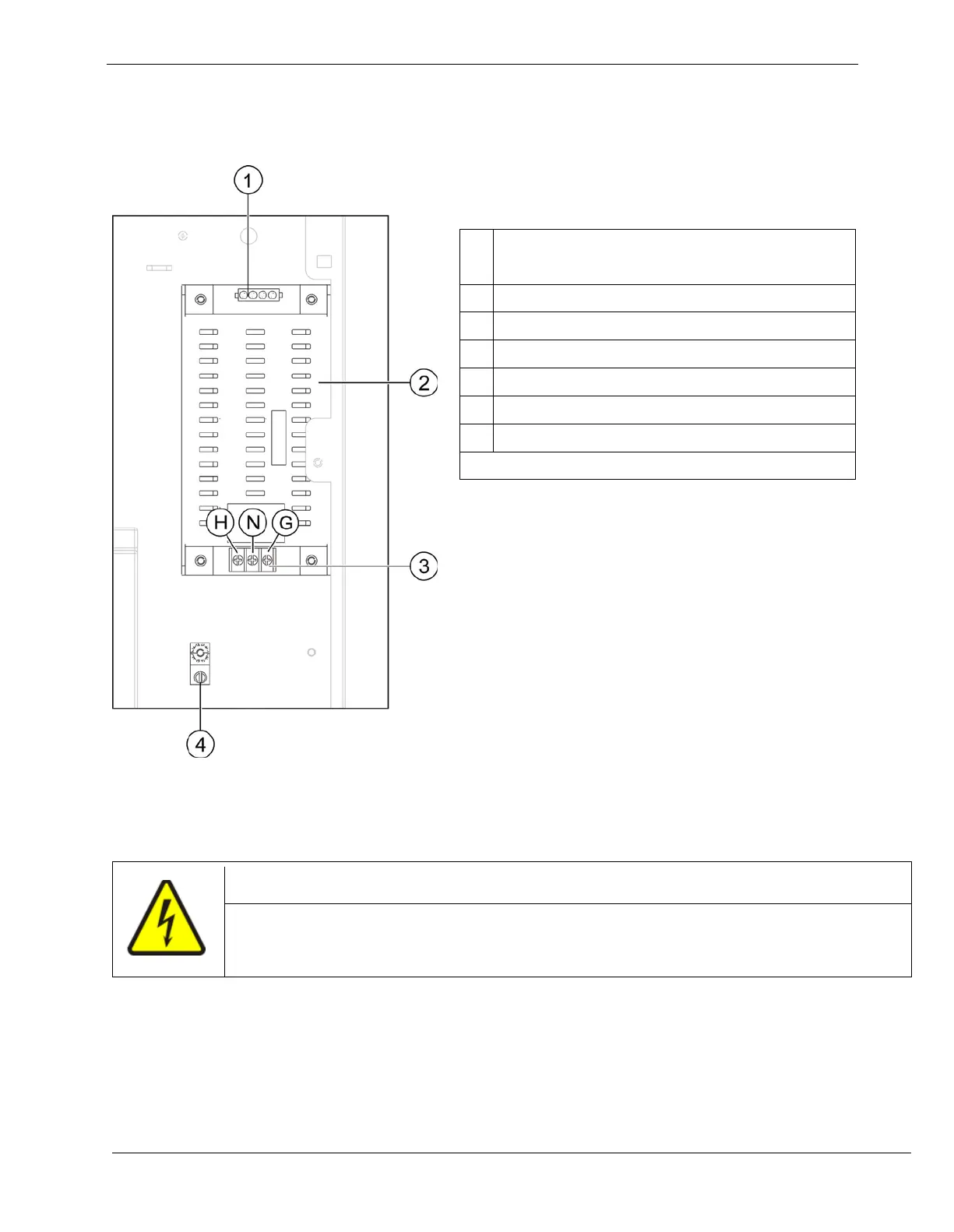

Mains cable wiring for the power supply (170W)
Before feeding in and laying the mains cable, disconnect it from the power supply. Secure the mains
connection against inadvertently being switched on.
1 Secondary output slot or connection cable for
periphery board
2 Power supply (170W) FP2011-U1
3 Primary input screw terminal
4 Back box ground connection
H ‘Hot’ connection (black)
N “Neutral’ connection (white)
G ‘Ground’ connection (green)
* See following section for installation of the EMI Filter
