FS20 Marine Fire Detection Control Panel
Siemens Industry, Inc. A6V10519176_enUS_b
Building Technologies Division
18.2 Installation
The releasing module XCI2001-U1 is installed on the periphery board as shown and
screwed onto the back box. Slot X901 is also used for the NAC module (1A/2B).

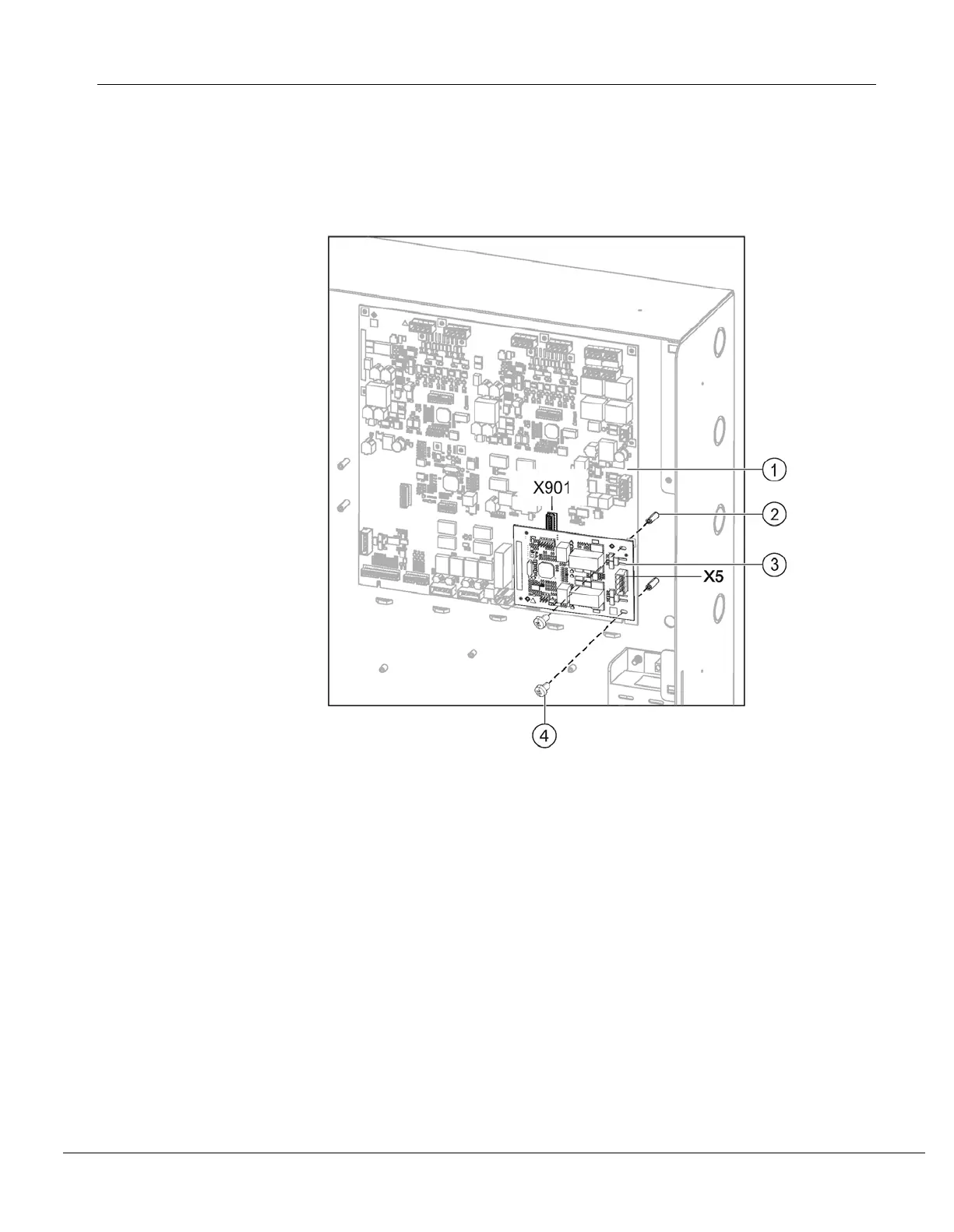

Installation of releasing module on the periphery board
1 Periphery board (252p) or periphery board (504p)
2 Threaded sleeves on back box
3 Releasing module XCI2001-U1
4 2x fixing screw
X901 Slot in periphery board
X5 Connection terminal on releasing module
1. Plug the releasing module (3) into slot X901 on the periphery board.
2. Fasten the releasing module to the threaded sleeves (2) in the back box using
the two fixing screws (4).
3. Wire up the releasing module according to the pin assignment.
