Siemens FC924 - Power Supply Location

FS20 Marine Fire Detection Control Panel
40
Siemens Industry, Inc. A6V10519176_enUS_b
Building Technologies Division

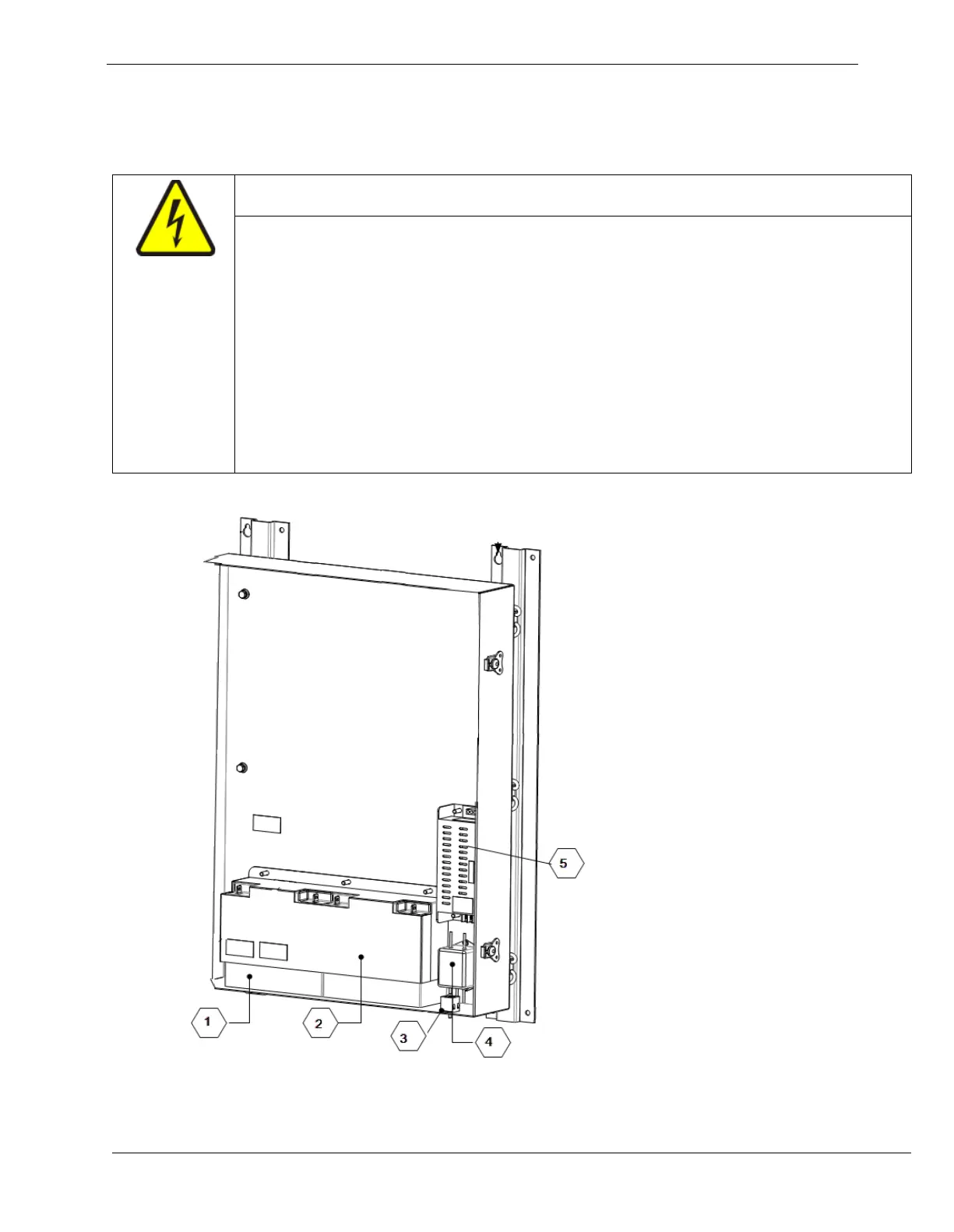

7.2 Power Supply Location
WARNING
Electrical Voltage
Electric Shock
● Before feeding in and laying the mains cable, disconnect it from the power supply.
● Secure the mains connection against inadvertently being switched on.
● The mains cable must be fed in at the side from below.
● The mains connection must be placed along the right side of the enclosure (no EMC zone).
● Signal and control circuits must only be fed into the enclosure on the left or from above.
● Batteries must be installed so that they cannot leak.
● No cable openings should be made in the base of the enclosure, unless an additional
enclosure is mounted below the panel to accommodate the batteries.
1
2
3
4
5
Batteries (BP-62)
Battery Bracket
AC Terminal Block
EMI Filter
FP2011-U1 Power
Supply
