FS20 Marine Fire Detection Control Panel
81
Siemens Industry, Inc. A6V10519176_enUS_b
Building Technologies Division
15.4 Views
H2
1
X3
H3 H2
H1

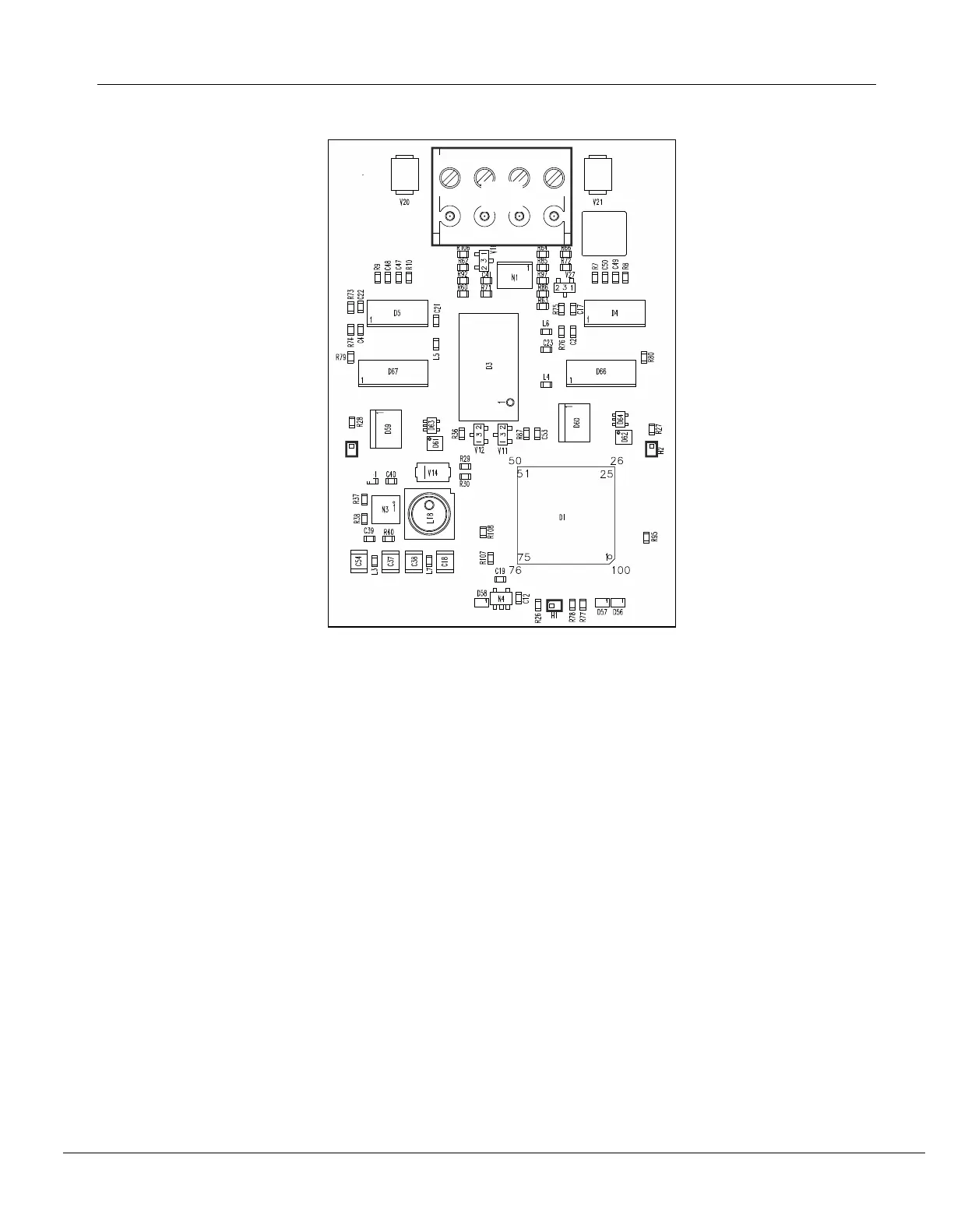

Frontal view of the network module (SAFEDLINK) FN2001
X1 Connector to the Operating Unit & Mainboard (connector on rear panel)
X2 Connector to the FCnet/C-WEB circuits (connector on rear)
X3 Connector to FCnet circuits; used with FS20
H1 LED green, status indicator for the network module
H2 LED yellow, status indicator for circuit 1
H3 LED yellow, status indicator for circuit 2
