17.3 Views
X602
1
1
1
1
1
1
X603
X5
X605
X606
X604
X1

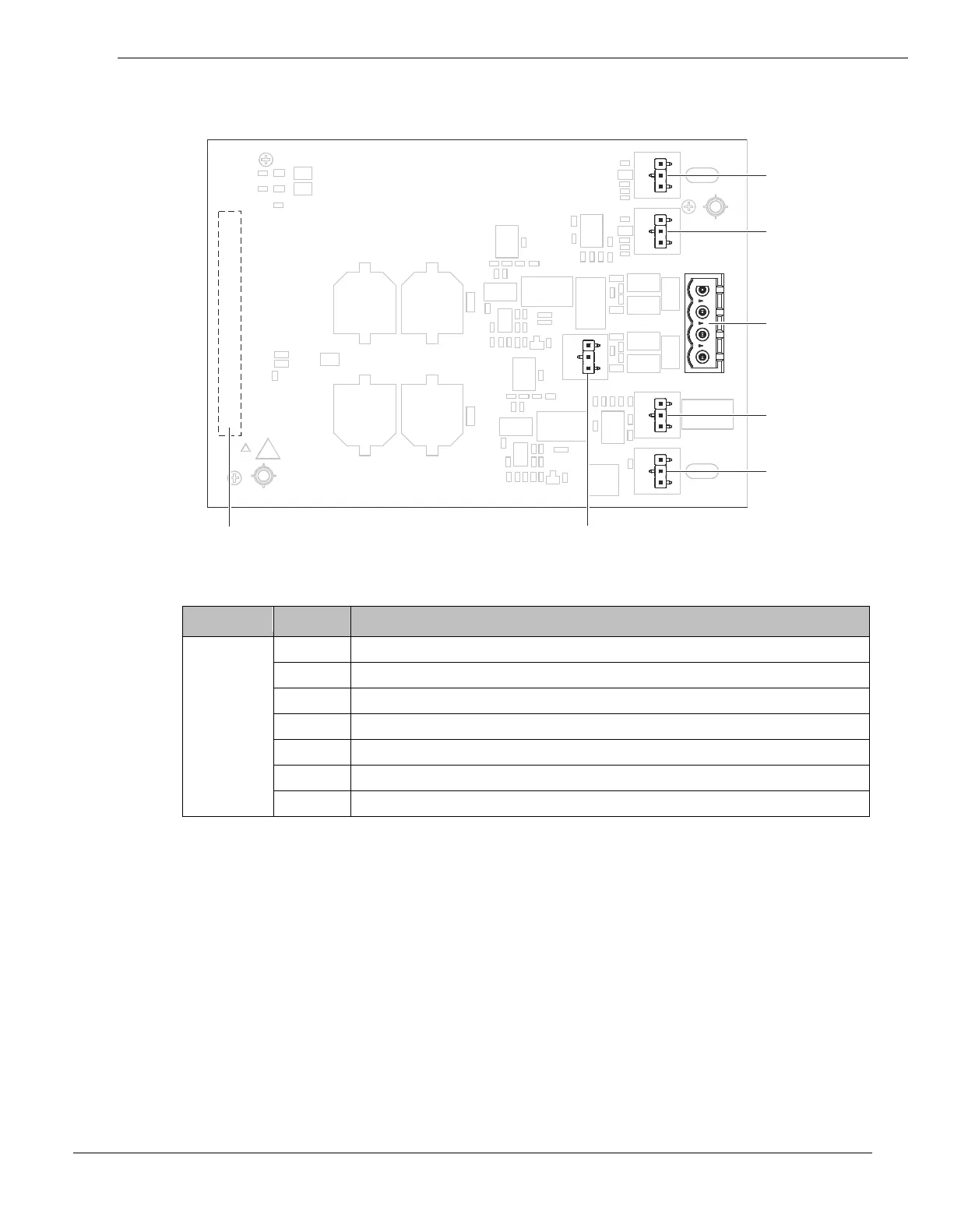

Printed circuit board view for FCI2011
Element
Des.
Function
Connector X1 Connection to periphery board
X5 NAC 2 output
X602 DEGRADED MODE ENABLE/DISABLE for NAC 2 class A or NAC 2-1 class B
X603 DEGRADED MODE ENABLE/DISABLE for NAC 2-2 class B
X604 NAC 2 class A/B selection
X605 NAC 2 class A/B selection
X606 NAC 2 class A/B selection
