FS20 Marine Fire Detection Control Panel
Siemens Industry, Inc. A6V10519176_enUS_b
Building Technologies Division

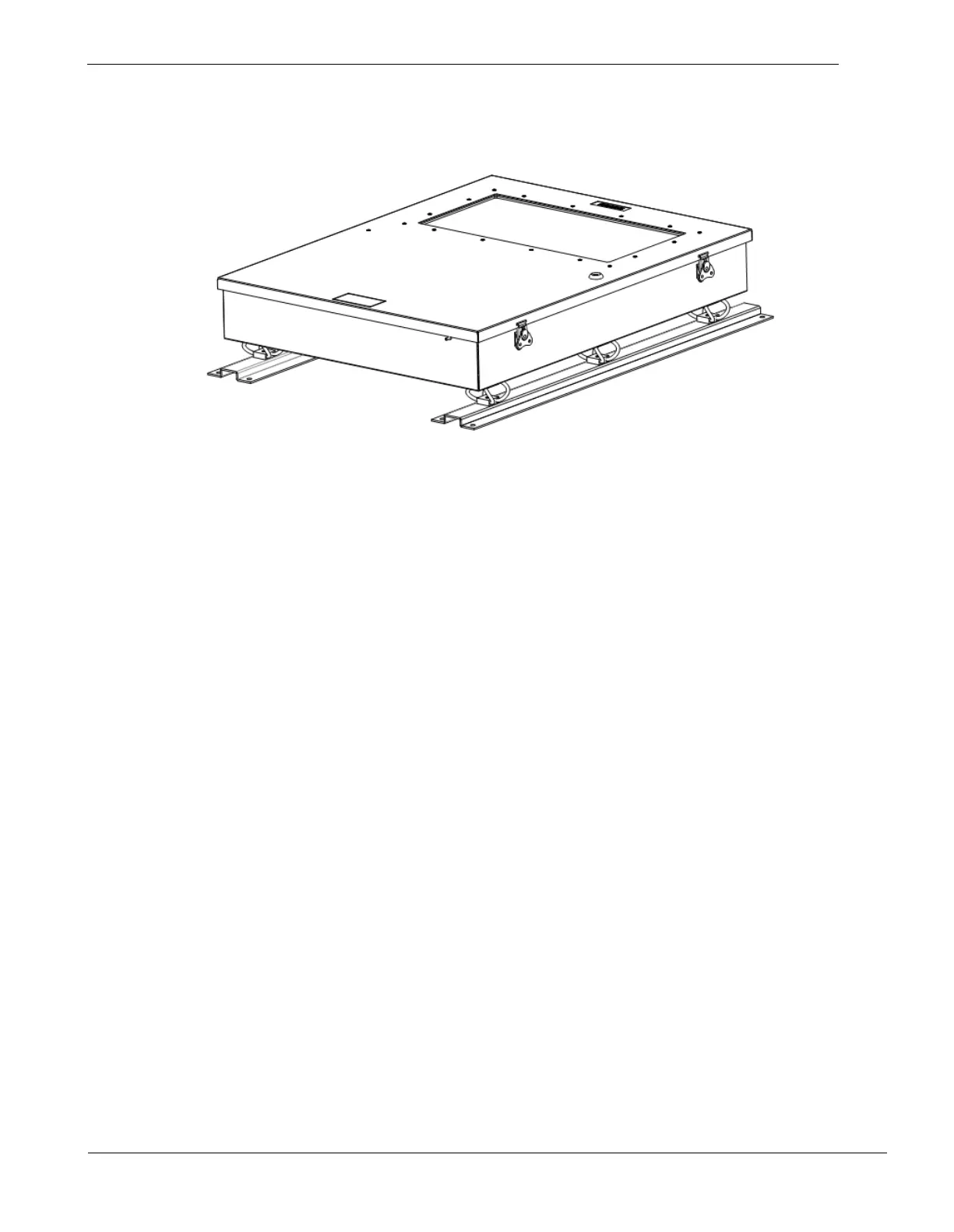

5.1 FH2071-UM Marine Enclosure
FS20 Fire Control Panel for Marine Application
The FH2071-UM Marine Enclosure is specifically designed for Marine Application. It comes built and installed in
shock-mounting plate and has a tight-locking seal to close the unit. This allows the electronics therein to protect
from exposure to harsh marine environment. In addition, this enclosure has the following equipment installed:
- EMI Filter
- AC Power terminal block
- Seismic Battery bracket
The enclosure will house the control panels, extensions, additional extensions and/or option components. The
enclosure has the following features:
-
Opening for cable supplies
-
Protected room for installed components
-
Access to the components through closable door
-
Variable use through various doors
-
Four-point wall fastening
Table 3: FH2071-U1 Technical Data
Outer door Enclosure material Sheet metal 0.062"
Surface treatment Galvanized, annealed
Inner door Enclosure material Sheet metal 0.062"
Surface treatment Galvanized, outside annealed
Back box Enclosure material Sheet metal 0.062"
Surface treatment Galvanized, sprayed
Windows Material Lexan, clear
Dimensions ( W- H- D) Outer door (1HU) 15.5" x 21.45" x 0.97"
Inner door 20.62" x 13.25" x 0.68"
Window 16.50" x 8.30" x 0.125"
