Supplied Installation Material
4x Screws for securing the operating unit
1x Ribbon cable for the connection of the Operating Unit & Mainboard to the periphery board
1x Inscription set or inscription sheet for operating unit.

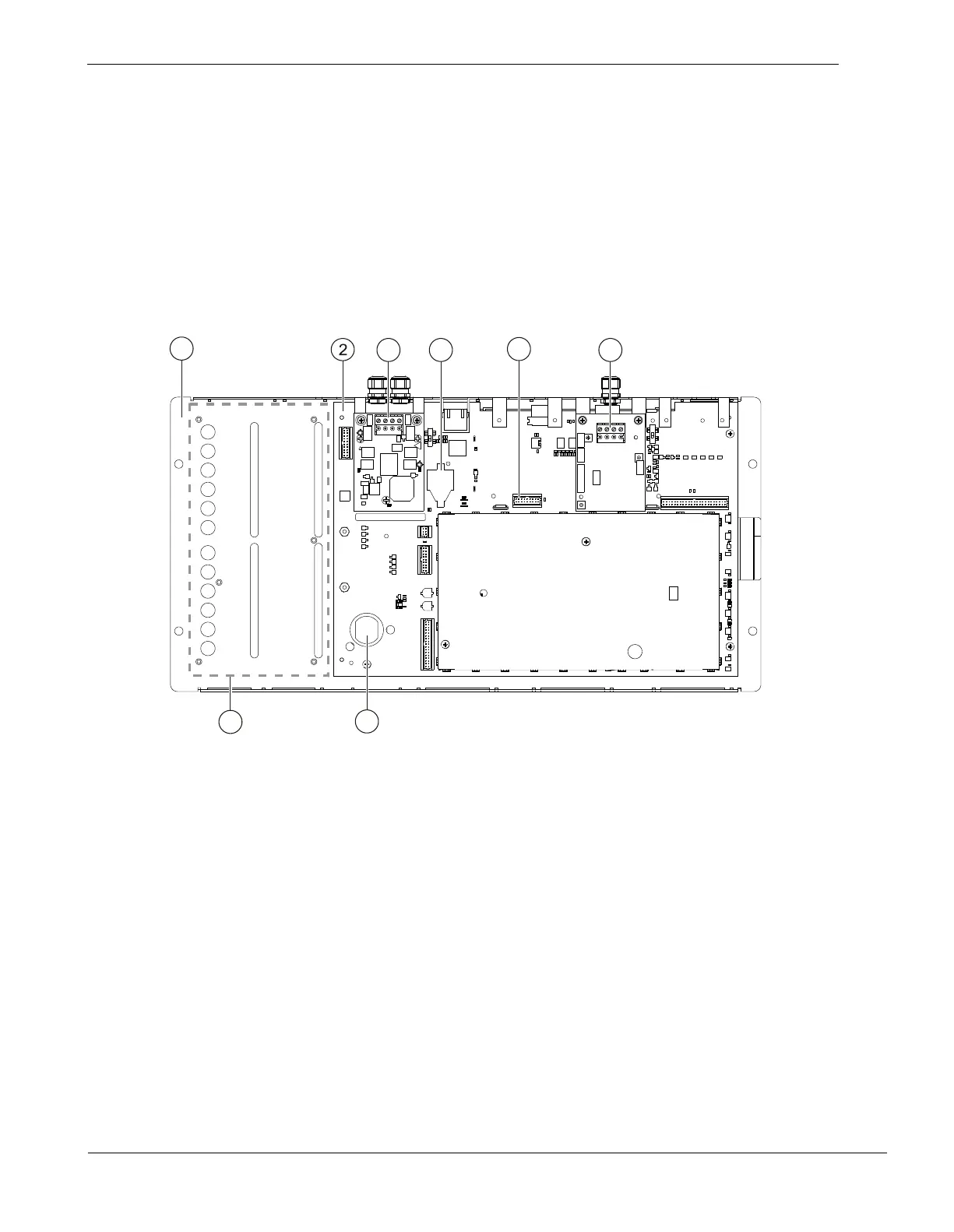

6.1 Components on the Standard Operating Unit
(FCM2018-U1)
1
3
6
4
7
8
5
1 Carrier plate for Operating Unit & Mainboard
2 Standard Operating Unit & Mainboard FCM2027-U1
3 FN2001-U1 Network module (SAFEDLINK) on X13
4 Retainer for license key
5 X14, additional space for RS-485 class A module FCA2016-U1
6 RS-485 class A module FCA2016-U1 on X19
7 Opening for key switch [NOT USED]
8 Area for options or LED module for operating unit (LED)
