FS20 Marine Fire Detection Control Panel
Siemens Industry, Inc. A6V10519176_enUS_b
Building Technologies Division
19.2 Installation

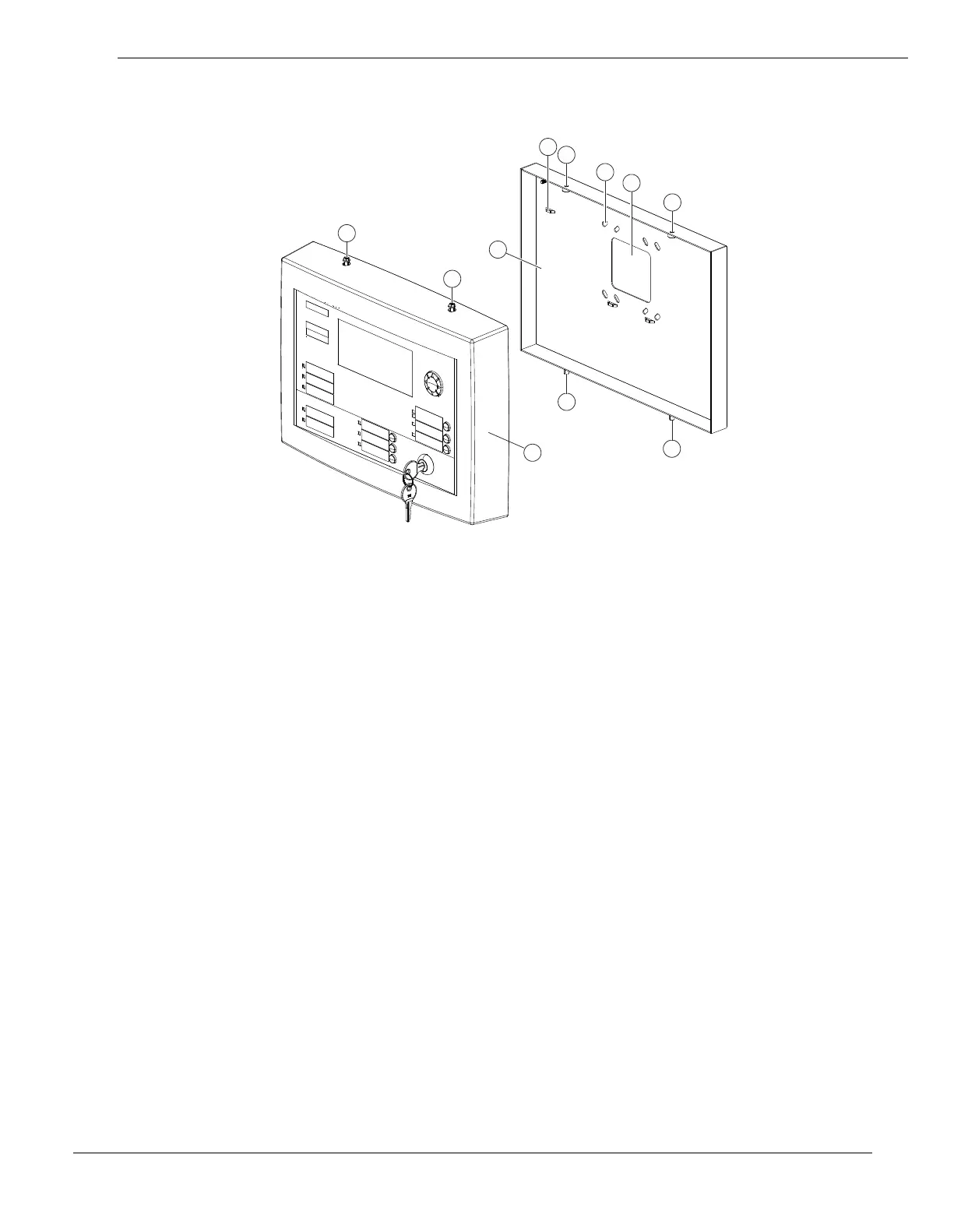

Ft2015-xx Installation view
Installation for the FT2015 terminal
1 Enclosure 5 2x threaded hole for fixing screws
2 2x fixing screw on the top of the
enclosure
6 8x fixing slot for wall mounting
3 Back box 7 Cable entry
4 3x slot for cable tie 8 2x holder cam for enclosure
INSTALLATION
1. Loosen the fixing screws (2) on the top part of the enclosure and remove
the enclosure (1) from the back box (3), by gently lifting it up and pulling
it forward.
2. Position the back box such that the cables can be led correctly through the
cable entry (7). Mark the fixing slots (6) in this position.
3. Drill the holes and secure the back box (3) to the wall by inserting dowel screws
through the fixing slots (6).
4. Wire up the device according to the wiring diagram.
5. Fix the cables to the slots (4) with cable ties and mount the enclosure on the
back box in reverse order to the description under step 1.
