Using a client
6.1 Creating/editing a server selection list
TP1000F Mobile RO
Operating Instructions, 08/2017, A5E39831415-AA
133
2. In the "tree path" box, enter the path to the server within the server selection list. The
"Path" specifies the node in the server tree under which the server connection is created.

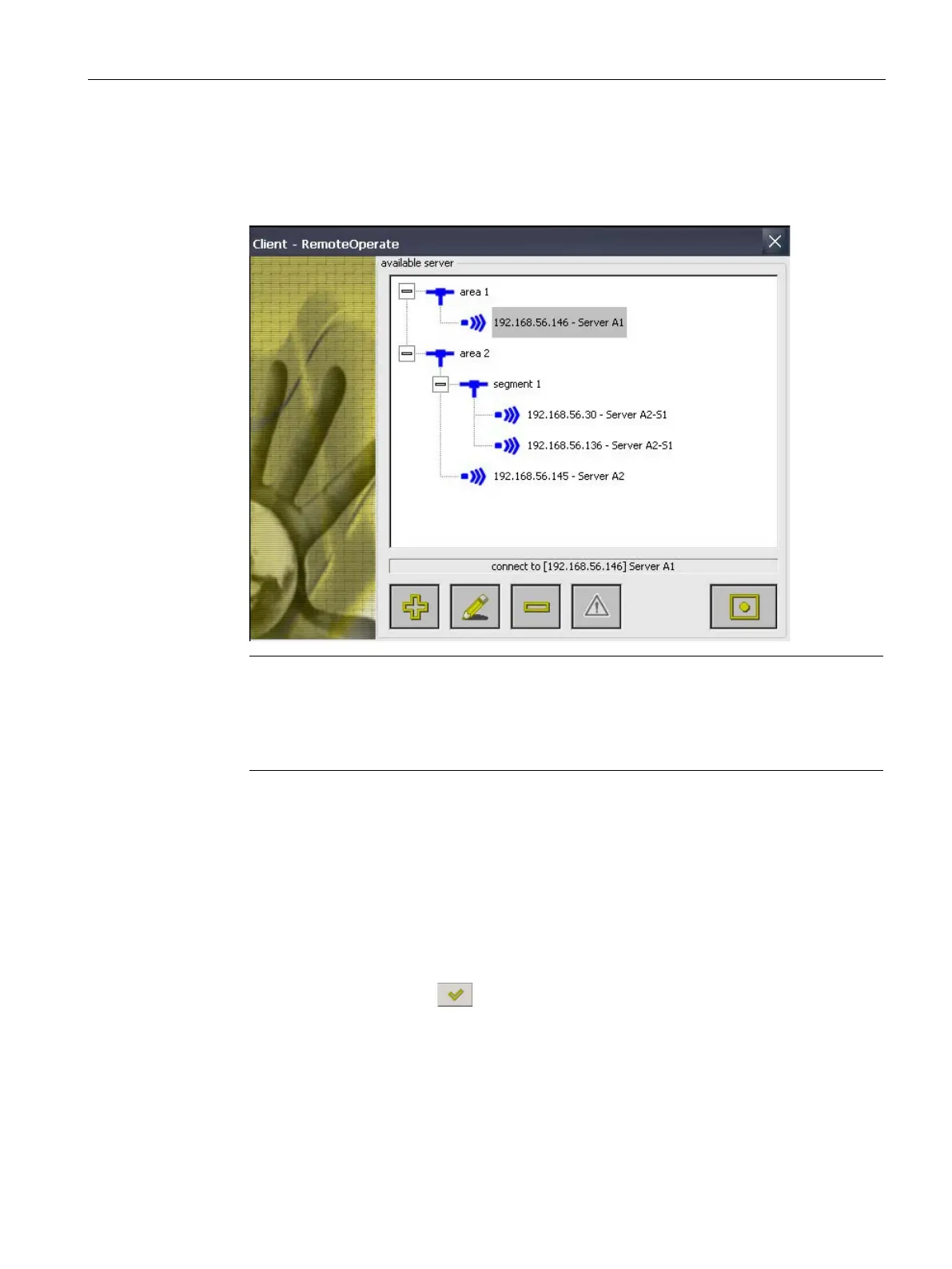

For example, if you specify "\Area1\", the IP address of the server will subsequently
appear under the "Area1" node:
Note
The path of the server selection list has a maximum of three levels. Specify no more than
three path levels for a server, for example "
\area2\segment1\Server A2-S1\".
e path already exists in the server selection list, the new server will be inserted at this
point. If the path does not yet exist, it is created automatically.
3. Enter the IP address of the new server in the "IP address:" input box.
4. Enter a description of the new server connection in the "comment:" input box. This
comment is displayed next to the IP address in the tree of the server selection list.
5. If necessary, change the Client IP and the Client subnet mask of the HMI device. This
creates the subnet. The client must be located in the same network (subnet) as the
server; otherwise you will receive an error message.
Client IP and Client subnet mask are always applied from the last input. These boxes are
only empty when you create the first server connection.
6. Confirm your settings with .
