Situation and task-oriented process views
In addition to the process pictures predominantly oriented to the instrumentation at the
"subsystem" level, which are created based on pipeline and instrument flow charts, you can
also create information-based overview and group displays. These are specially oriented to
the process control task. You can also structure the views hierarchically. The figure below

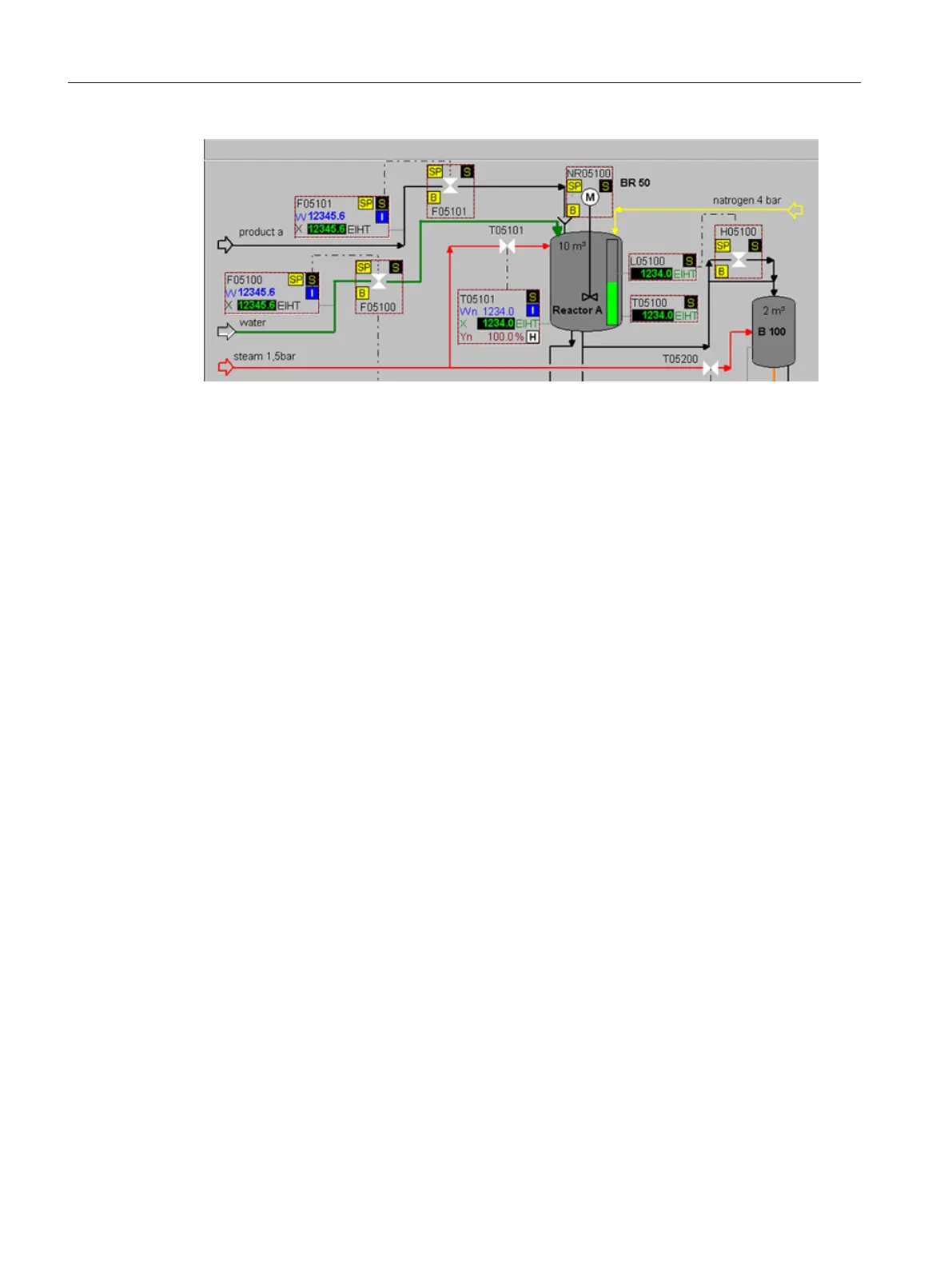

shows the hierarchy level:
Configuring OS functions
10.2 Visualization interface
Compendium Part A - Configuration Guidelines (V8.2)
228 Configuration Manual, 08/2016, A5E38166869-AA
