Overview
This view displays the device parameters saved in the project for field devices that are
integrated using a device description (EDD).

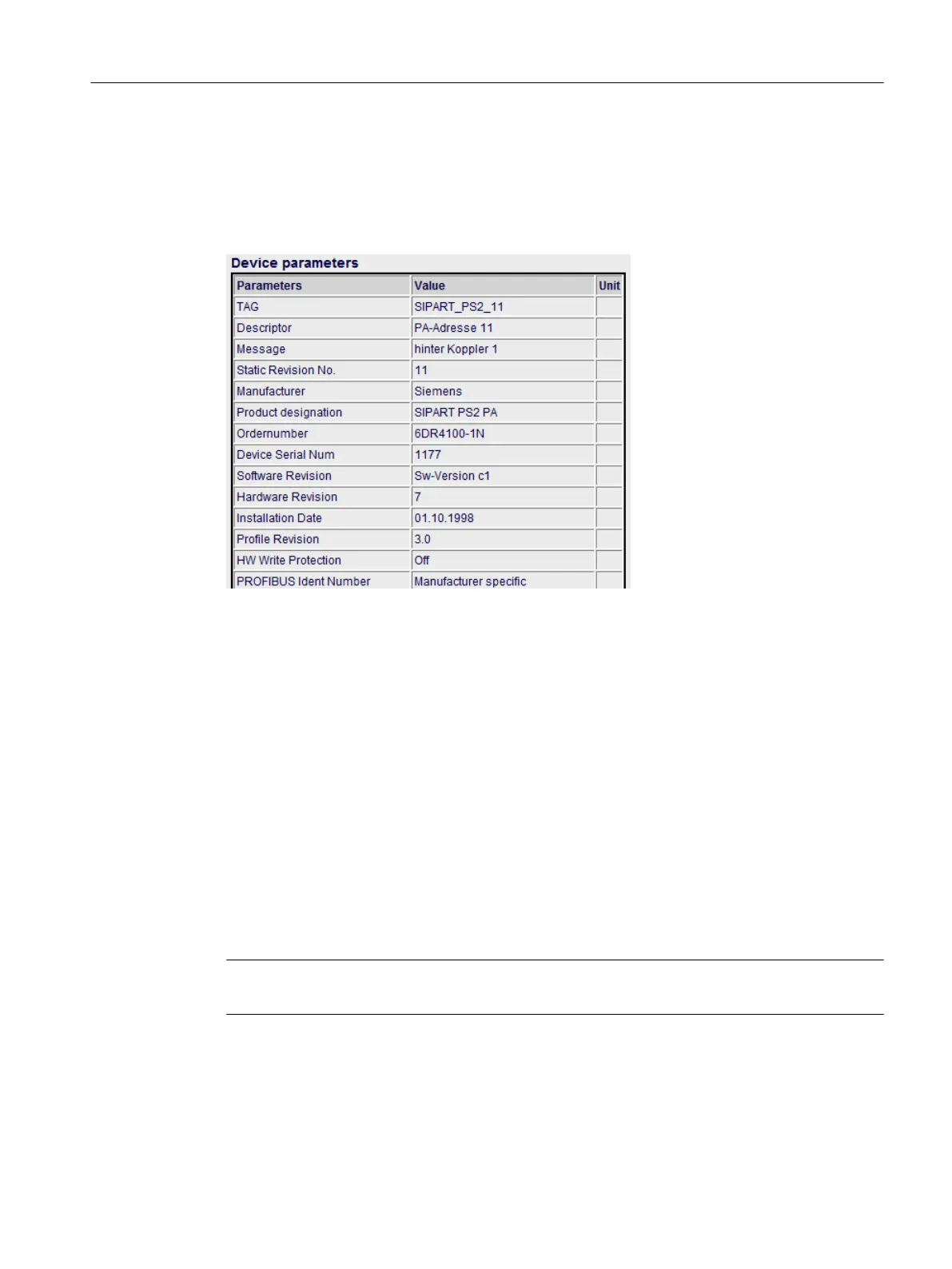

The following figure shows an example of the view:
Additional information
You can find information on error texts in the section "Error texts for field devices/user
objects (Page 180)".
6.11.3.17 "External diagnostics" view
Available
This view is displayed for components from the field devices area.
The view is only displayed for the diagnostic block that is interconnected directly with the
channel block.
If you are operating a module redundantly, the signals are transmitted to the upstream
diagnostic block via the "OR block".
Note
This view is available for the Maintenance Station in the MS Standard version.
Overview
External diagnostic information for the component is displayed in this view.
The following figure shows an example of the view:
Operator control and monitoring
6.11 Faceplate
Maintenance Station
Function Manual, 03/2016, A5E36187641-AA 175
