6.11.3.13 "Diagnostic buffer" view for CPU and CP
Available
The view is displayed for all CPUs and CPs in the central rack and expansion rack.
Note
This view is available for the maintenance station in the MS Standard version.
"Diagnostic buffer of the CPU/CP" overview
This view shows the last 20 events that occurred in the diagnostic buffer of a CPU or CP.

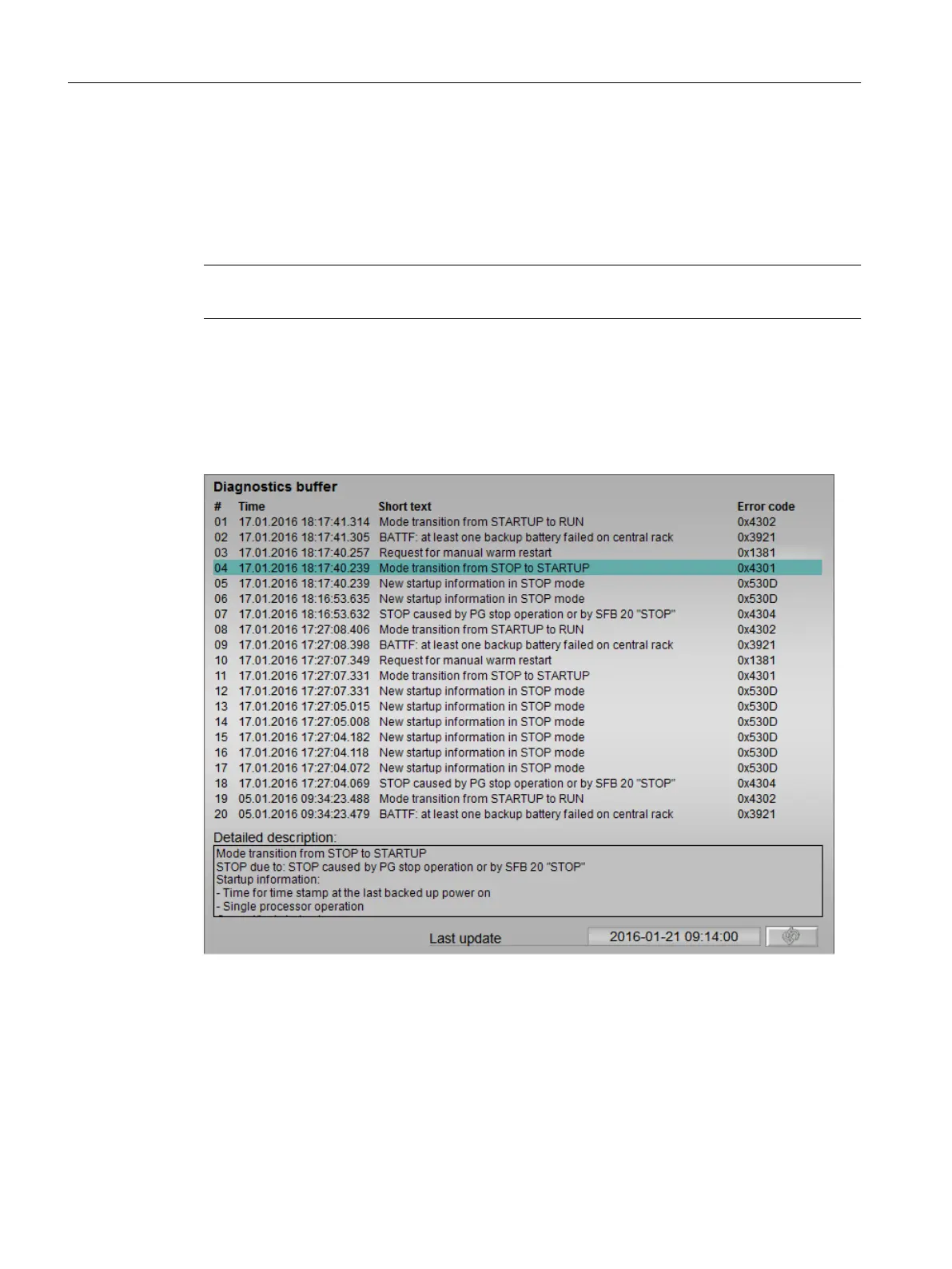

The following figure shows an example of the information from the diagnostic buffer of a CPU:
Display
● Sequential number
● Time
Time when the event occurred
● Short text
Brief information about the event
Operator control and monitoring
6.11 Faceplate
Maintenance Station
170 Function Manual, 03/2016, A5E36187641-AA
