6.11.3.19 "Monitoring" view for user objects
Available
This view is displayed for all components from the user objects area.
Note
This view is available for the maintenance station in the MS Standard version.
If a designation for at least one process value is entered in the EDD, the view can be selected.
Overview
PCS 7 offers the option of setting up, in a user diagnostics structure, monitoring functions for
objects that are not automatically integrated in the diagnostic screens of the maintenance
station. These objects include, for example:
● Values defined by rules or calculations
● Objects that do not support diagnostics (e.g., field devices not recognized in PCS 7)
● Technical areas
● Groups of components
You can show the following monitoring functions in a diagnostics screen:
● Operating hours meter
● Service interval
● Calibration interval

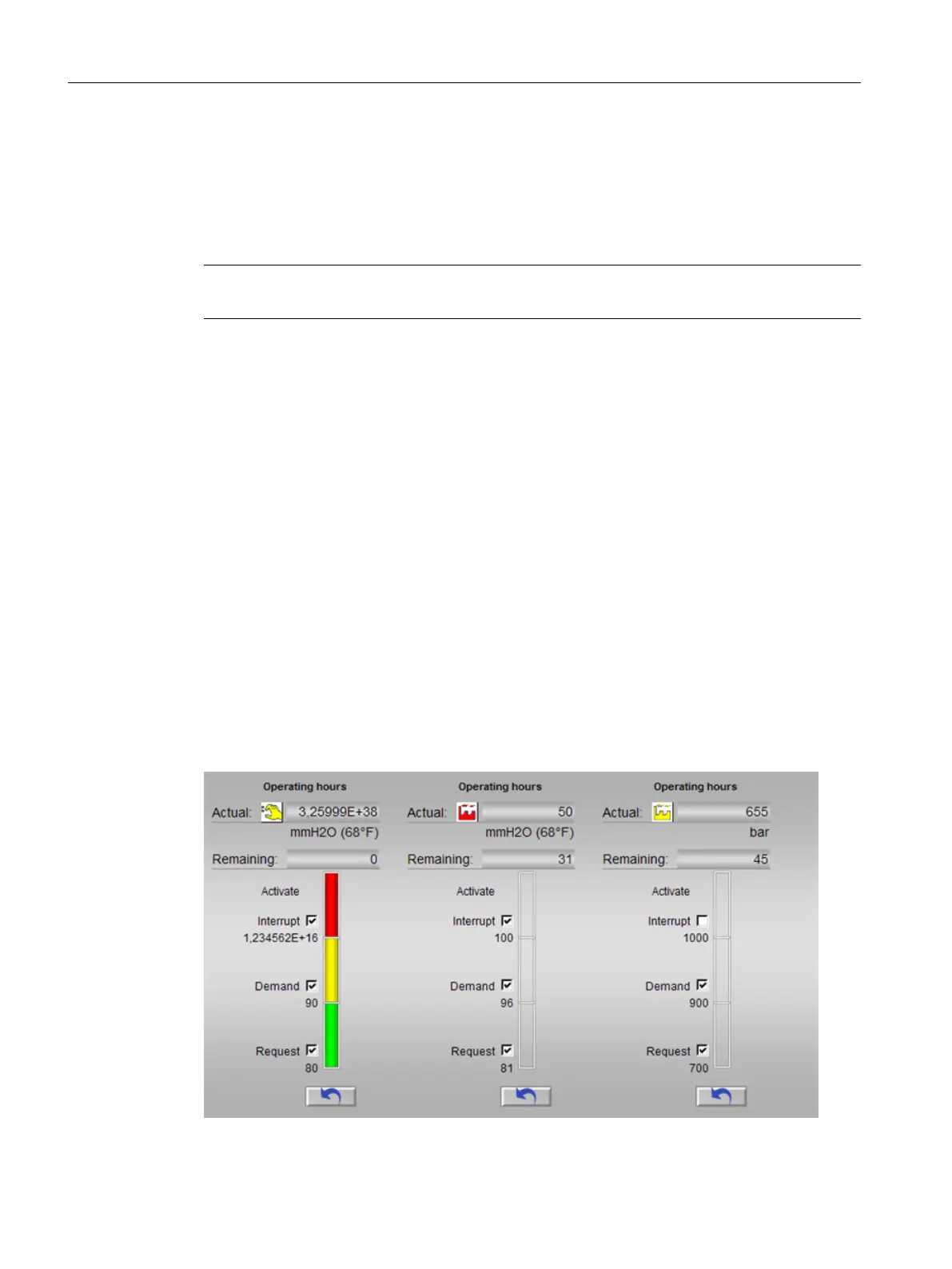

The following figure shows an example of the view:
