Display
If a designation for the process value is entered in the EDD, the corresponding area is displayed
in the view.
● Label for the process value e.g. PV1
The text is configured by the user in the SIMATIC PDM object of the AssetM block in the
EDD.

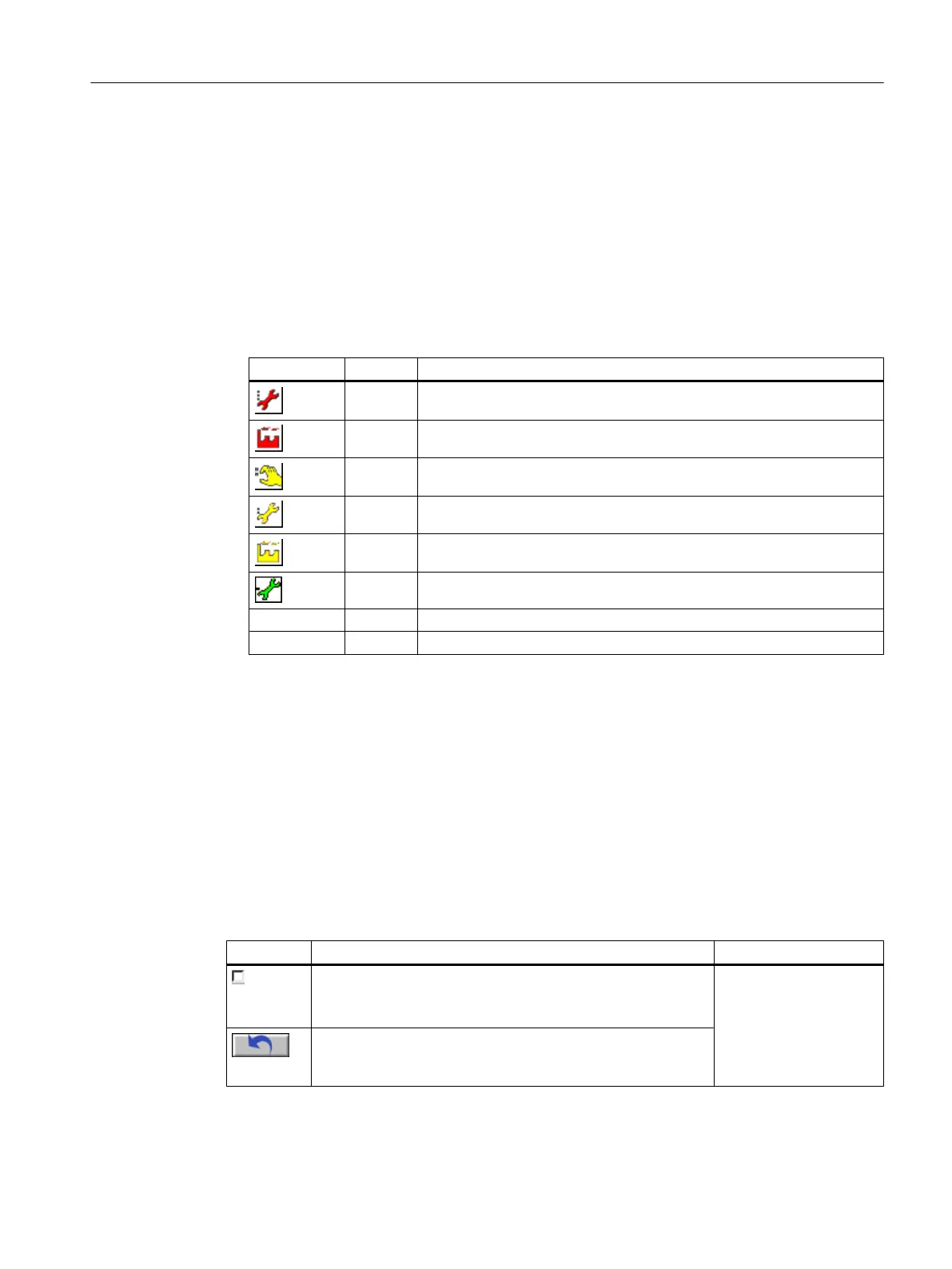

● Signal status
The number in the priority column indicates the priority of the display. The lowest number
has the highest priority.
Display Priority Remark
1 Bad, device-related
2 Bad, process-related
3 Local functional check, simulation
4 Uncertain, device-related
5 Uncertain, process-related
6 Maintenance demanded
None 7 Good
None - Input not connected
● Actual value
The value is read from the AssetM block.
● Remaining value
The difference between the actual value and the next limit value is formed in the AssetM
block.
● Units of measure
The unit of measurement is configured in the AssetM block.
● Alarm limits
The alarm limits are configured in the AssetM block.
Operator controls
Icon Explanation Permission
The alarm limits are enabled or disabled by selecting the check
box.
In this display, the alarm limits are disabled.
"Process controlling" for
the diagnostics area
A pulse is output at the block by clicking this icon. This pulse
can be processed further, for example, to reset the counter
value at the following technological block (counter).
Operator control and monitoring
6.11 Faceplate
Maintenance Station
Function Manual, 03/2016, A5E36187641-AA 179
