6.5.2 Configuring Axes
Procedure
To insert an axis with the axis wizard and to interconnect with drive and encoder, proceed as
follows:
1. Navigate to the AXES folder in the project navigator and open this folder with a double-click.
2. Select Insert axis.
The Insert axis dialog opens.

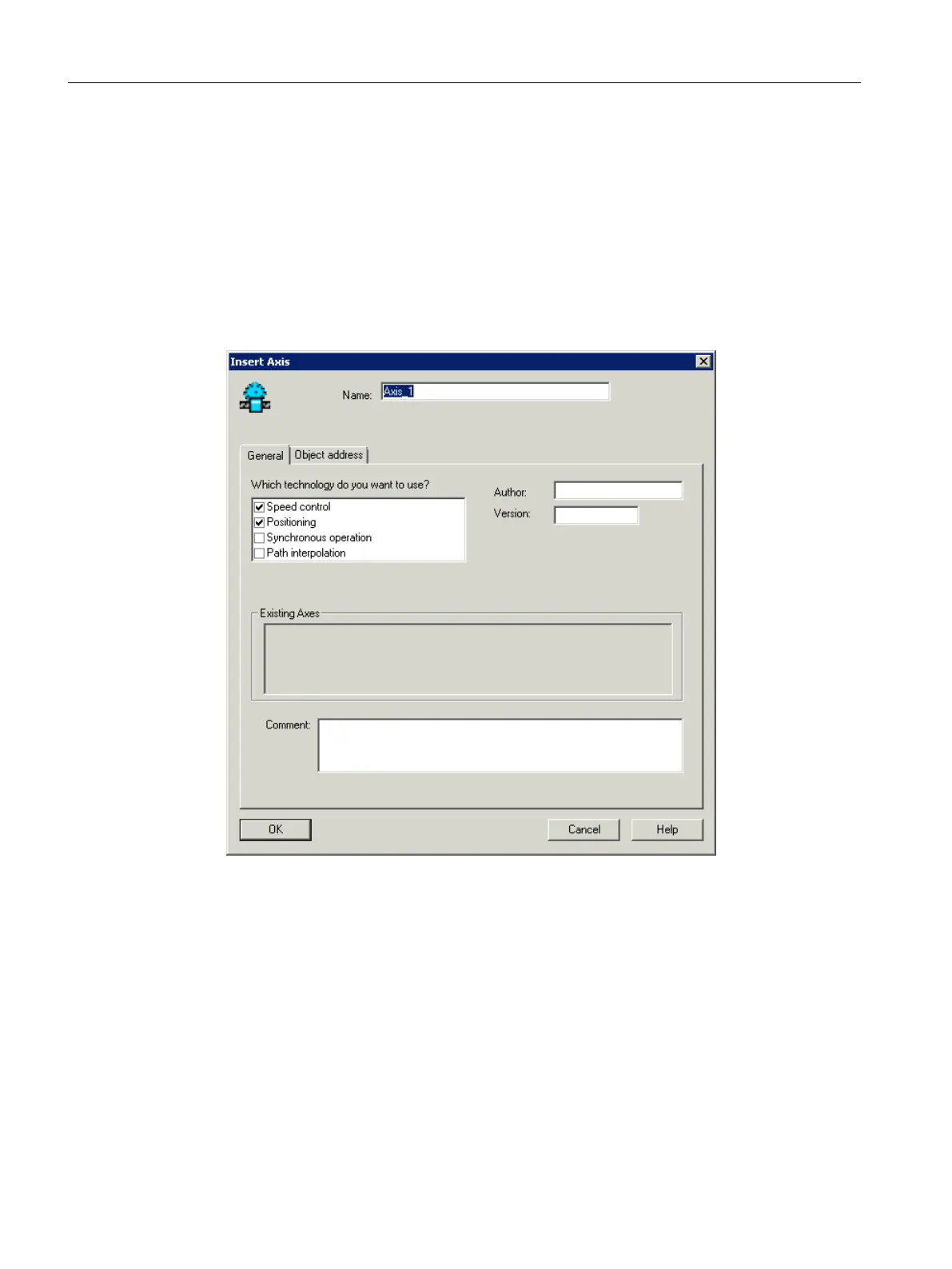

Figure 6-19 Creating an axis
3. Name the axis and select the axis technology that you want to use.
Note here that the Positioning technology always requires the Speed control technology.
Thus, this technology cannot be deactivated.
Configuring/parameterizing
6.5 Creating and testing an axis
