5.3.5 Wizards for configuration support
Wizards are provided to assist you in configuring axes and external encoders. The wizards
guide you step-by-step through the configuration. Parameter interdependencies are taken into
account.

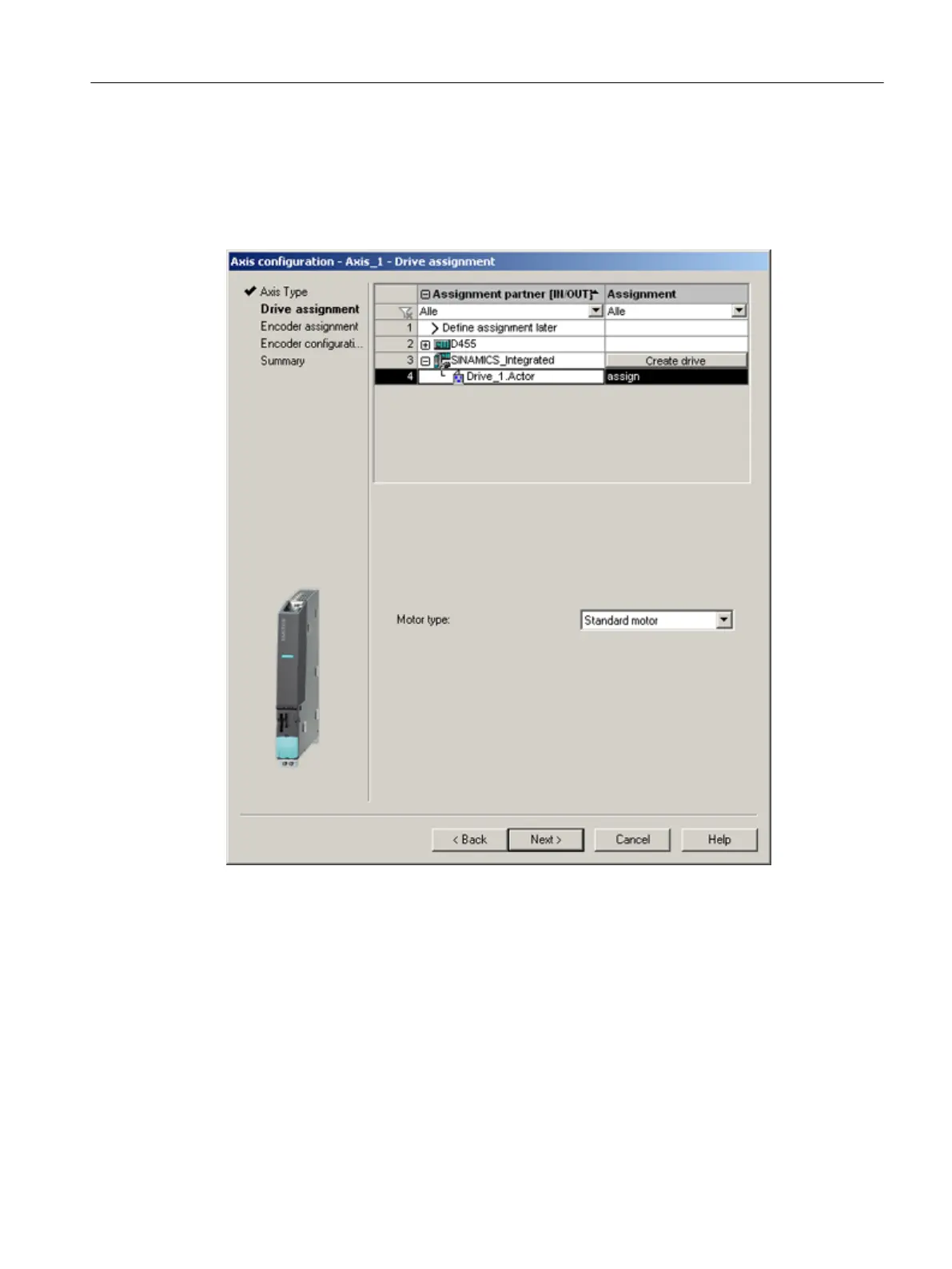

Figure 5-1 Axis configuration wizard - window for drive assignment
5.4 SIMOTION SCOUT - menus
SIMOTION SCOUT menus are subdivided into static and dynamic menus.
Static menu
Static menus are primarily used to control the workbench or a project and are permanently
displayed.
User interface
5.4 SIMOTION SCOUT - menus
SIMOTION SCOUT
Configuration Manual, 11/2016 41
