● SIMOTION SCOUT Online Help
●
Overview of Service and Diagnostics Options
, Product Information
9.2 Using the diagnostics overview
The diagnostics overview is available as a tab in the detail view when the project is in online
mode.
● In the detail view, select the Diagnostics overview tab.

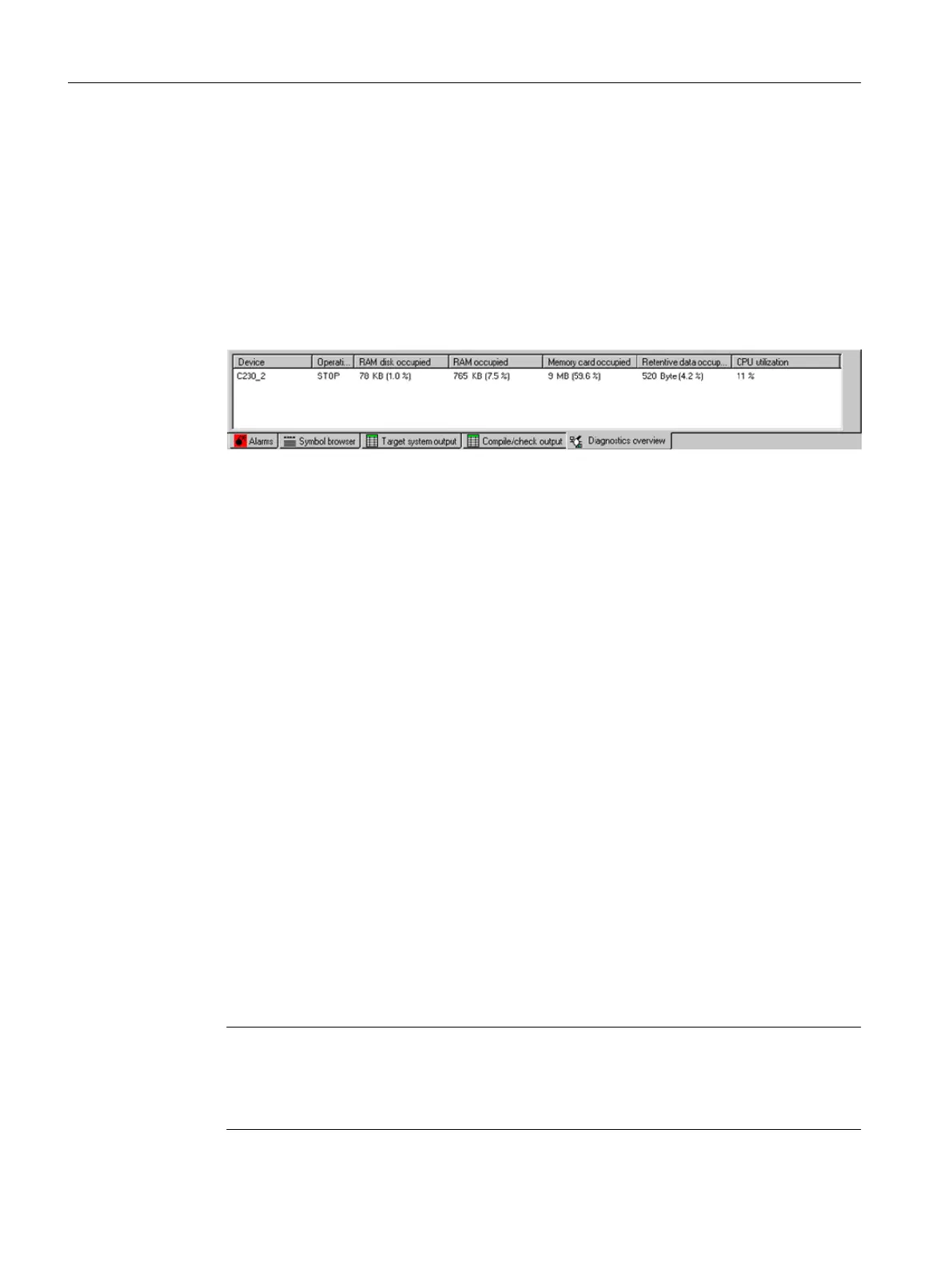

Figure 9-1 Diagnostics overview in the detail view (online mode)
The following are displayed for each accessible SIMOTION device:
● Operating mode
● Memory used (absolute and percentage display)
RAM disk, RAM, memory card, retentive data
● CPU utilization (percentage display)
The drive devices specified in the hardware configuration are also displayed. To obtain a
detailed display of the individual devices, open the device diagnostics.
9.3 Device diagnostics
9.3.1 Device diagnostics
In online mode, the device diagnostics function enables you to obtain a comprehensive display
of diagnostics results of the individual SIMOTION devices.
Proceed as follows:
1. Select the desired SIMOTION device in the project navigator.
2. Select the Target system > Device diagnostics... menu.
or
1. Double-click the SIMOTION device in the Diagnostics overview tab in the detail view.
Note
You may open the device diagnostics for several SIMOTION devices simultaneously. This
allows you to compare different devices.
You can also access these device diagnostics via the Accessible nodes function.
Diagnostics
9.3 Device diagnostics
SIMOTION SCOUT
174 Configuration Manual, 11/2016
