Additional references
Further information on this topic can be found in:
● Function Manual: SIMOTION Basic Functions
● SIMOTION SCOUT Online Help
9.6 Service Overview
In online mode, the service overview shows a tabular complete overview of all configured axes
in the project. The current state (including values from system variables) is displayed along
with fault conditions.
The service overview is called up via the Target system > Service overview menu.

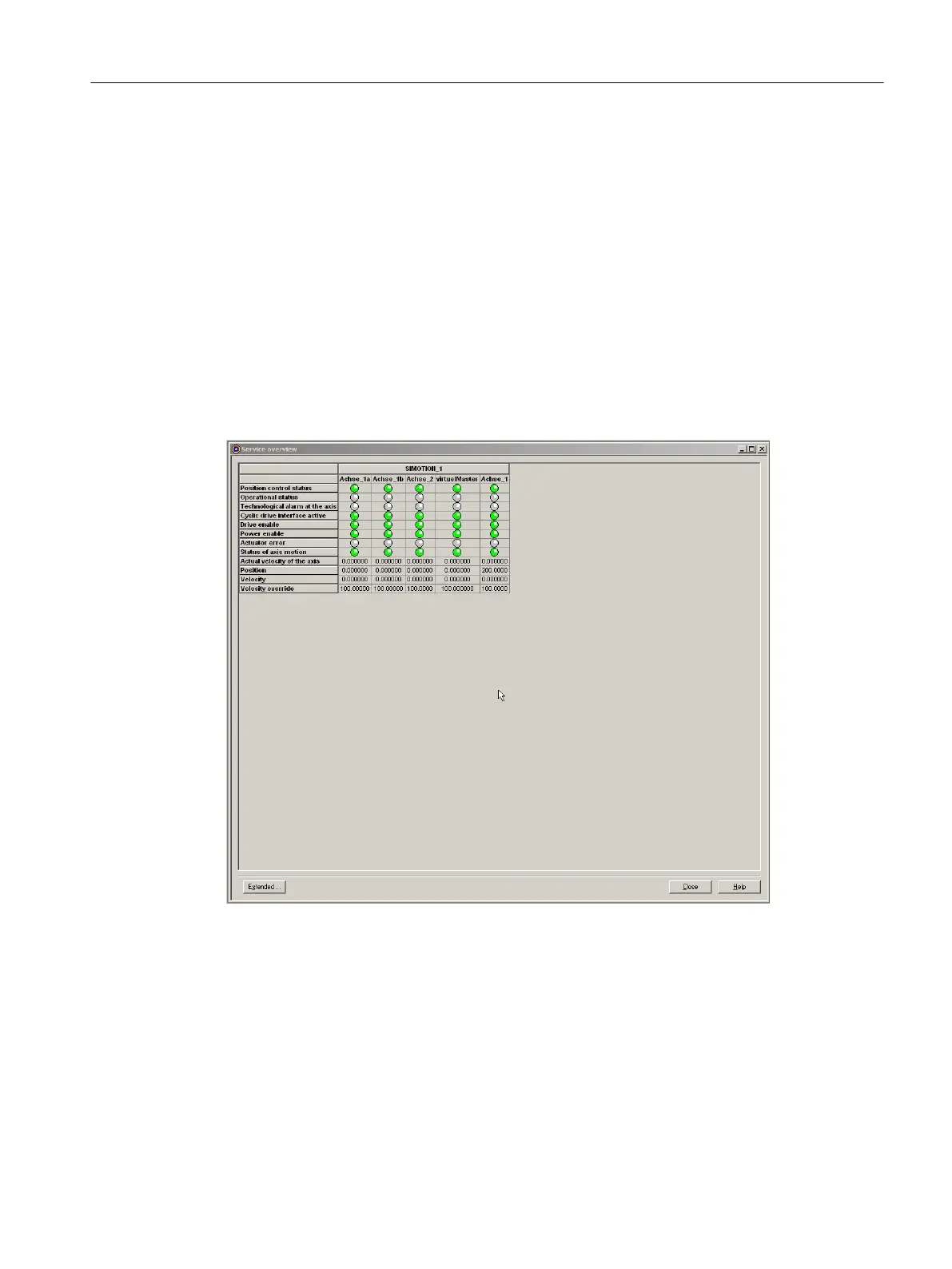

Figure 9-12 Service Overview
Diagnostics
9.6 Service Overview
SIMOTION SCOUT
Configuration Manual, 11/2016 187
