6.4 Configuring devices
6.4.1 Adding a SIMOTION device
You have created a project in SIMOTION SCOUT. The project navigator on the left of the
SIMOTION SCOUT workbench is open. To insert a device, double-click the Insert SIMOTION
device entry below the name of your project in the project navigator. The following dialog opens:

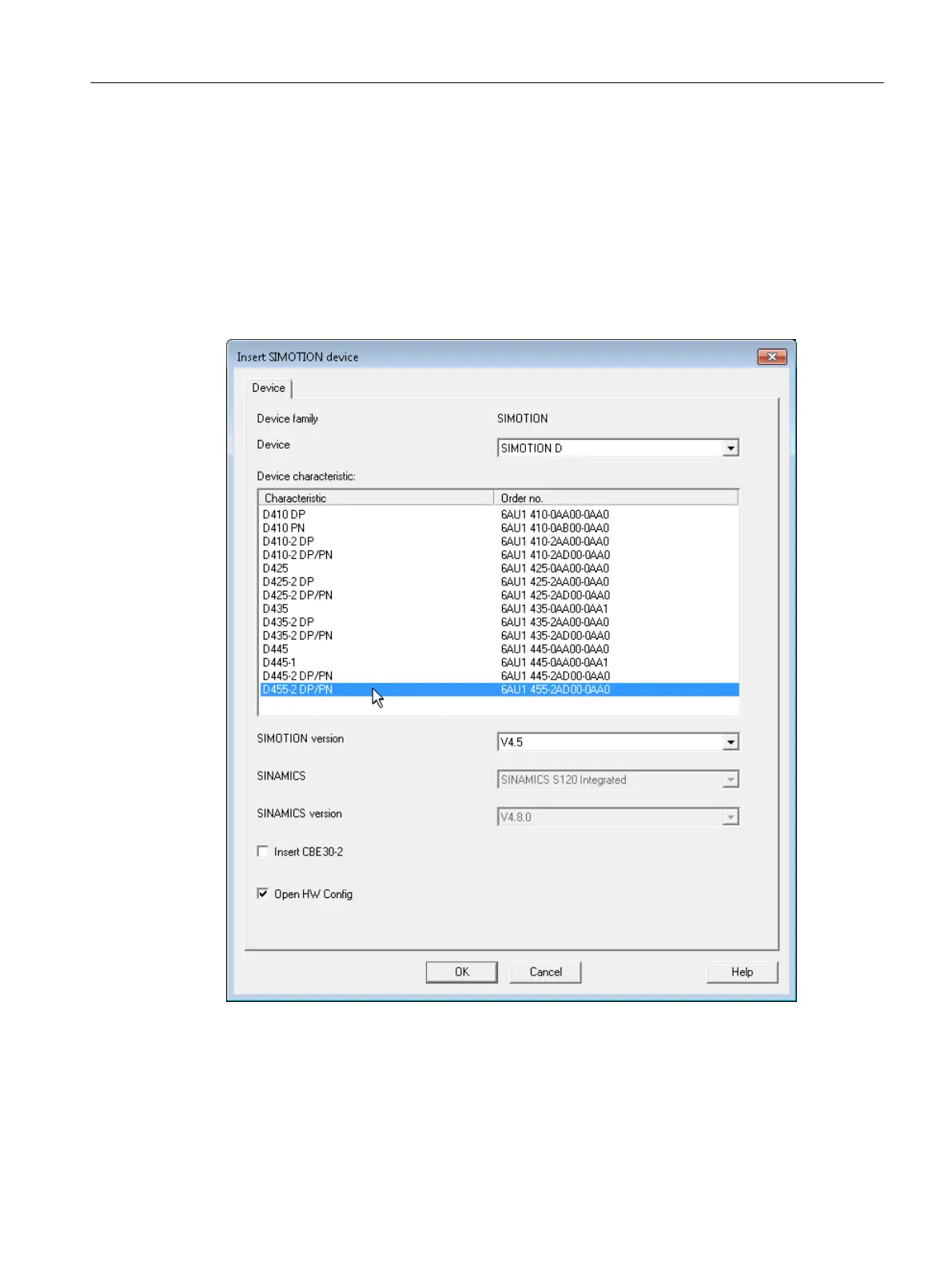

Figure 6-6 Insert SIMOTION device
Select the device platform you are working with at Device. The characteristics of the relevant
platform then appear under Device characteristic.
Configuring/parameterizing
6.4 Configuring devices
SIMOTION SCOUT
Configuration Manual, 11/2016 77
