9.3.6 Device diagnostics: Checking the system utilization
To display the system utilization:
● Select the System Utilization tab in the device diagnostics.

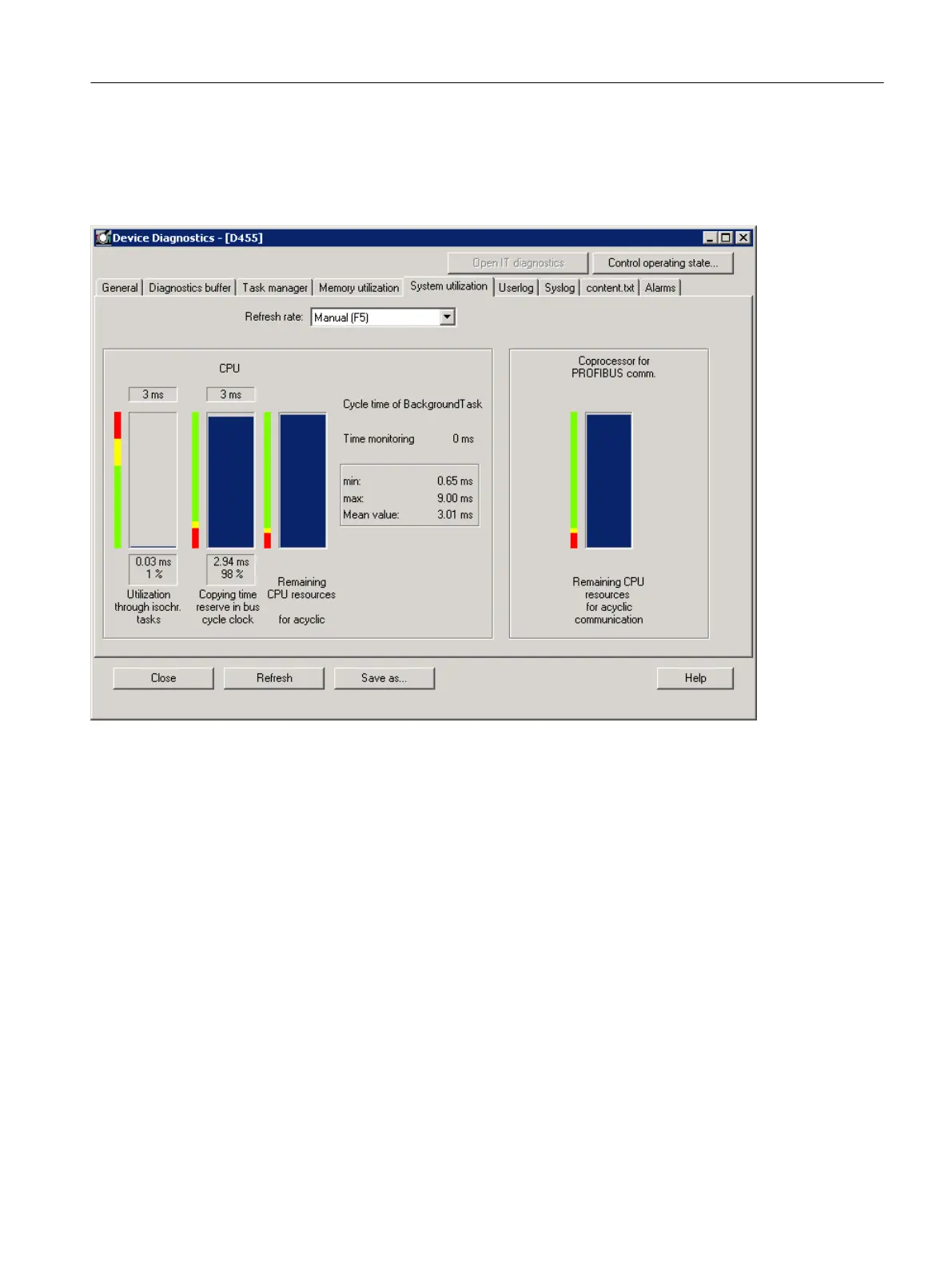

Figure 9-6 Example of the system utilization display in the device diagnostics
Additional references
Further information on this topic can be found in:
● The Function Manual "SIMOTION Basic Functions", in the chapter "Overview of Memory
in Target Device"
● SIMOTION SCOUT Online Help
Diagnostics
9.3 Device diagnostics
SIMOTION SCOUT
Configuration Manual, 11/2016 181
