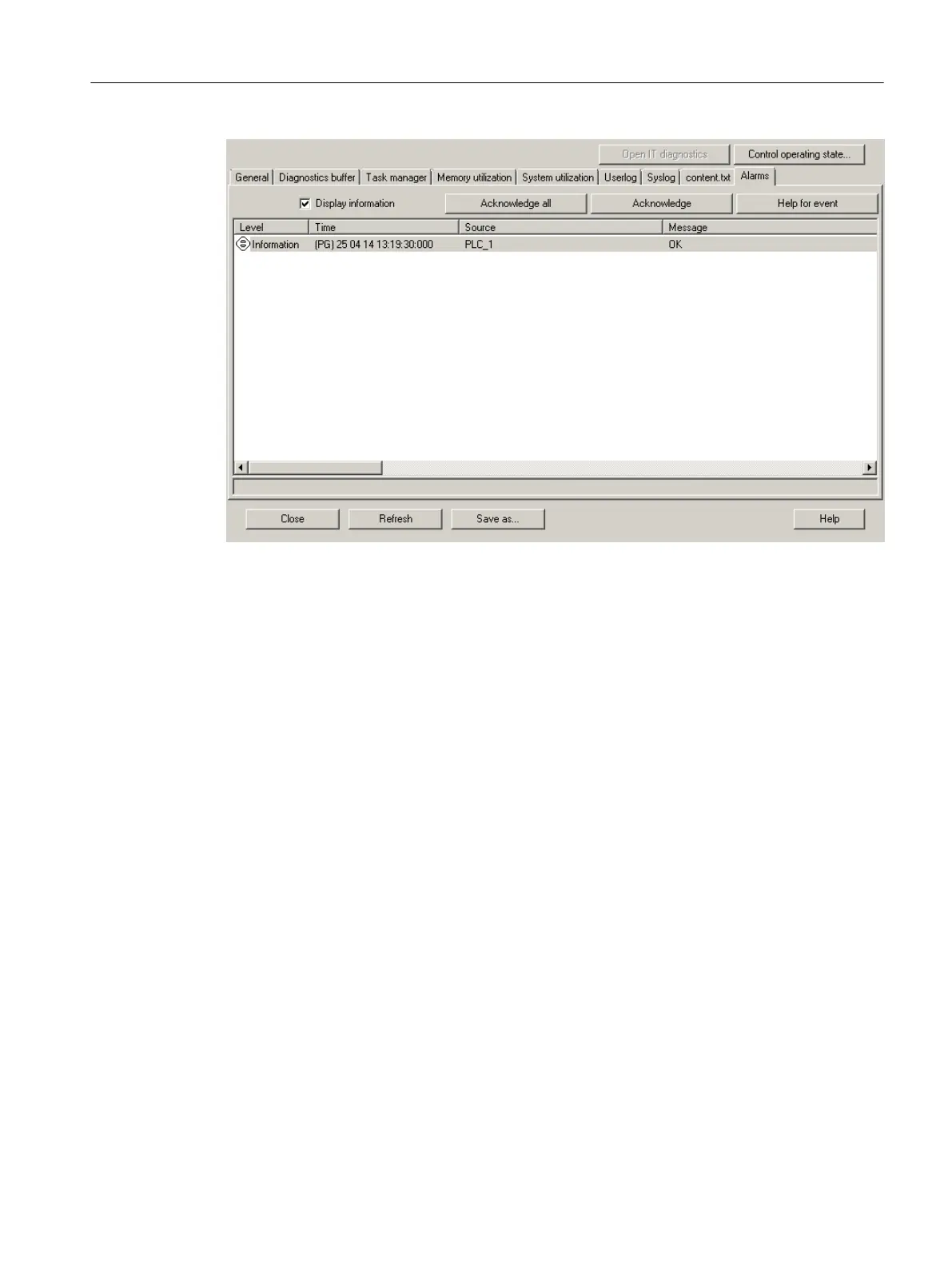

Figure 9-10 Device diagnostics - Alarms
9.4 Diagnostic functions in the address list
As of SIMOTION V4.2, the address list offers extended functions for I/O diagnostics. In online
mode, the information is displayed in the Availability column. You can access more detailed
information via a tool tip if you move the cursor over the relevant cell.
To open the address list:
1. Browse to the folder for your device in the project navigator.
2. Double-click the ADDRESS LIST entry.
The address list opens in the detail area.
The summary contains the following diagnostic information:
● I/O stations which have failed completely
● Modules have been removed (e.g. for ET200S).
● Deactivated I/O stations
● I/O variables working with replacement values
● I/O stations whose set topology differs from the actual topology
● I/O stations configured to be isochronous are not isochronous
– Distributed synchronous operation
– Drive units
– Isochronous I/O
Diagnostics
9.4 Diagnostic functions in the address list
SIMOTION SCOUT
Configuration Manual, 11/2016 185
