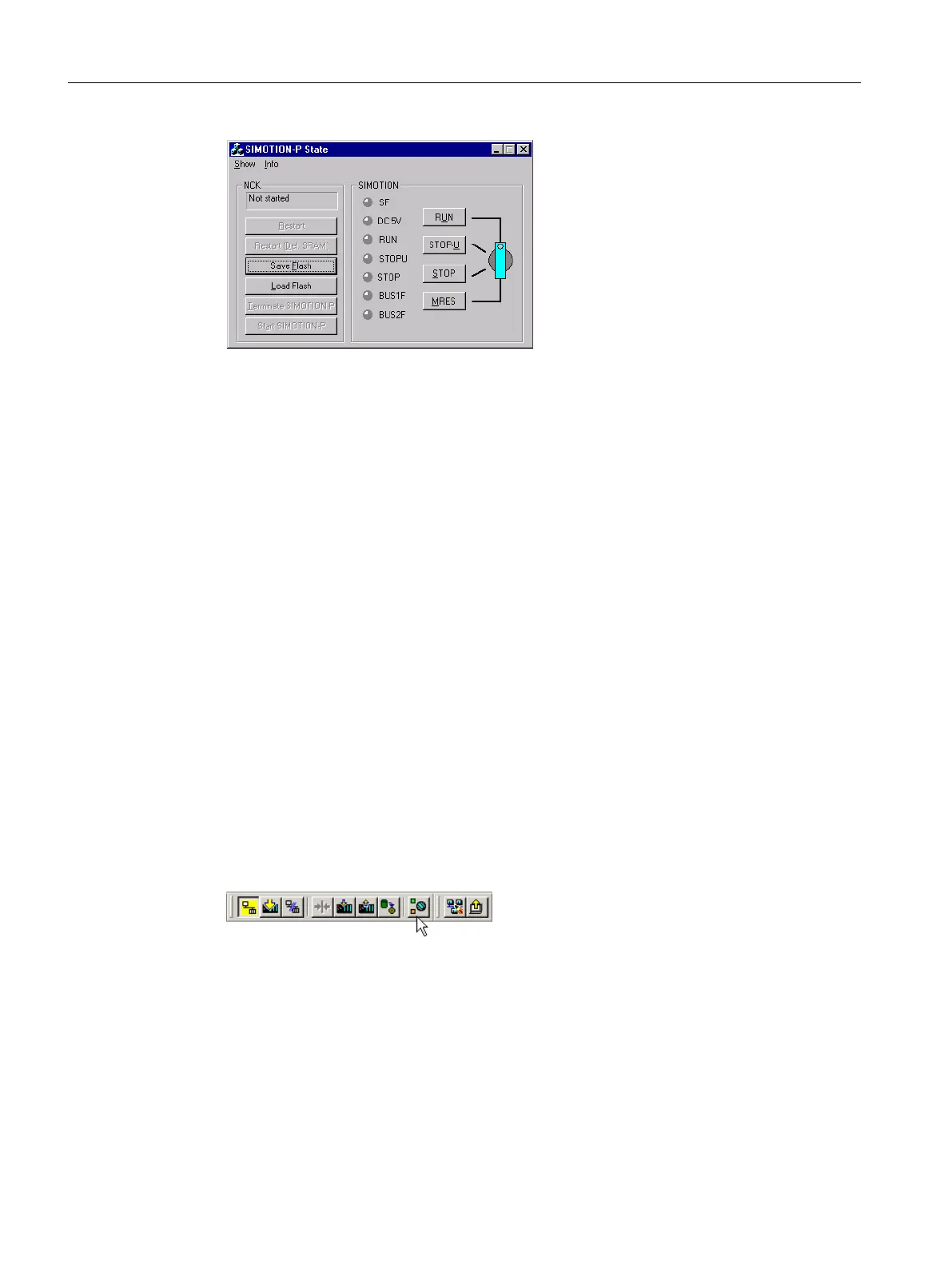

Figure 7-8 SIMOTION P state application
Additional references
Please refer to the following documents on this subject
SIMOTION D4x5
Commissioning and Hardware Installation Manual
SIMOTION D4x5-2
Commissioning and Hardware Installation Manual
SIMOTION D410
Commissioning Manual
SIMOTION D410-2
Commissioning and Hardware Installation Manual
SIMOTION P320-4 E / P320-4 S
Commissioning and Hardware Installation Manual
SIMOTION C
Operating Instructions
and the SIMOTION SCOUT online help.
7.4 Overall reset
The SIMOTION device for which overall reset is to be carried out must be online.
Proceed as follows:
1. Open the Control Operating State dialog. Select the Target system > Control operating
state menu command. Or click on Control Operating State in the toolbar.
The call is possible if at least one CPU of the project is in online mode.
2. Switch the SIMOTION device for which overall reset is to be carried out to STOP in the
Control Operating State dialog.
3. Select the SIMOTION device under Overall reset (MRES). Click the Execute switch. Click
Yes to confirm the safety prompt.
The overall reset will now be performed.
Target system
7.4 Overall reset
SIMOTION SCOUT
160 Configuration Manual, 11/2016
